Main function

The motor is connected with linkage which controls the air recirculation flap. The flap regulates air flow to the fan so that the air is retrieved from outside the cabin or from inside the cabin; there is no intermediate setting.

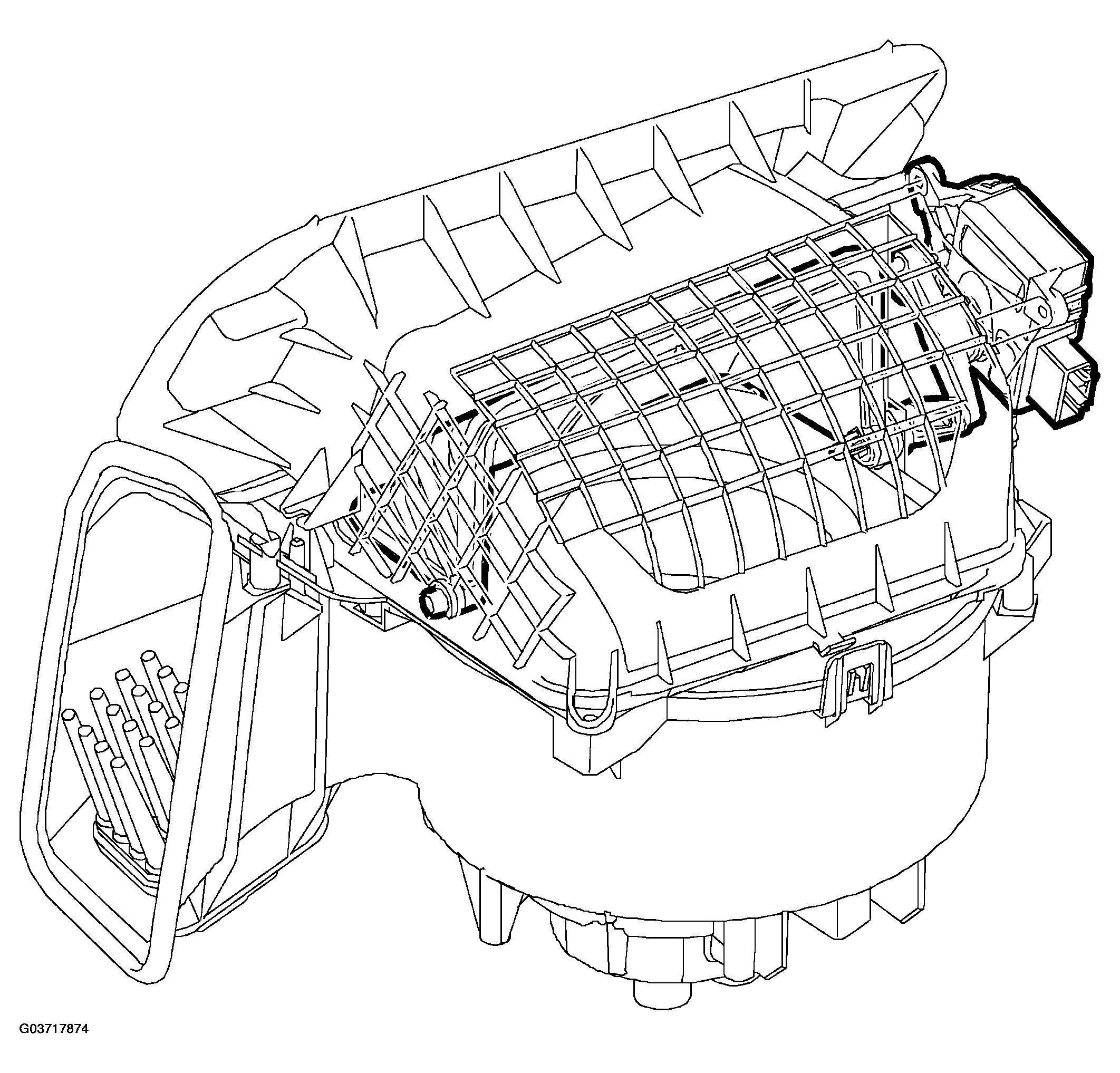

Fig 1: Locating Air Recirculation Flap Motor, MCC

Courtesy of SAAB-SCANIA OF AMERICA, INC.
