Reading lamp (225), CV: Connection

The lamps are grounded from REC. Power is supplied to the lamps from a relay controlled by the BCM. The supply voltage lead passes through BCM and REC on its way out to the lamps. The BCM senses the supply to determine whether the relay is activated.

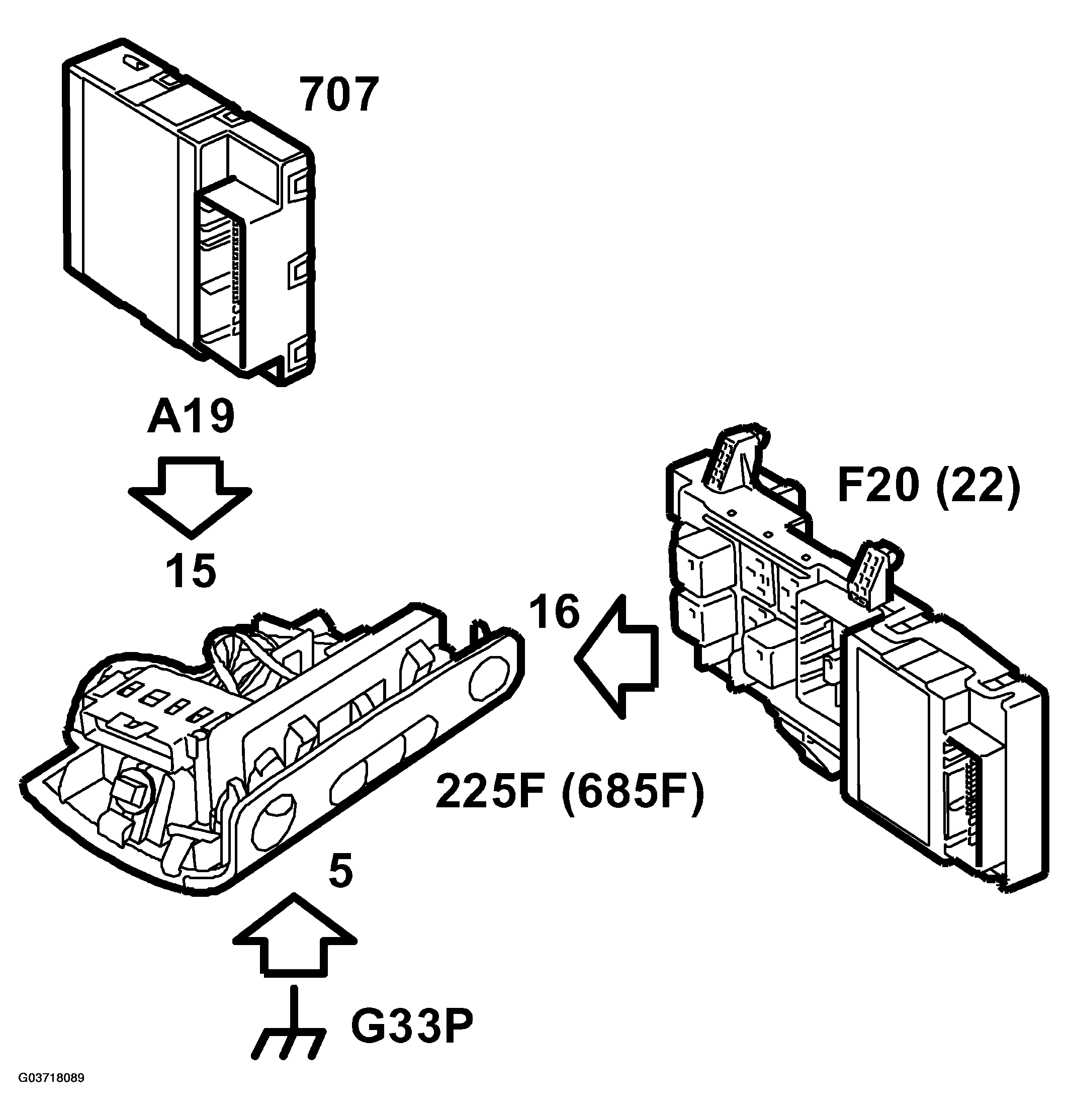

Fig 1: Identifying Relays

Courtesy of SAAB-SCANIA OF AMERICA, INC.

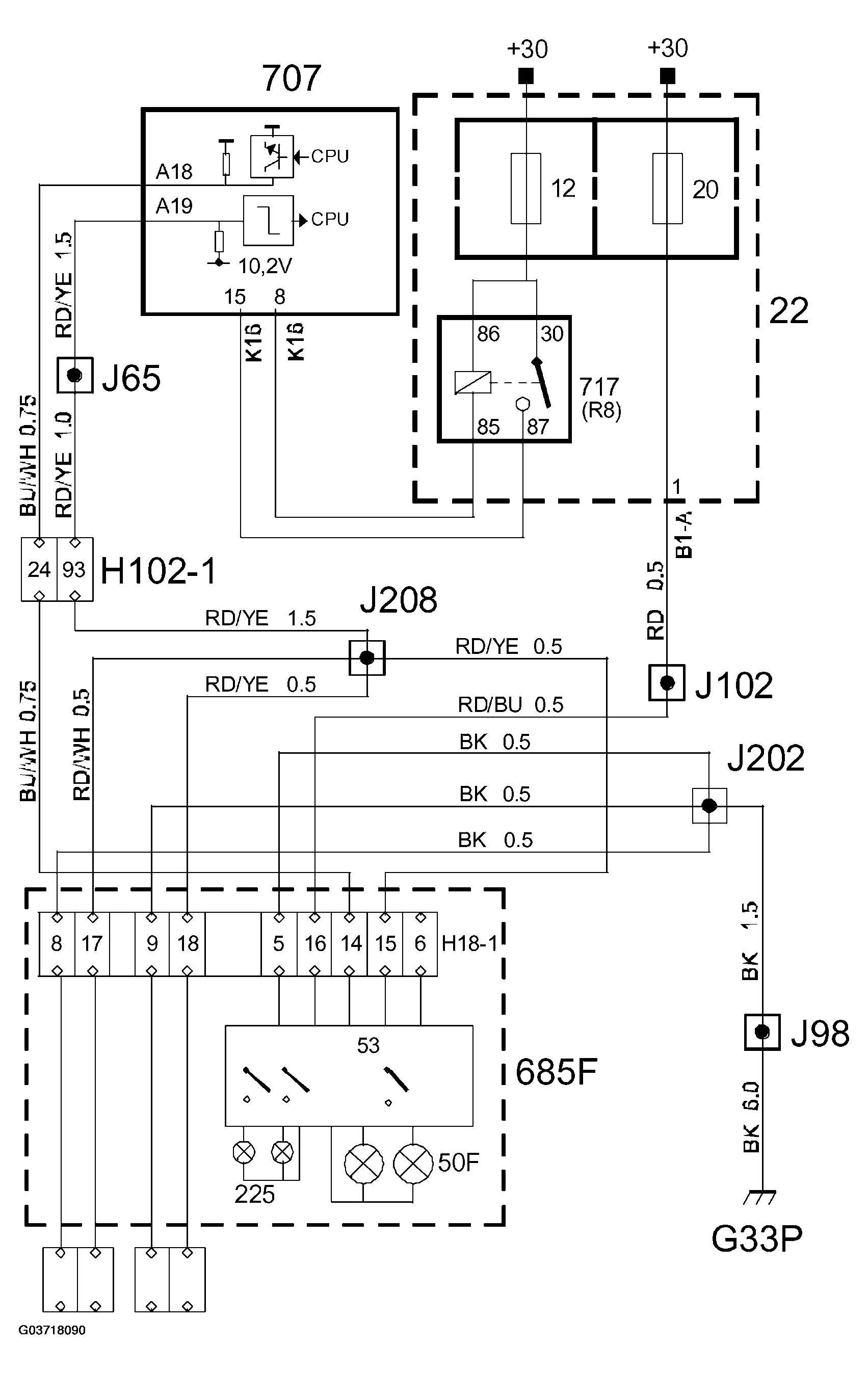

Fig 2: Circuit Diagram Reading Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.
