Rear load angle sensor (704R): Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Ground	Ground from AHL control module pin 10.
5	Power supply	Power supply 5 V, from AHL control module pin 9.
6	Signal	PWM signal with information on sensor status to AHL control module pin 6.

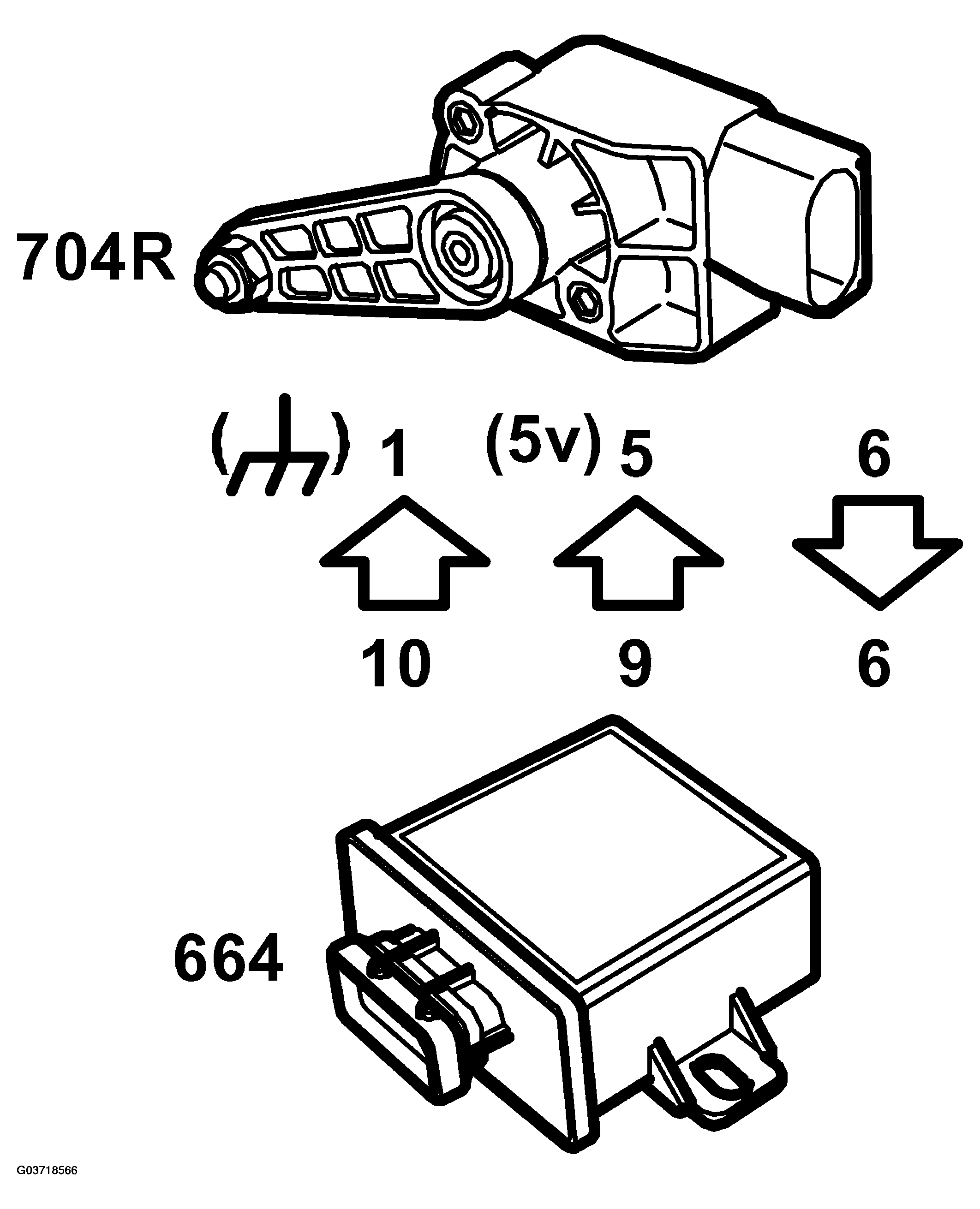

Fig 1: Identifying Communication Flow - Rear Load Angle Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

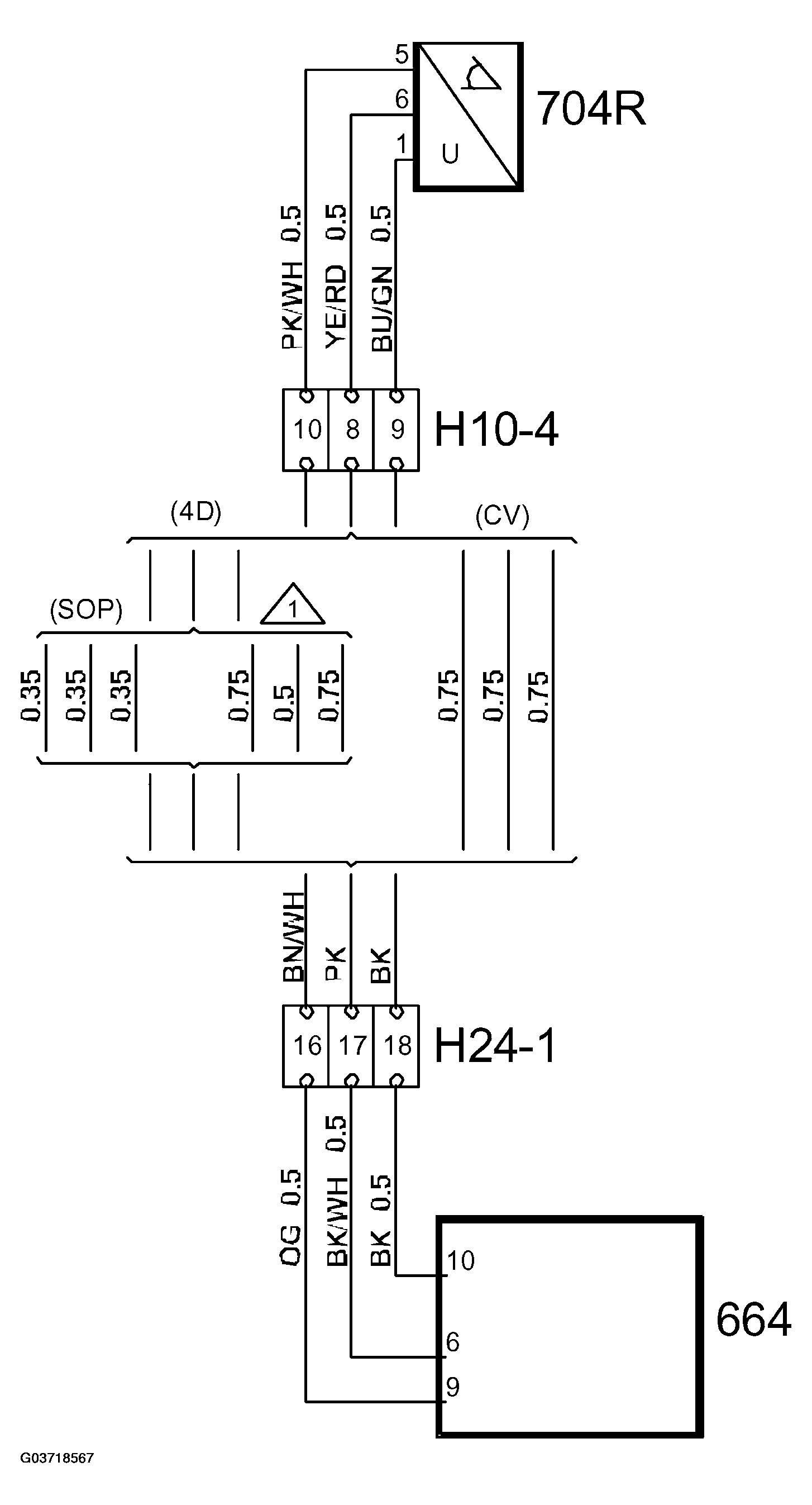

Fig 2: Circuit Diagram - Rear Load Angle Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.
