Speaker (266): Connection

All speakers' connection:

+ to pin 2

- to pin 1

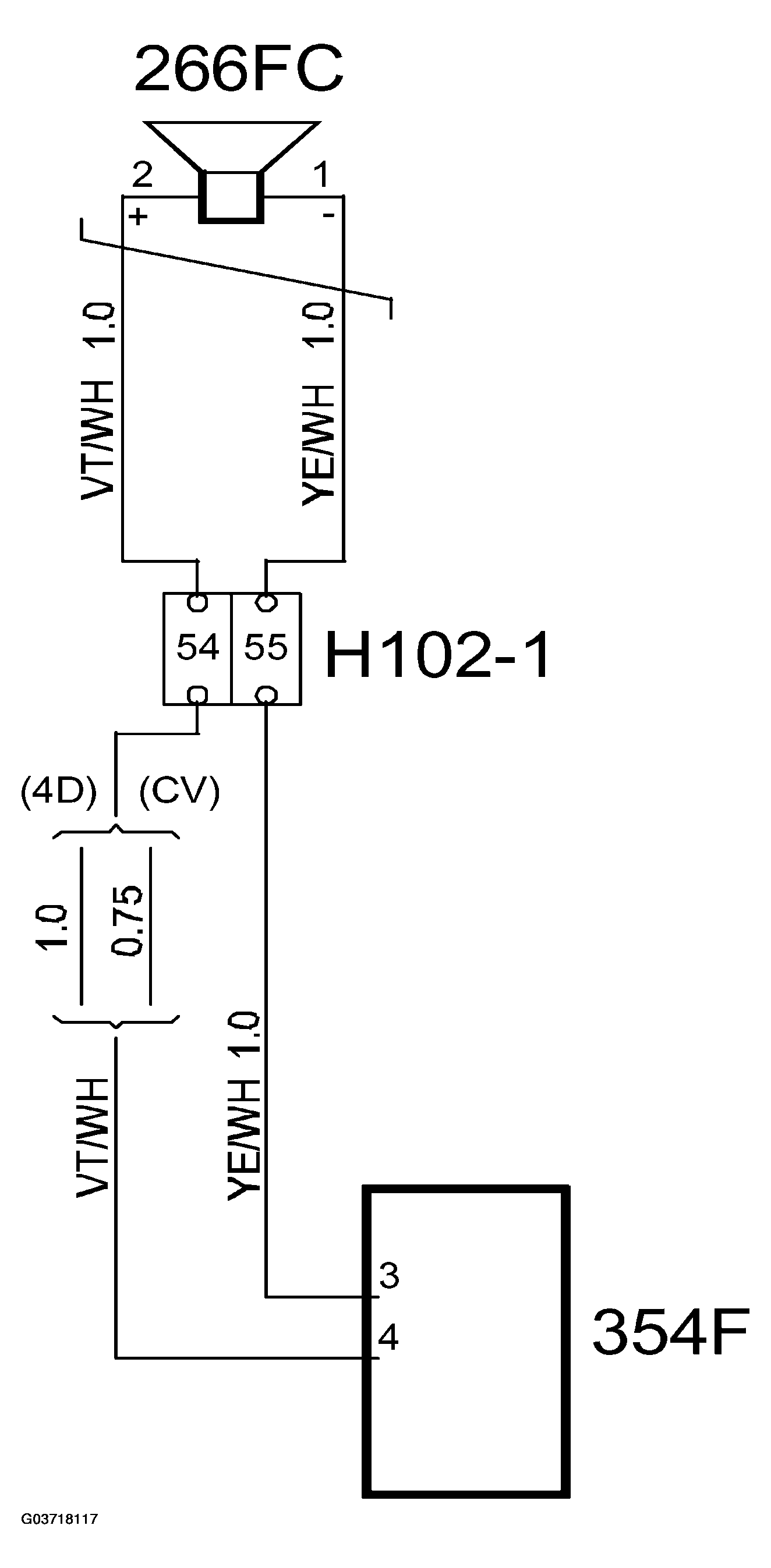

Wiring diagram, power supply, 266FC

Fig 1: Wiring Diagram - Power Supply, 266Fc

G03718117

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Wiring diagram, power supply, 266FL

Fig 2: Wiring Diagram - Power Supply, 266Fl

G03718118

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Wiring diagram, power supply, 266FR

Fig 3: Wiring Diagram - Power Supply, 266Fr

G03718119

Courtesy of SAAB-SCANIA OF AMERICA, INC.

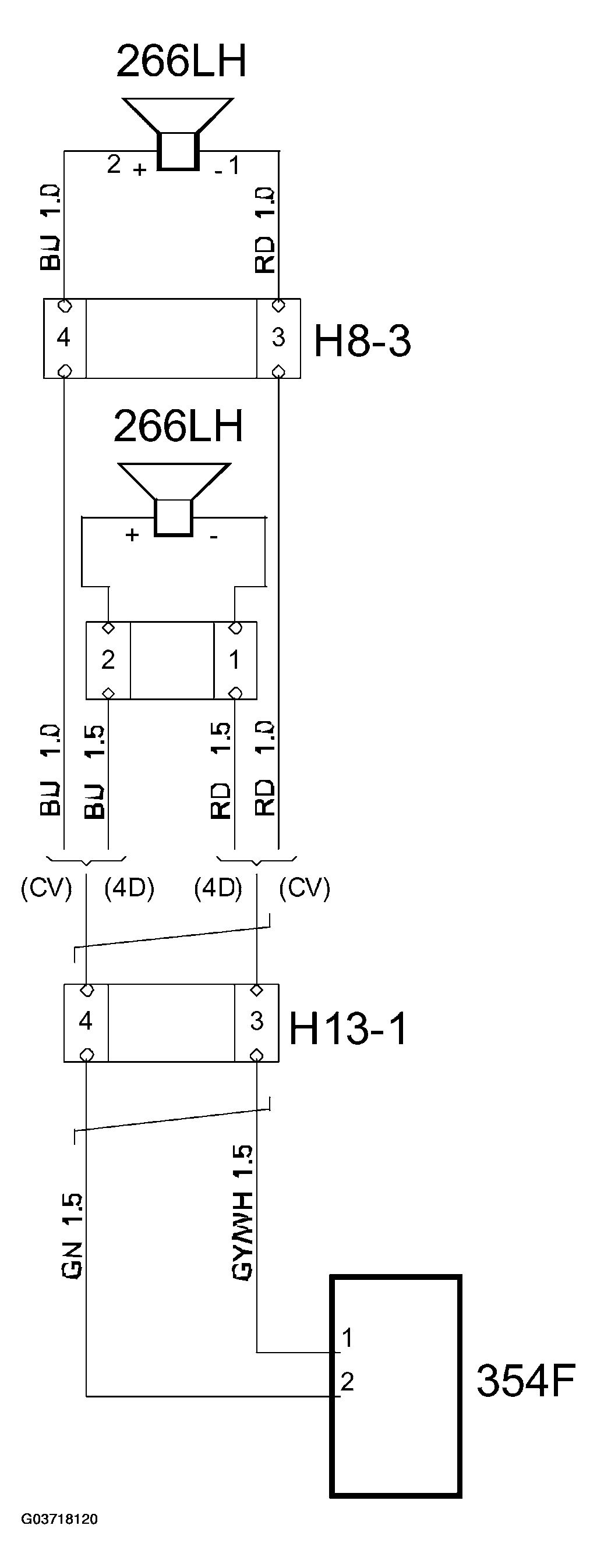

Wiring diagram, power supply, 266LH

Fig 4: Wiring Diagram - Power Supply, 266Lh

G03718120

Courtesy of SAAB-SCANIA OF AMERICA, INC.

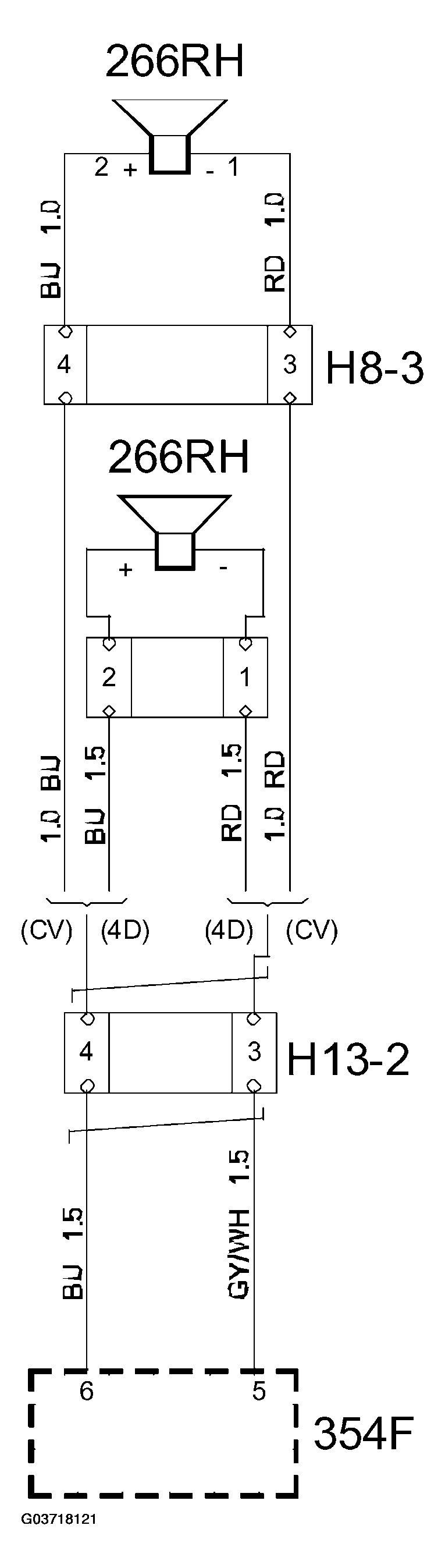

Wiring diagram, power supply, 266RH

Fig 5: Wiring Diagram - Power Supply, 266Rh

G03718121

Courtesy of SAAB-SCANIA OF AMERICA, INC.

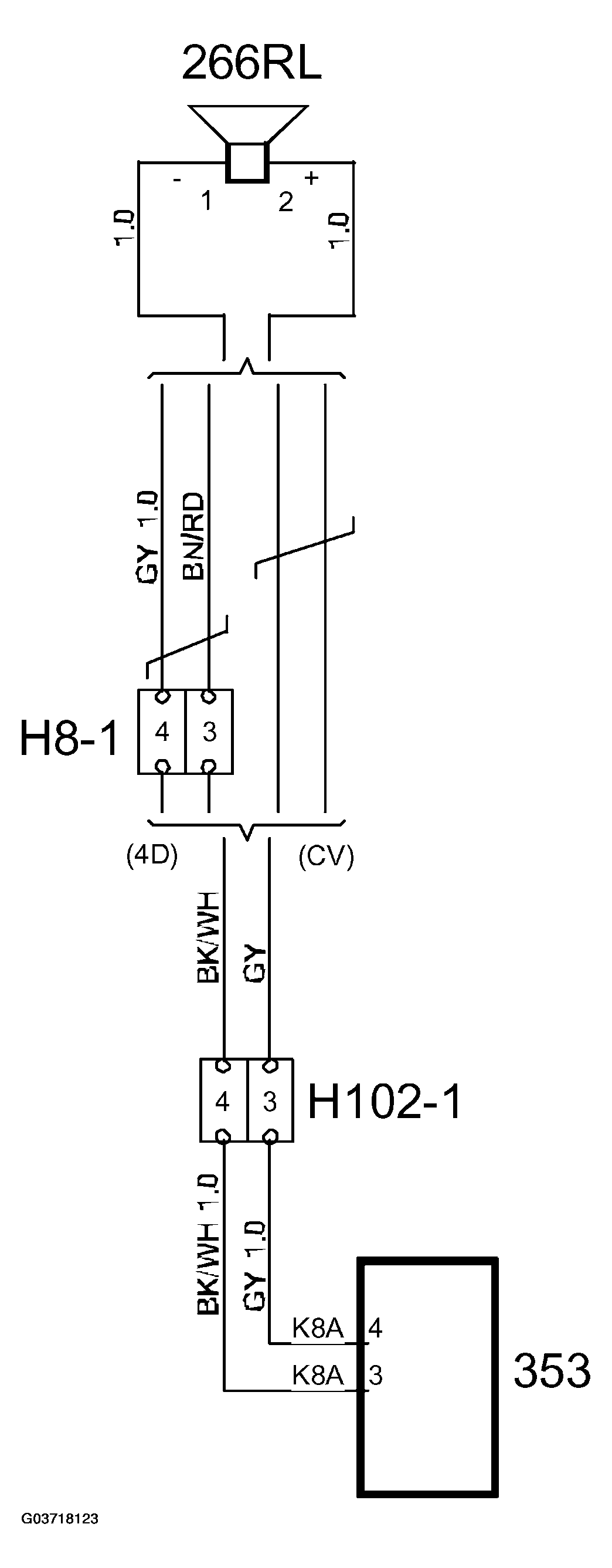

Wiring diagram, power supply, 266RL

Fig 6: Wiring Diagram - Power Supply, 266Rl

G03718122

Courtesy of SAAB-SCANIA OF AMERICA, INC.

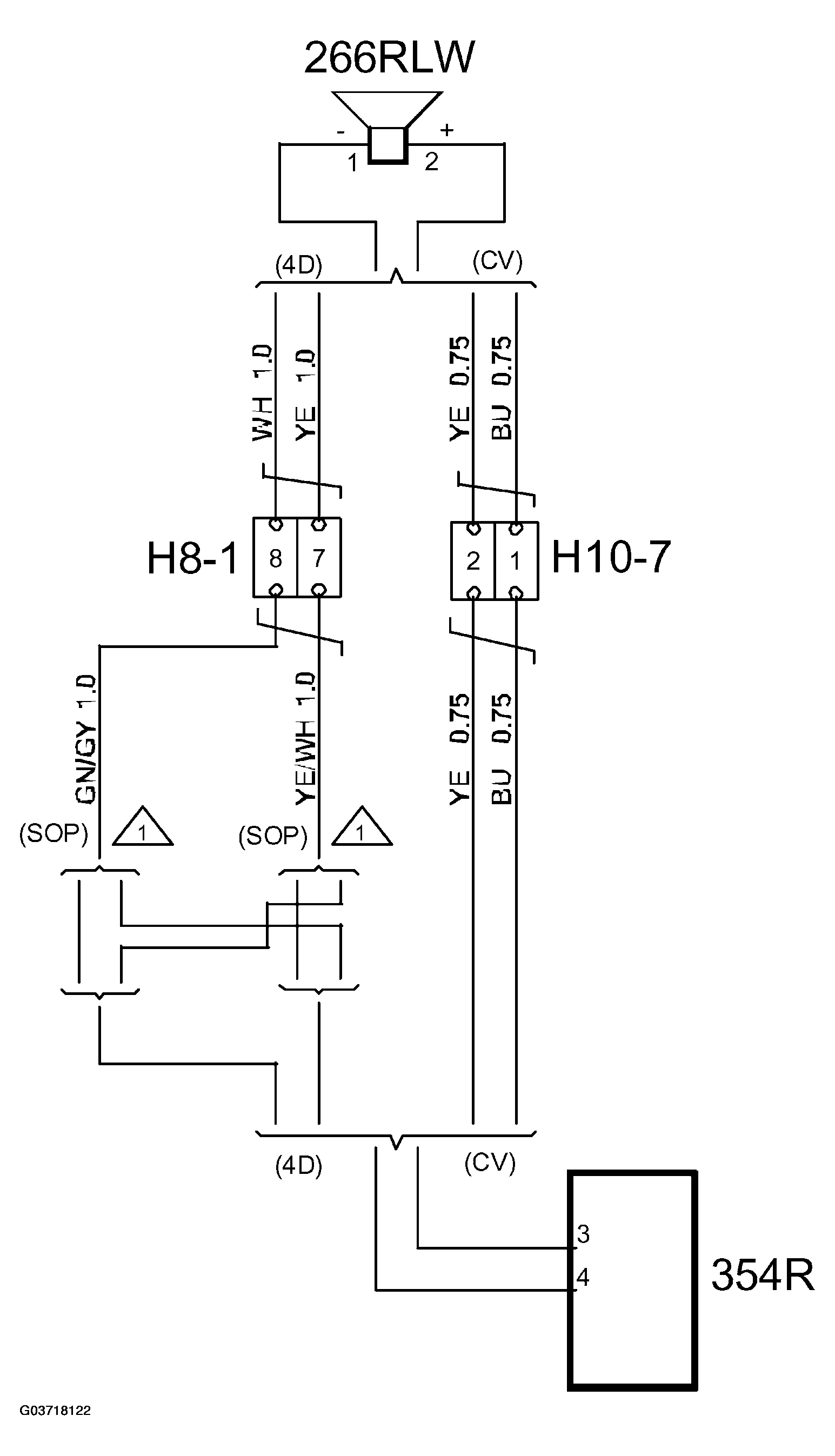

Wiring diagram, power supply, 266RL

Fig 7: Wiring Diagram - Power Supply, 266Rl

G03718123

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Wiring diagram, power supply, 266RR

Fig 8: Wiring Diagram - Power Supply, 266Rr

G03718124

Courtesy of SAAB-SCANIA OF AMERICA, INC.

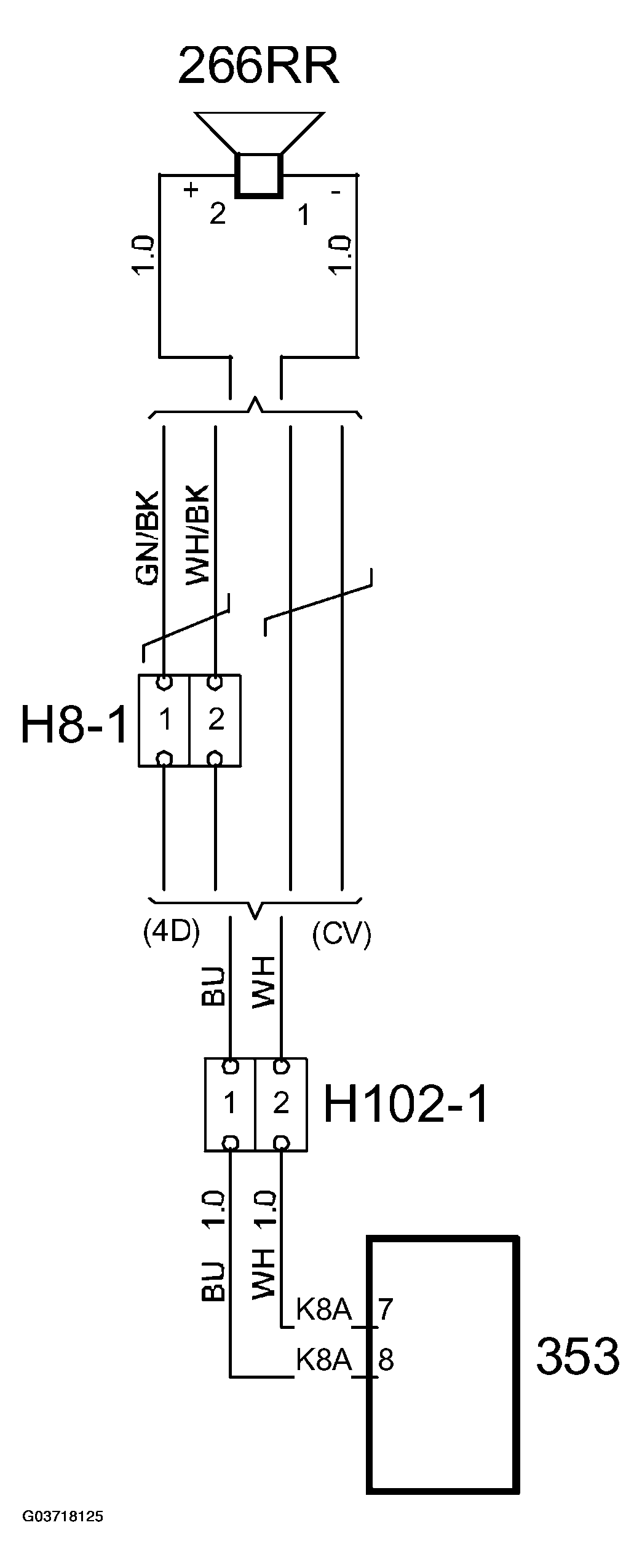

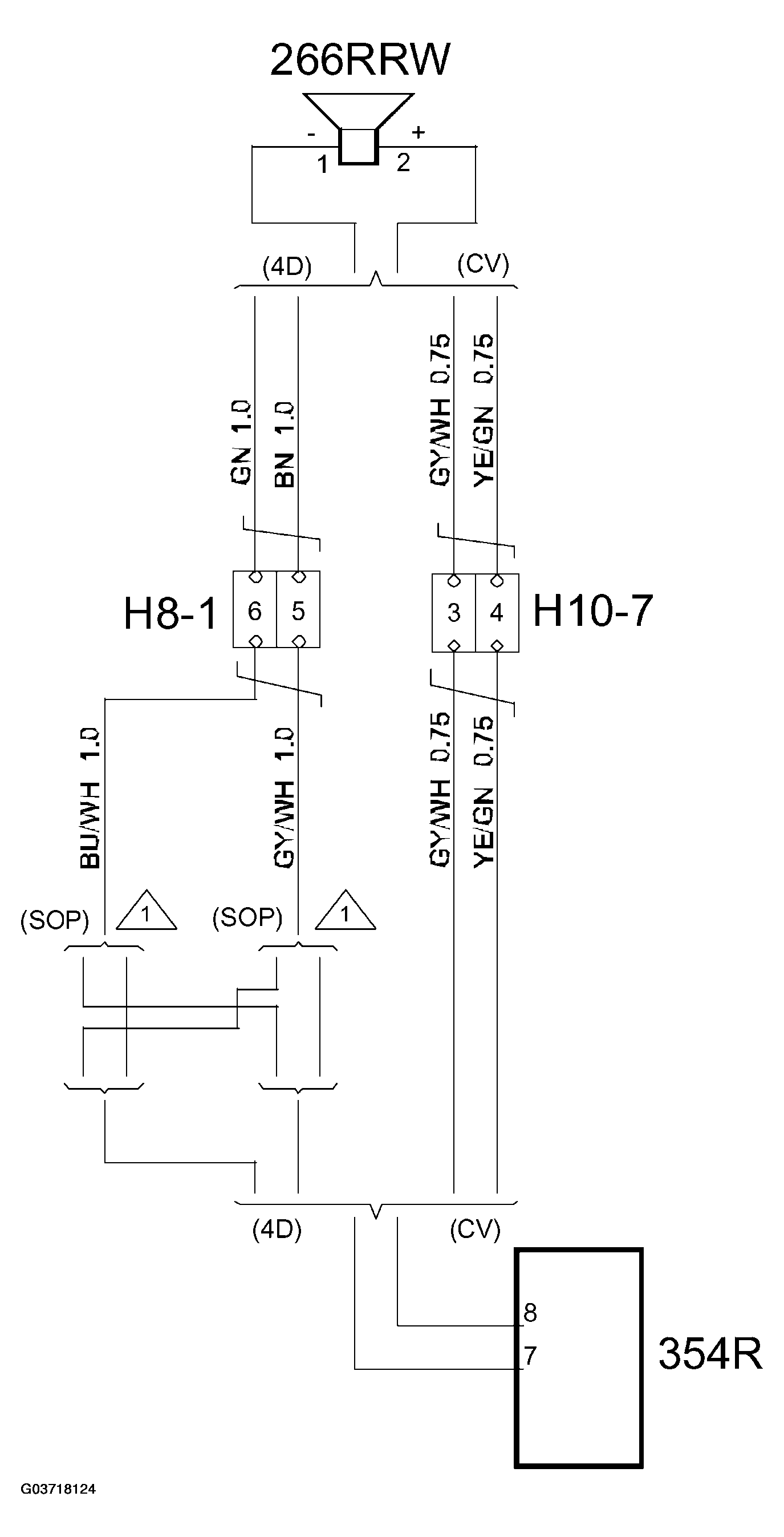

Wiring diagram, power supply, 266RR

Fig 9: Wiring Diagram - Power Supply, 266Rr

G03718125

Courtesy of SAAB-SCANIA OF AMERICA, INC.
