Front assembly: Overview

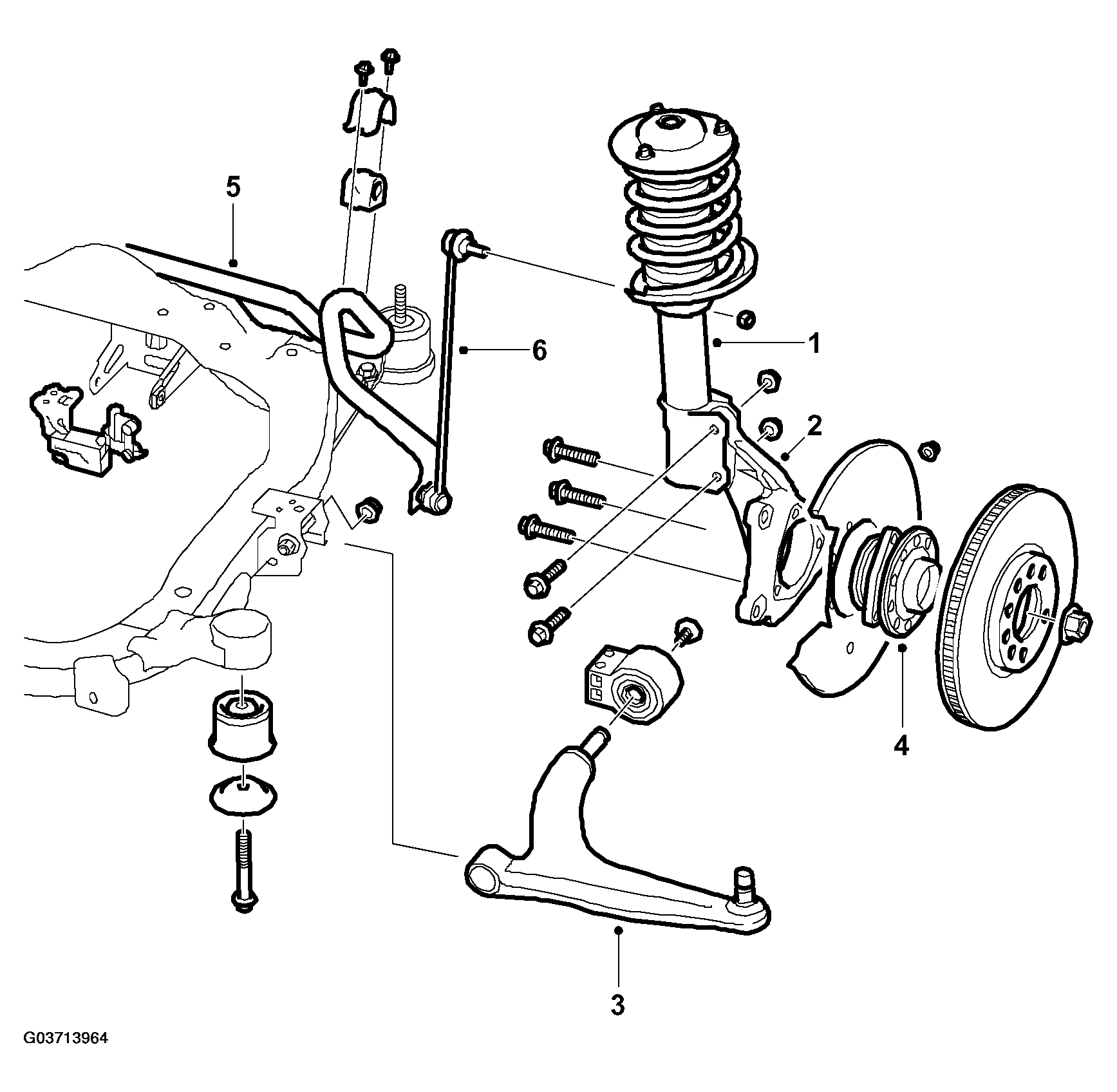

Fig 1: Illustration For Steps 1-6
G03713964Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. MacPherson strut
  2. Steering swivel member
  3. Link arm
  4. Wheel hub
  5. Anti-roll bar
  6. Anti-roll bar rod
