Technical Data
›
TCM electrical components
›
Gear selector control module (726)
›
Control module, TCM (502)
Control module, TCM (502)

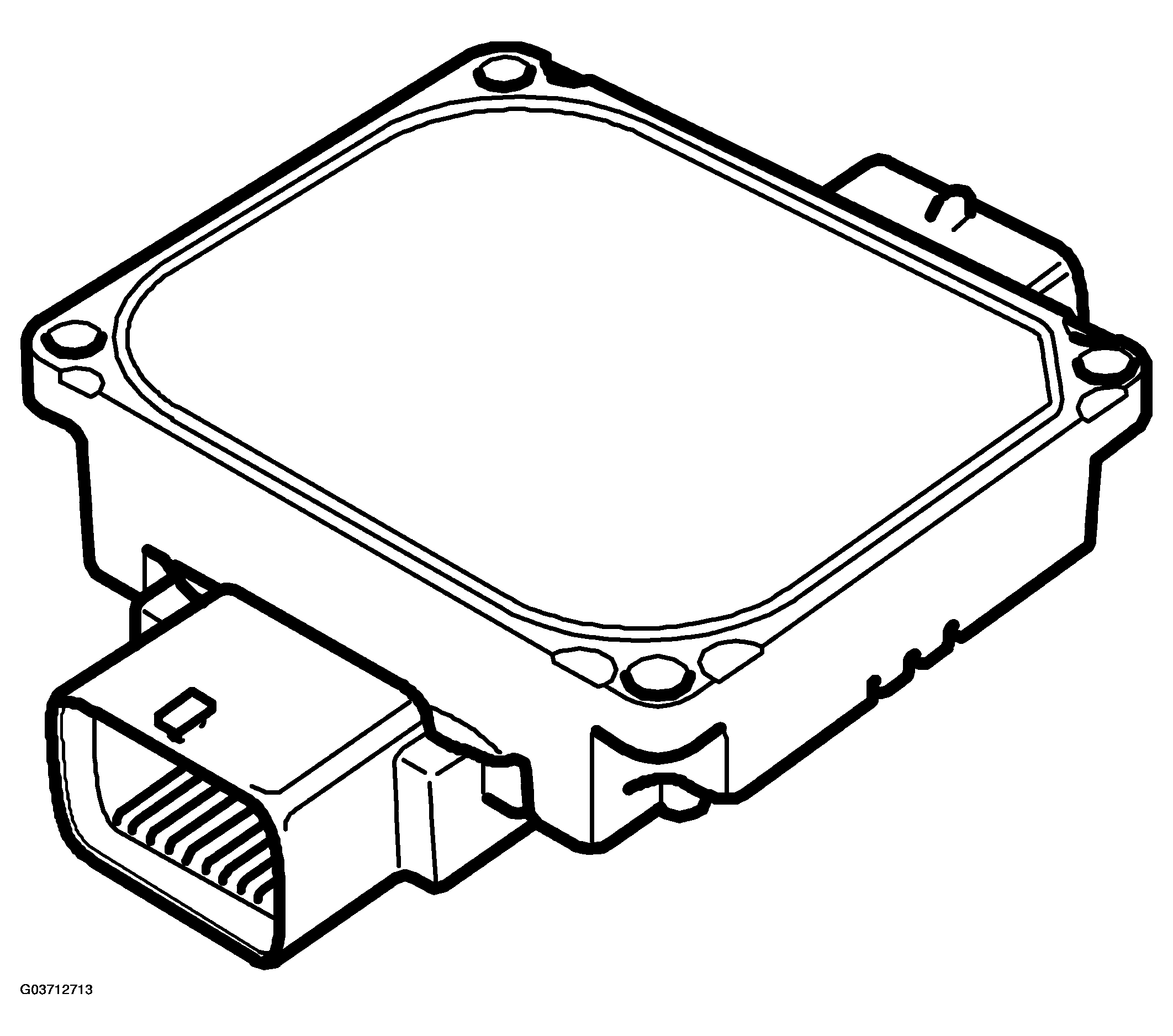

Fig 1: Identifying Control Module, TCM (502)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
CONTROL MODULE POSITION
Type
Microprocessor controlled IO device, working memory and one programmable EEPROM read memory.
