To remove

  1. Retract the soft top.
  2. Remove the head restraint sleeves.
  3. Fold down the backrest.
  4. Remove the backrest cover.
  5. Remove the rear lower cover.
  6. Unplug the heating pad connector.

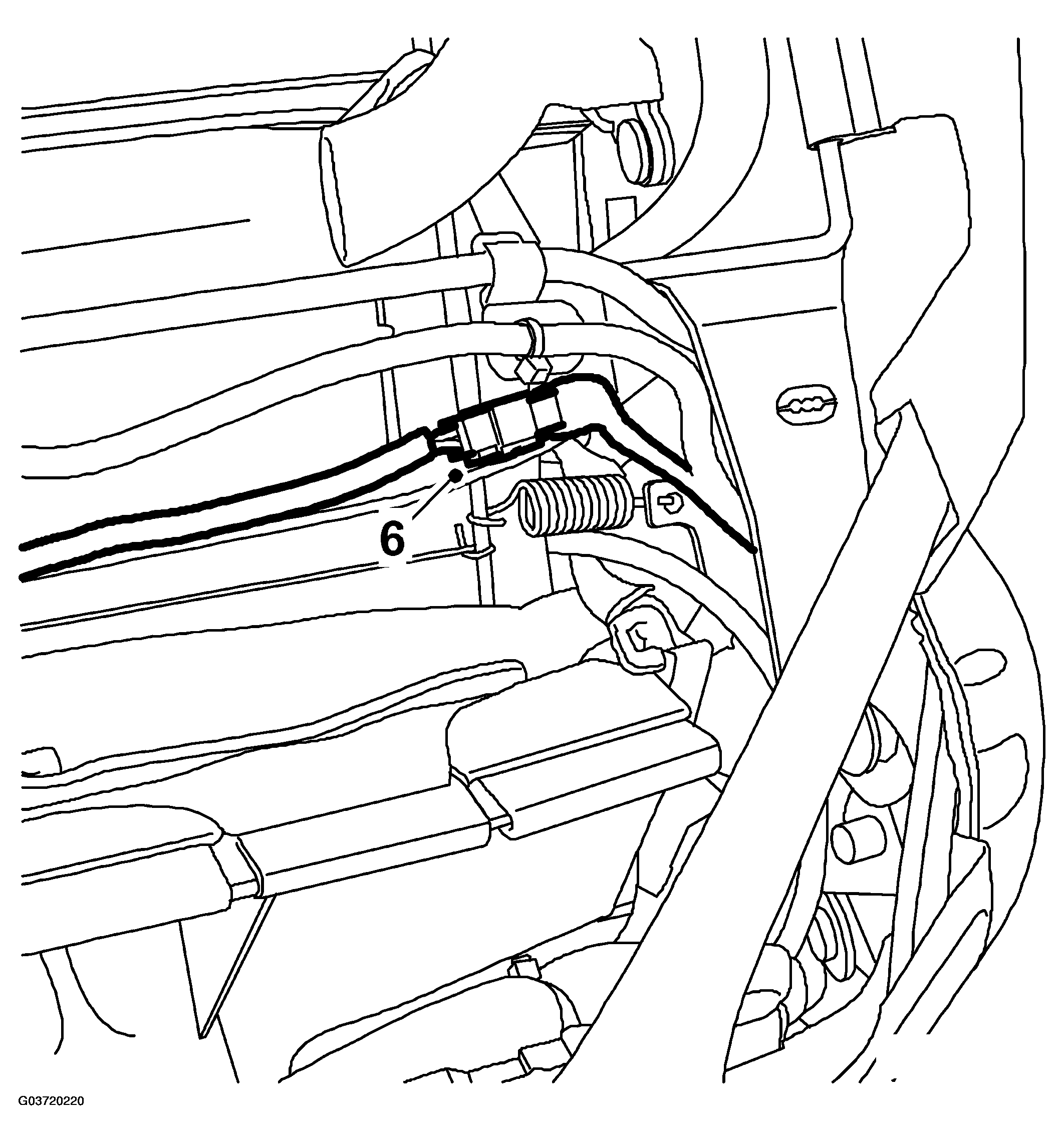

    Fig 1: Illustration For Step 6
    G03720220Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Cut the cable ties securing the straps on the reverse of the upholstery.

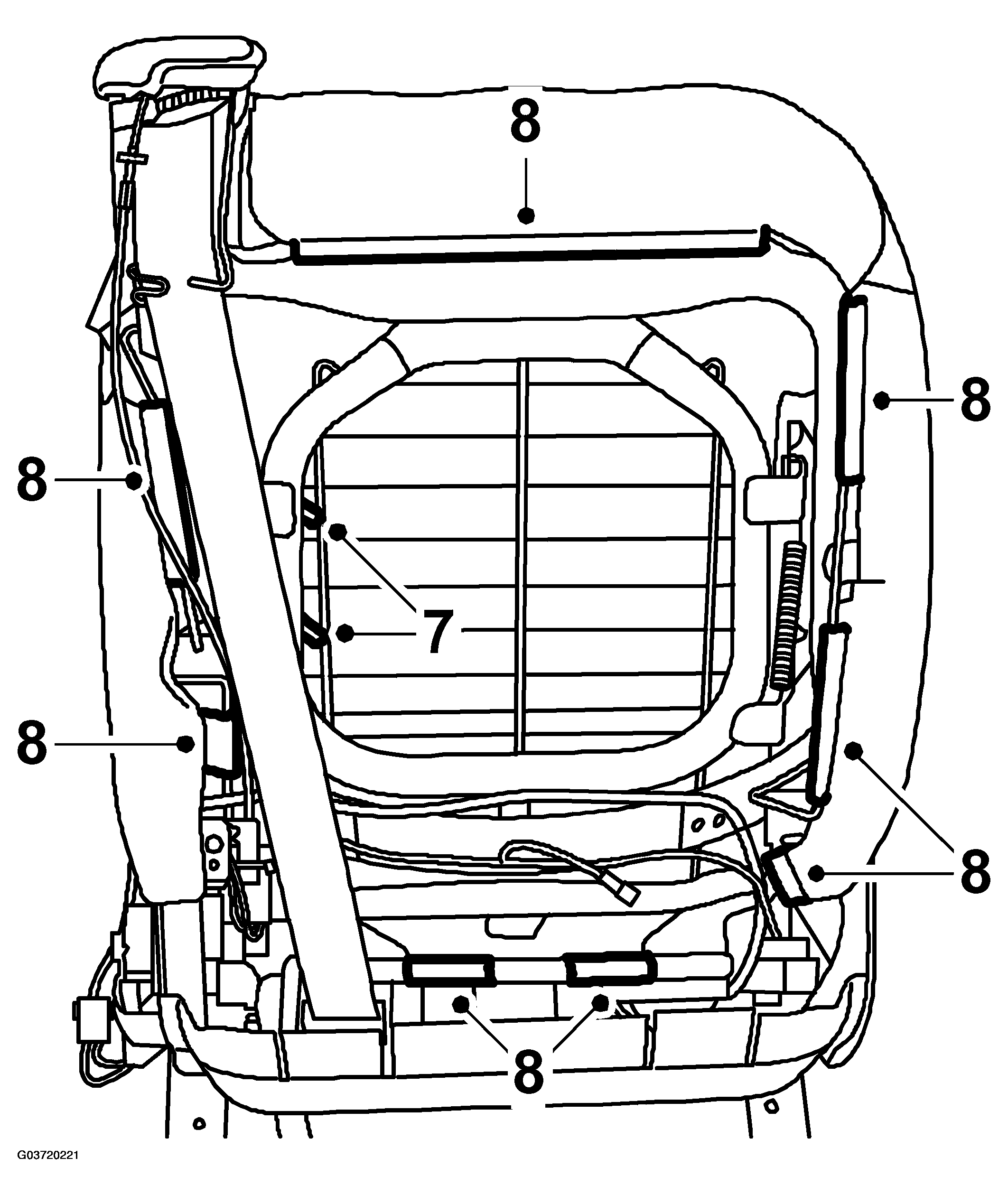

    Fig 2: Illustration For Steps 7-8
    G03720221Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the trim strips.
  9. Remove the backrest upholstery and foam cushion from the frame.
  10. Remove the staples from the upholstery. Remove the upholstery.

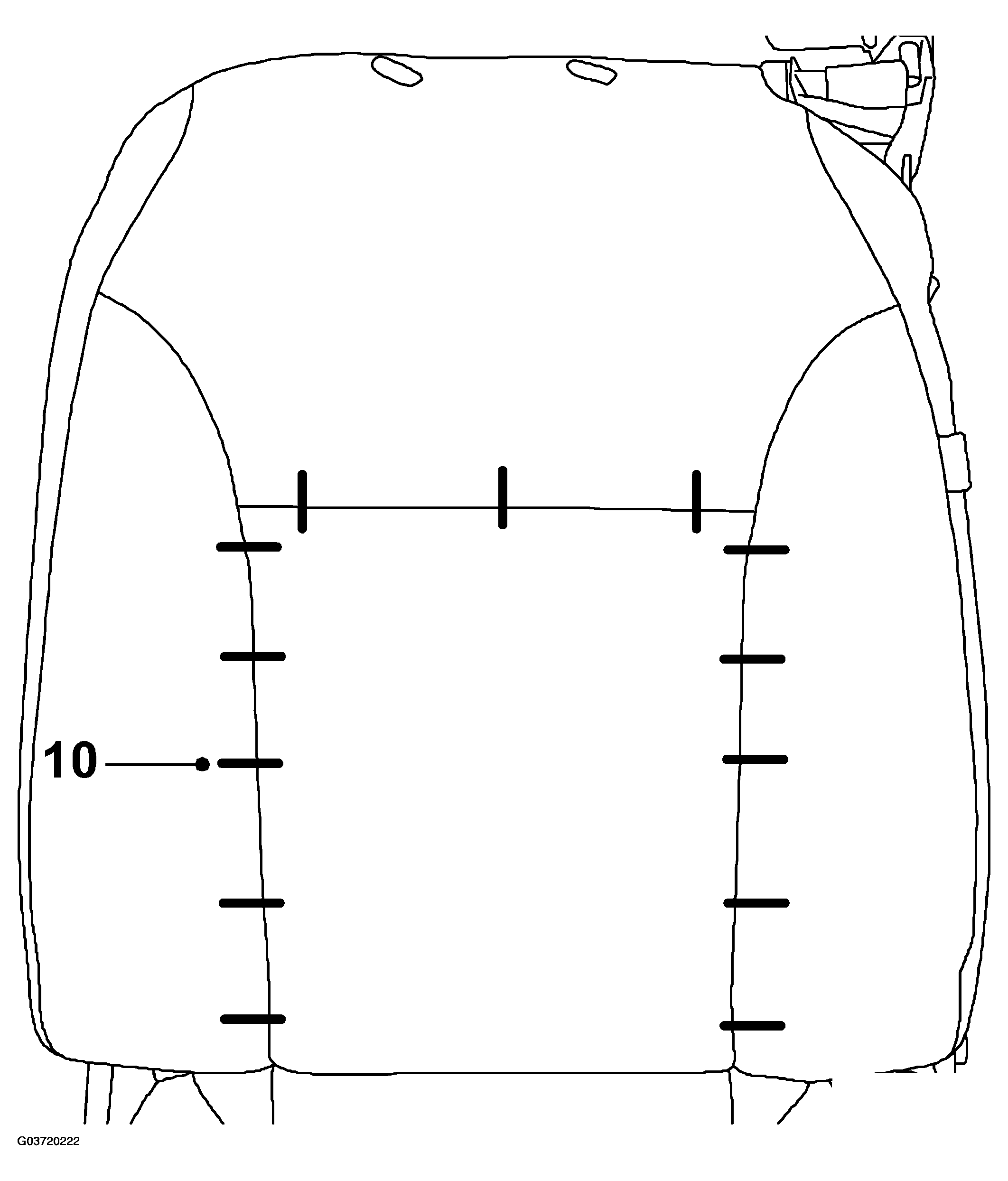

    Fig 3: Illustration For Step 10
    G03720222Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Carefully pull the heating pad off the foam cushion.
    NOTE: The heating pad is adhered to the foam cushion. Take care not to damage the cushion.
