Lumbar support: Removing

  1. Remove the seat.
  2. Remove the FRONT SEAT BACKREST UPHOLSTERY  .
  3. Unhook the wires from their mountings by twisting the wires a quarter of a turn and then pulling them out.

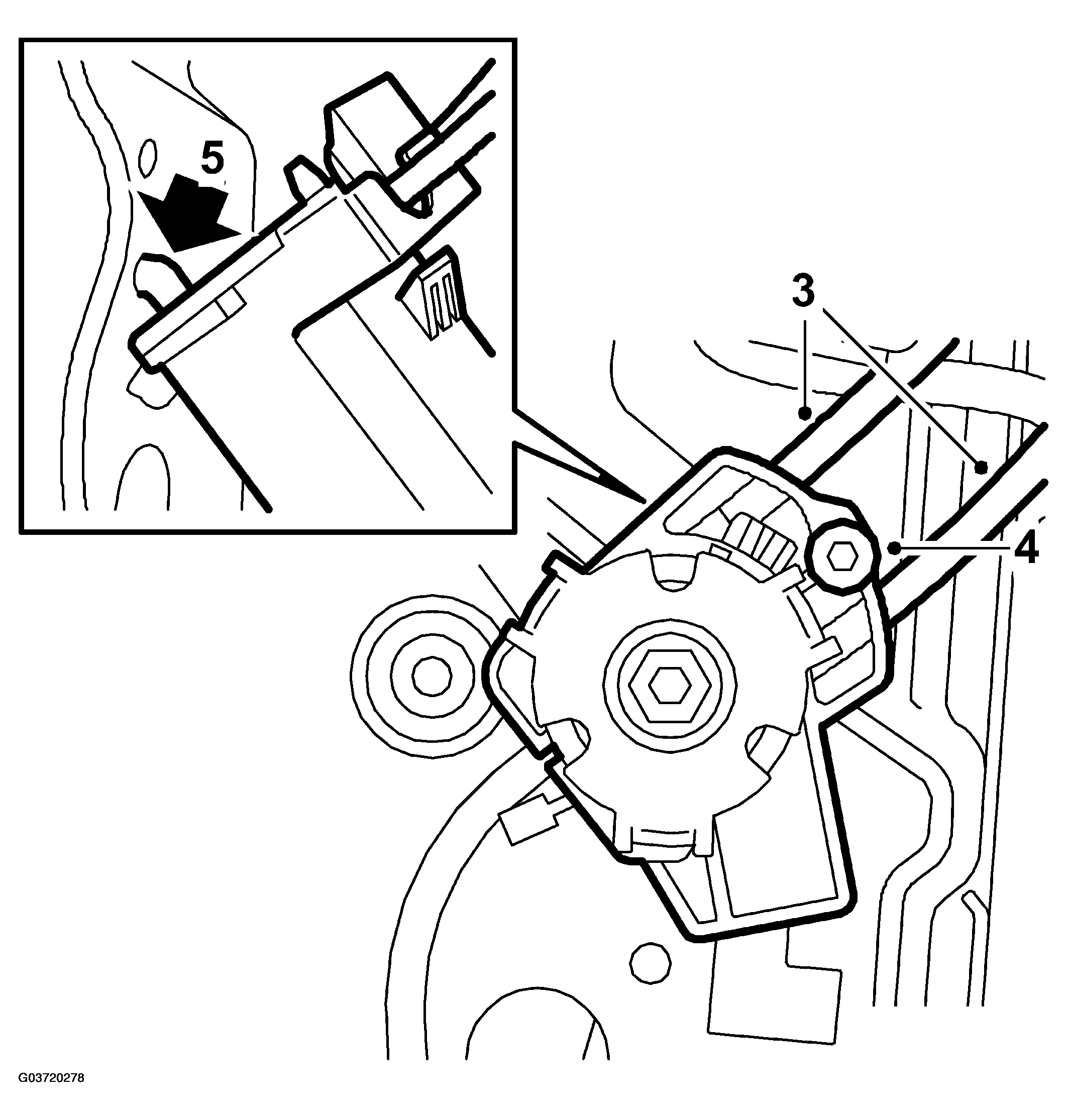

    Fig 1: Illustration For Steps 3-5
    G03720278Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unhook the spring mat from its attachment points.
  5. Unhook the lumbar support from its mountings.
