Motor, front height adjustment: Fitting

  1. Fit the height adjustment motor. Make sure that it engages the drive shaft properly.

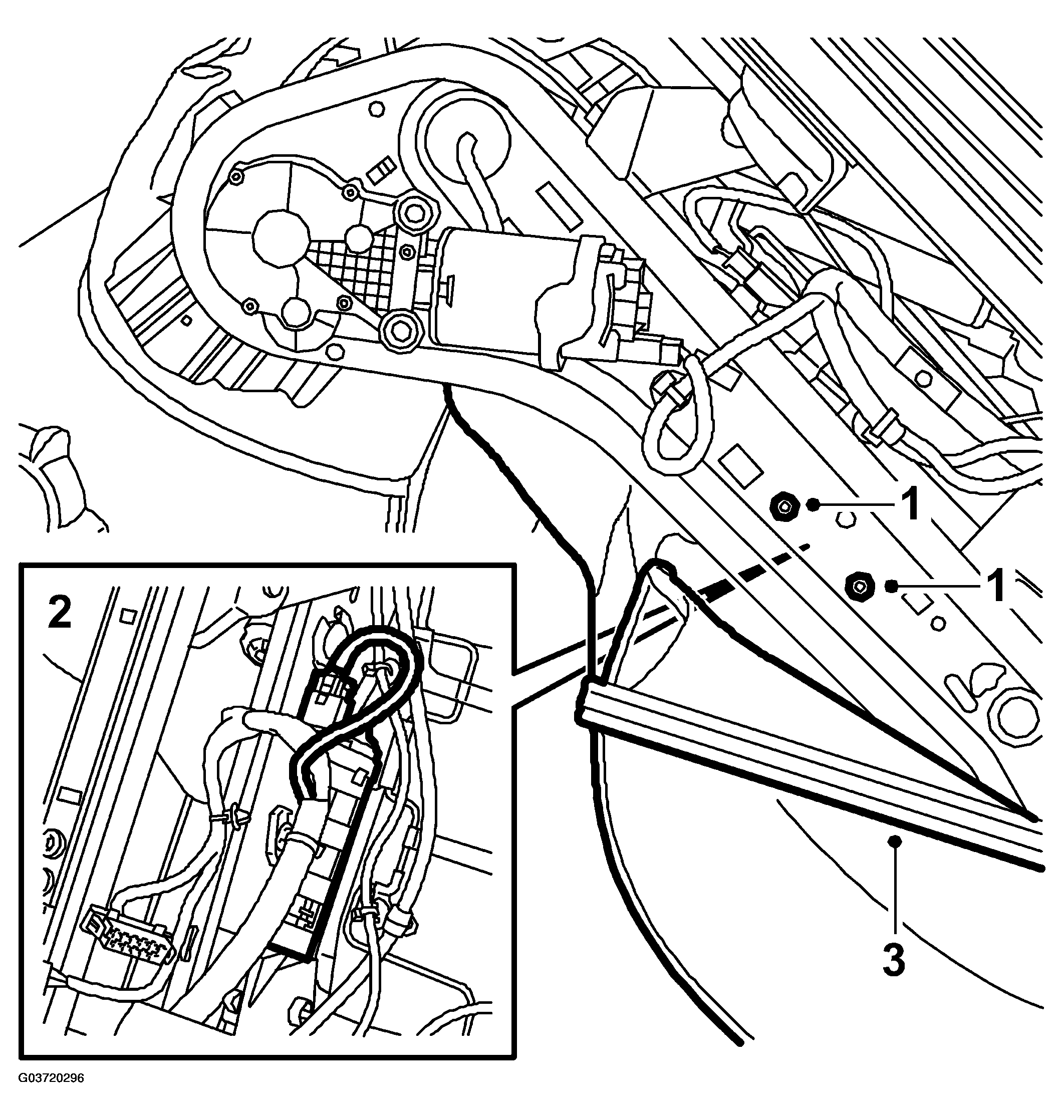

    Fig 1: Illustration For Steps 1-3
    G03720296Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector and do up the clip holding the cable to the motor.
  3. Fit the cushion upholstery on the side of the motor.
  4. Fit FRONT SEAT SIDE PANEL  .
  5. Fit the seat.
  6. Test run the height adjustment motor.
