To remove

  1. Remove the C-pillar trim.
  2. Side bolster with cable tie:  Cut off the cable tie.

    Side bolster with clips:  Remove the outer clip using 82 93 474 REMOVAL TOOL

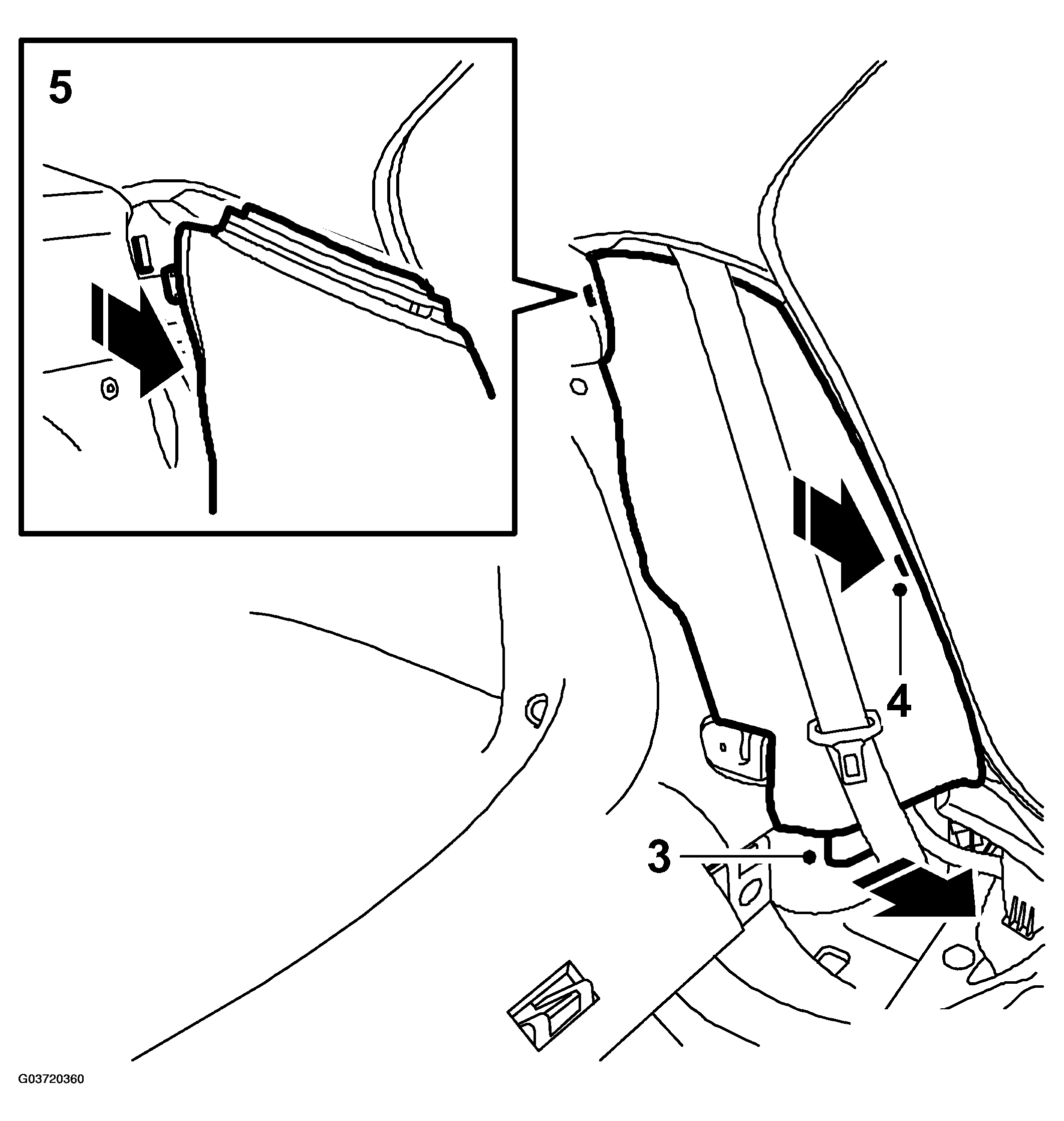

    Fig 1: Illustration For Steps 3-5
    G03720360Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the side bolster inner clip so it comes loose from its fastening.
  4. Press back the middle part of the bolster while pressing the bolster towards the middle of the car to unhook its middle fastener.
  5. Unhook the lower bolster fastener.
  6. Remove the top part of the belt guide.

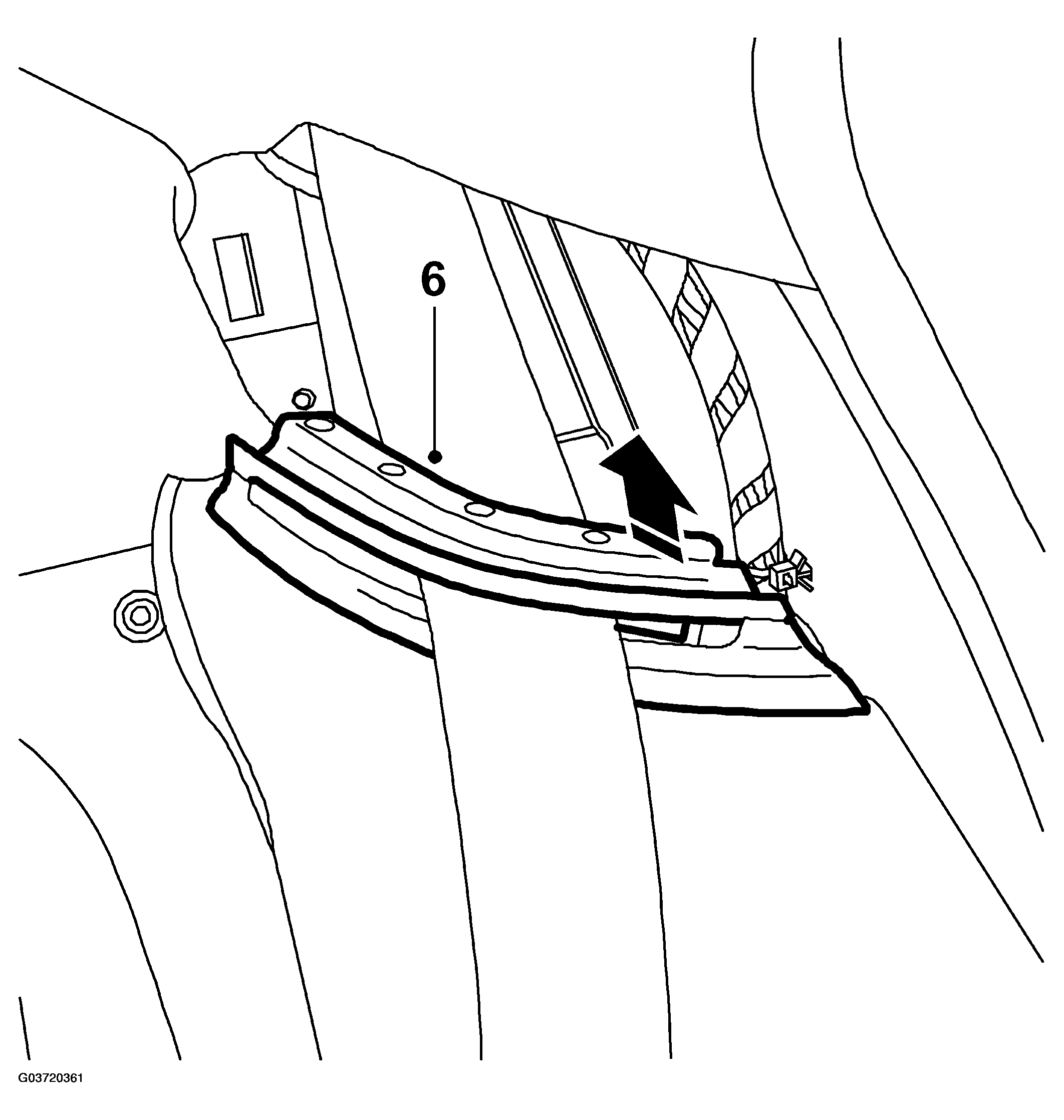

    Fig 2: Illustration For Step 6
    G03720361Courtesy of SAAB-SCANIA OF AMERICA, INC.
