Connector H4-2: Location

Location: between rear electrical center and wheel housing

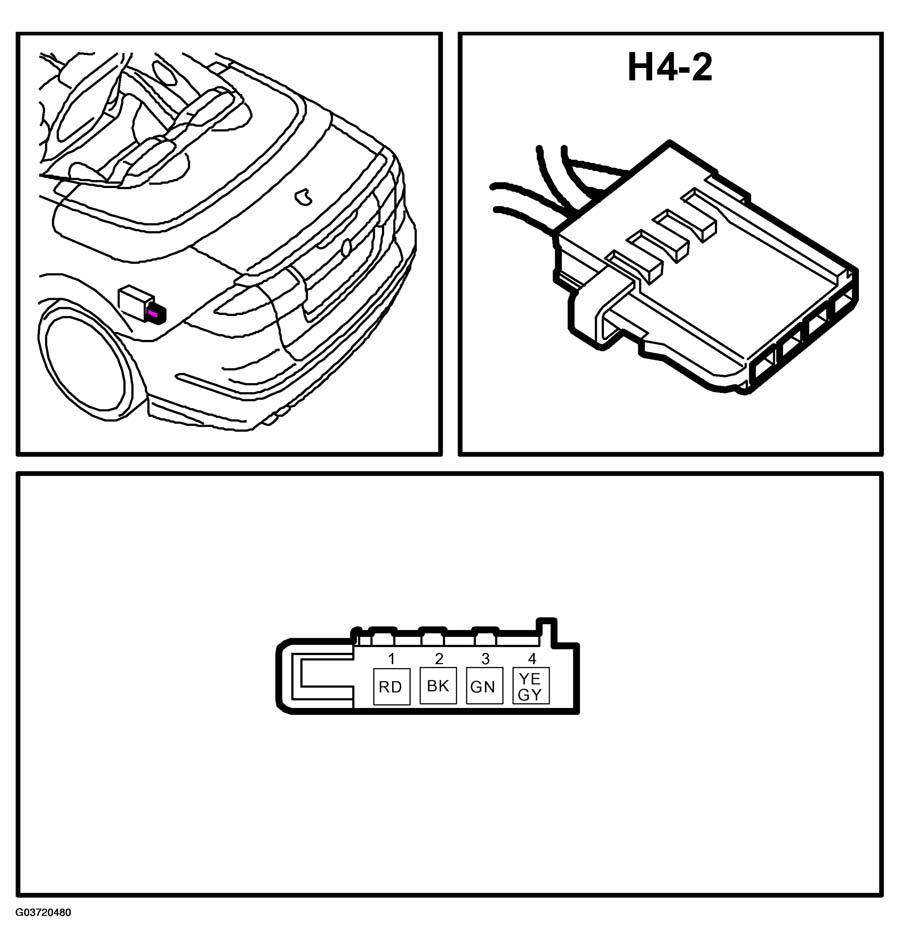

Fig 1: Identifying Connector H4-2
G03720480Courtesy of SAAB-SCANIA OF AMERICA, INC.
