Connected components
CONNECTED COMPONENTS
| 757R | Relay, +15, REC (4D) |
| Via Crimp J146, rear wiring harness 4D | |
| 182 | Unit, sunroof |
| 275 | Horn, anti-theft alarm |
| 630 | Control module, SPA |
| 649 | Rain sensor |
| 701 | Electrical distribution unit, boot |
| Via Crimp J222, rear wiring harness CV | |
| 55 | Lamp, boot lighting |
| 275 | Horn, anti-theft alarm |
| 468 | Unit, telematics |
| 630 | Control module, SPA |
| 649 | Rain sensor |
| 701 | Electrical distribution unit, boot |
| Via Crimp connector J126, roof harness (cars with sunroof) | |
| 182 | Unit, sunroof |
| Via

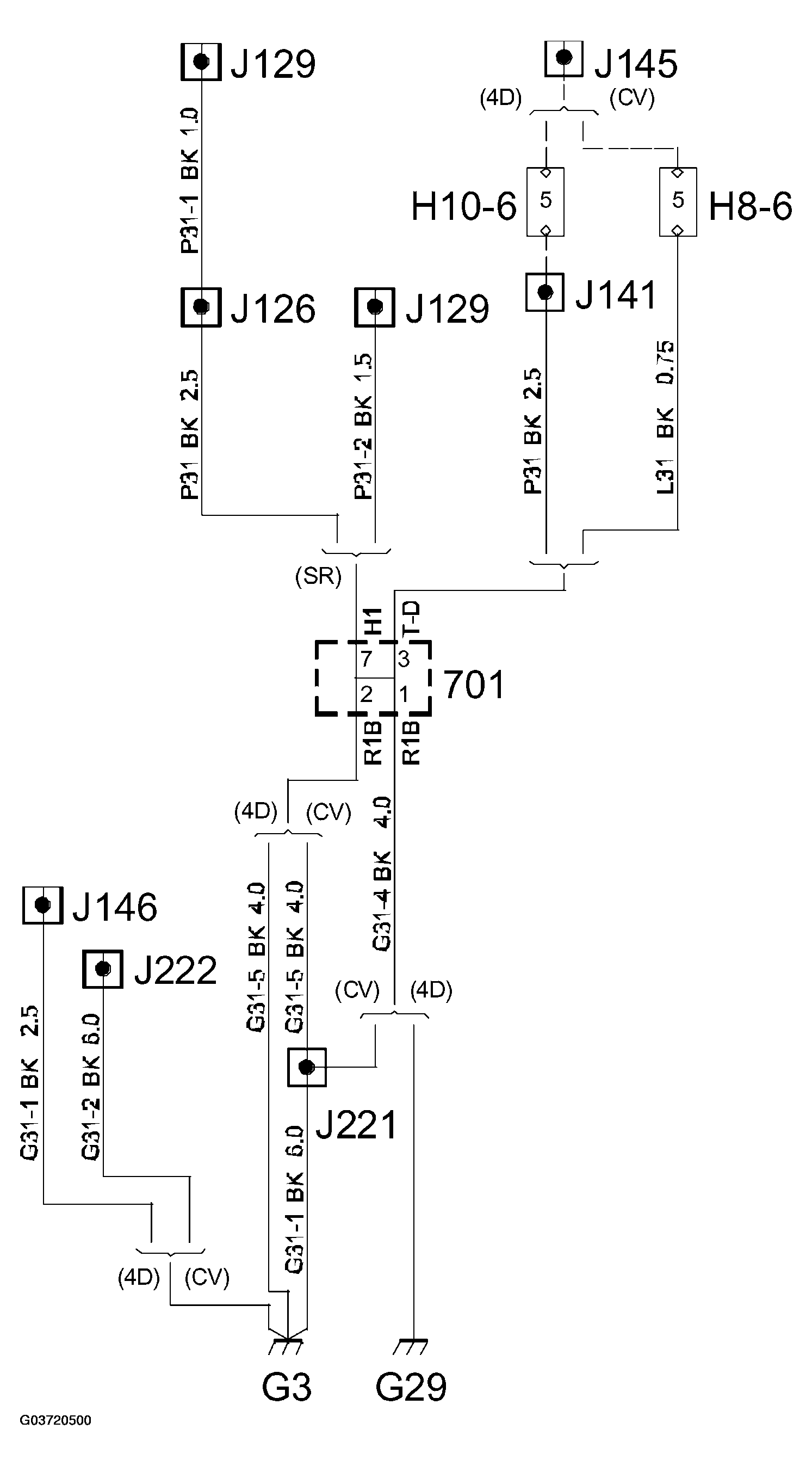

Crimp connector J129, roof harness which is connected: 4D with sunroof: via crimp connector J126 4D without sunroof: via boot electrical center 701 direct to G3 CV: via rear electrical center 701 and crimp J221 to grounding point G3 |
|
| 30RC | Lamp, high-level brake light (4D) |
| 359LH | Lamp, make-up mirror lighting, left |
| 359RH | Lamp, make-up mirror lighting, right |
| 681 | Rear-view mirror, interior |
| 685F | Unit, dome light, front |
| 685R | Unit, dome light, rear |
| Via Crimp connector J141, parcel shelf harness (4D) | |
| 55 | Lamp, boot lighting |
| 468 | Unit, telematics |
| 741LH | Microswitch, backrest, rear seat, left |
| 741RH | Microswitch, backrest, rear seat, right |
| Via CRIMP J145, BOOT LID HARNESS
which in: 4D is connected to Crimp J141, parcel shelf wiring harness CV is connected to Crimp J221, rear harness CV |
|
| 30RC | Lamp, high-level brake light (CV) |
| 418HL | Unit, light cluster, boot lid, left |
| 418HR | Unit, light cluster, boot lid, right |
| 687H | Unit, central locking, boot lid |
| 691 | Unit, handle, boot lid |
| 701 | REC (CV) |
| 757R | Relay, +15, REC |
