Front seats

The front seats are constructed around pressed steel frames for the seat and the backrest. The backrest and seat frames are joined together via the backrest reclining mechanism.

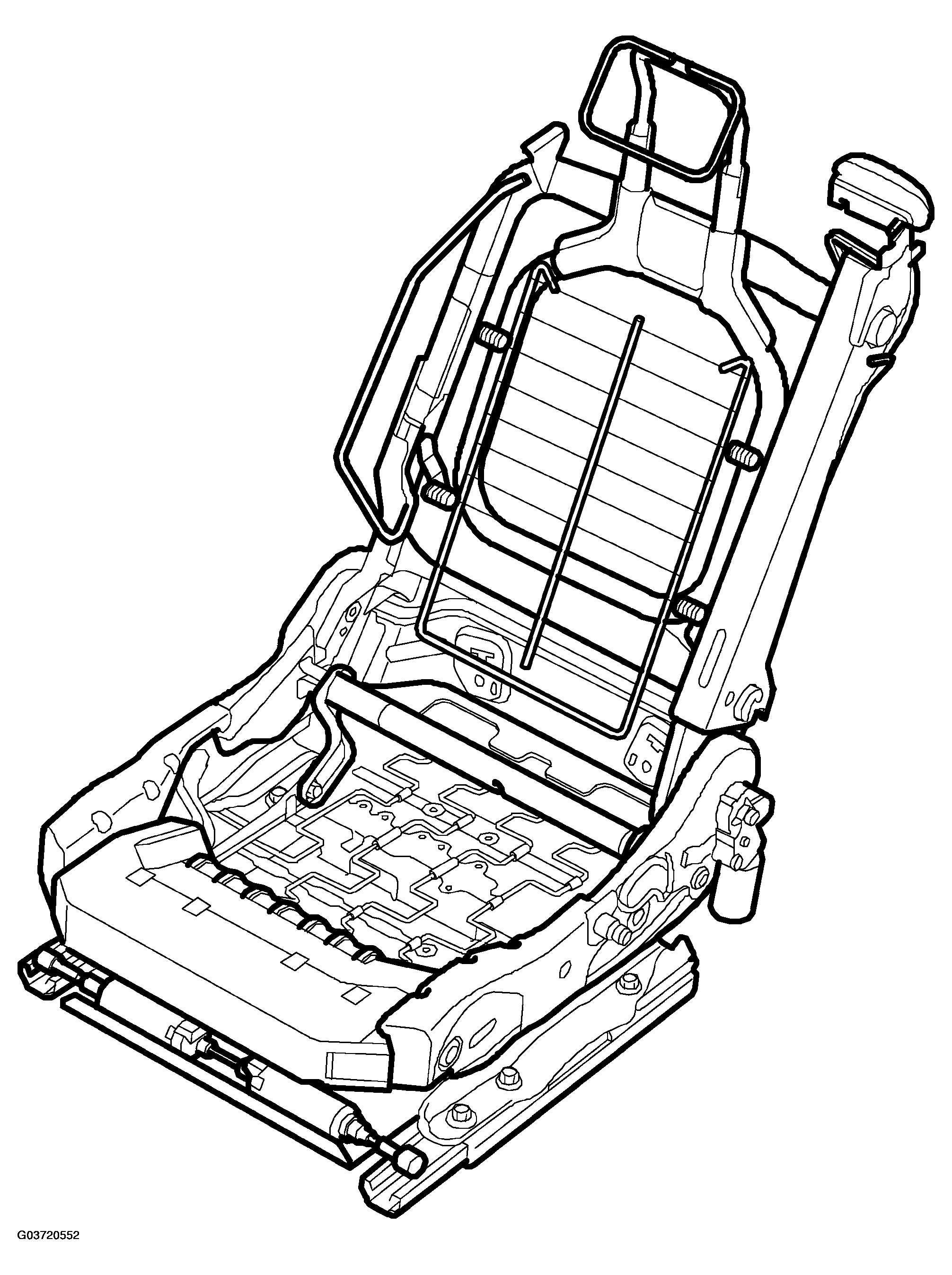

Fig 1: Identifying Front Seats Components (4D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

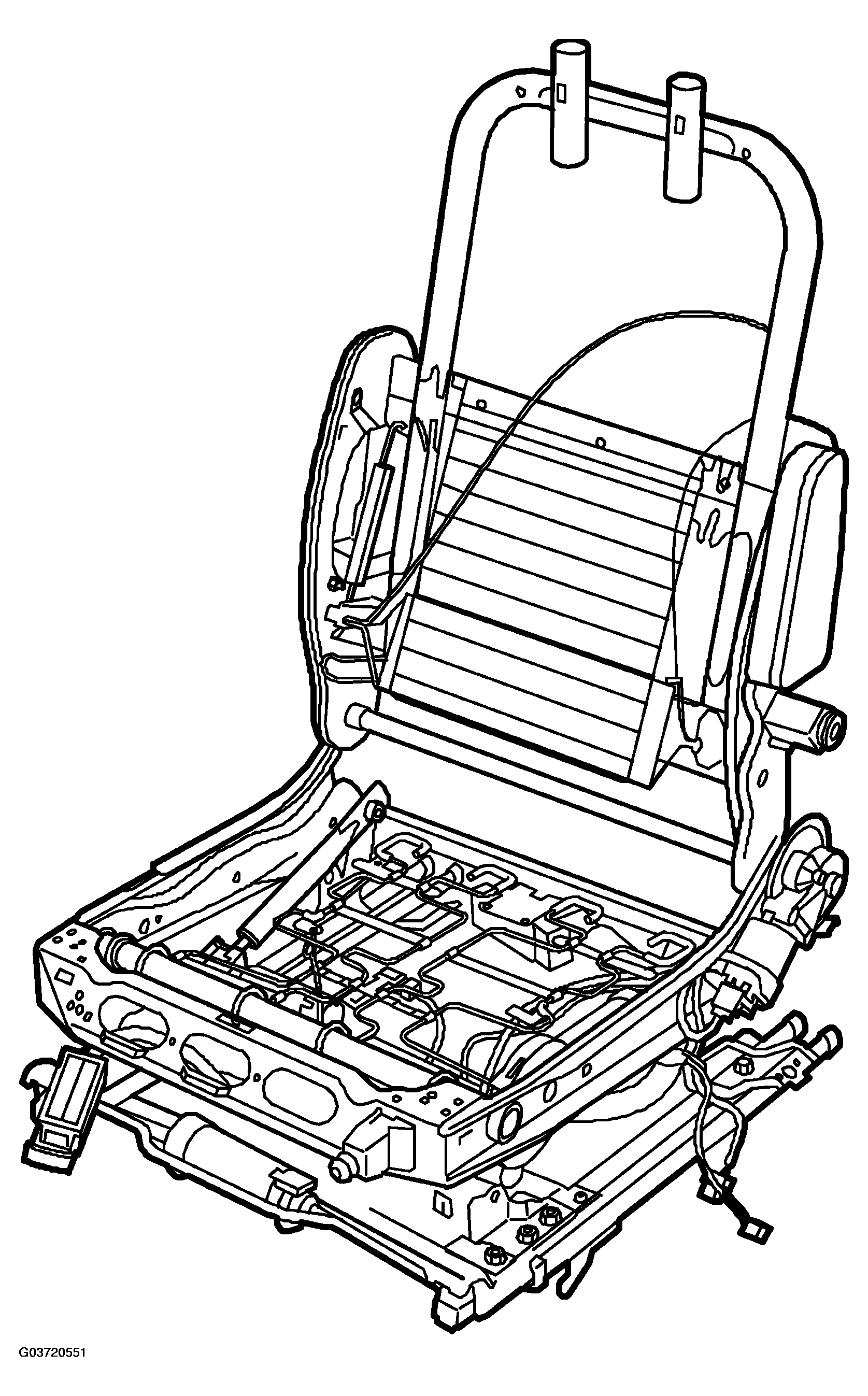

Fig 2: Identifying Front Seats Components (CV)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

On the front edge of the seat frame there is a transverse plate that prevents the passenger from sliding forwards and downwards in the event of a collision. The passenger belt has a sensor which detects whether the seat is in use. CV: The seat back also forms the mounting for the side airbag and safety belt.

For more information read DETAILED DESCRIPTION , airbag system

The cushions rest on a spring system, which is attached to the seat frame. The cushions are made of polyurethane polyethylene and covered with leather/vinyl or knitted plush.

Fig 3: Identifying Airbag System

Courtesy of SAAB-SCANIA OF AMERICA, INC.
