Automatic Climate Control (216): Connection

PIN CONNECTION SPECIFICATION

Pin	Signal type	Description
15 (K32)	Power ground	Power supply
16 (K32)	+30	Power supply
28(K32)	Instrument bus	Signal to/from other control modules
29 (K32)	Instrument bus	Signal to/from other control modules

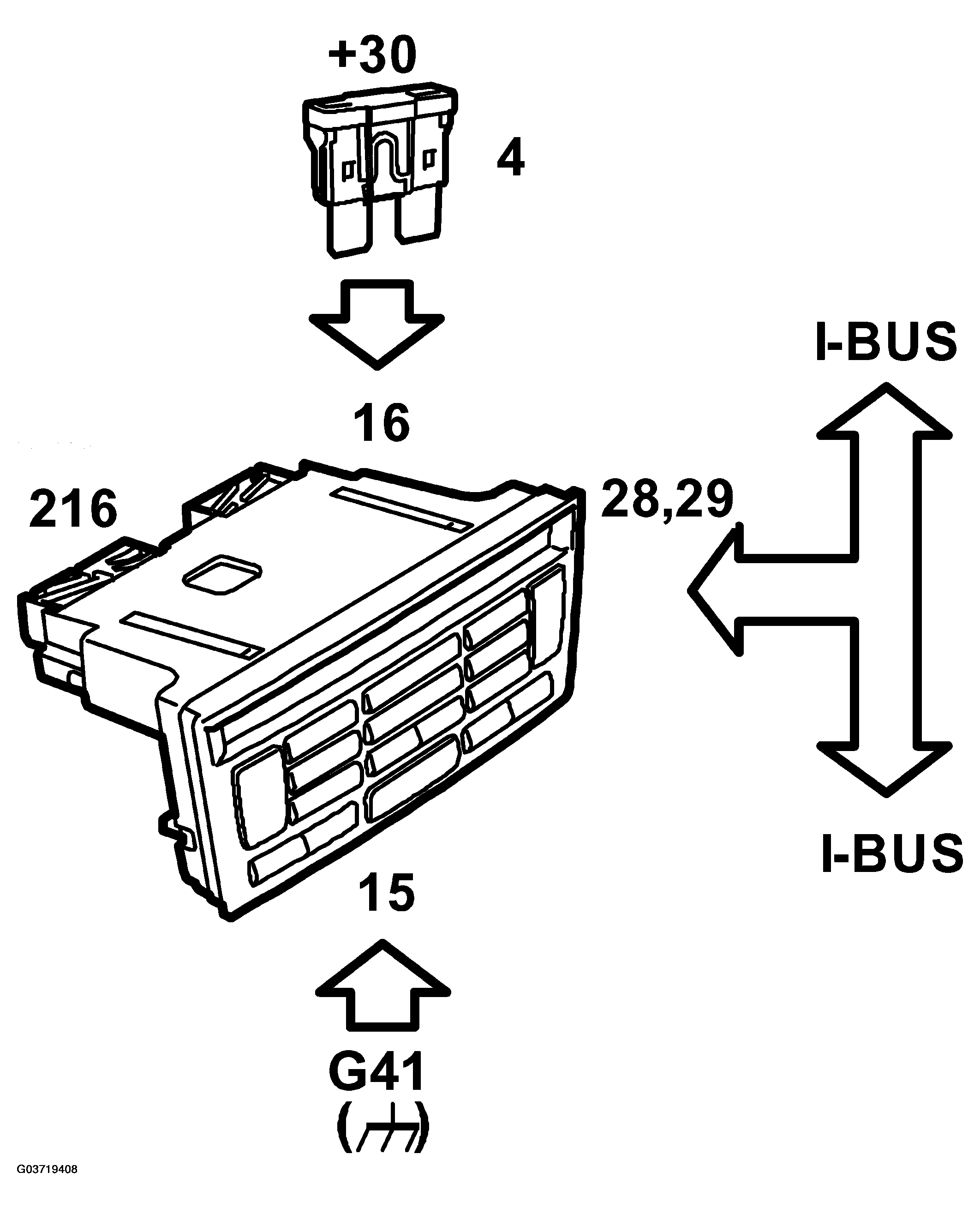

Fig 1: Identifying Automatic Climate Control Communication

Courtesy of SAAB-SCANIA OF AMERICA, INC.

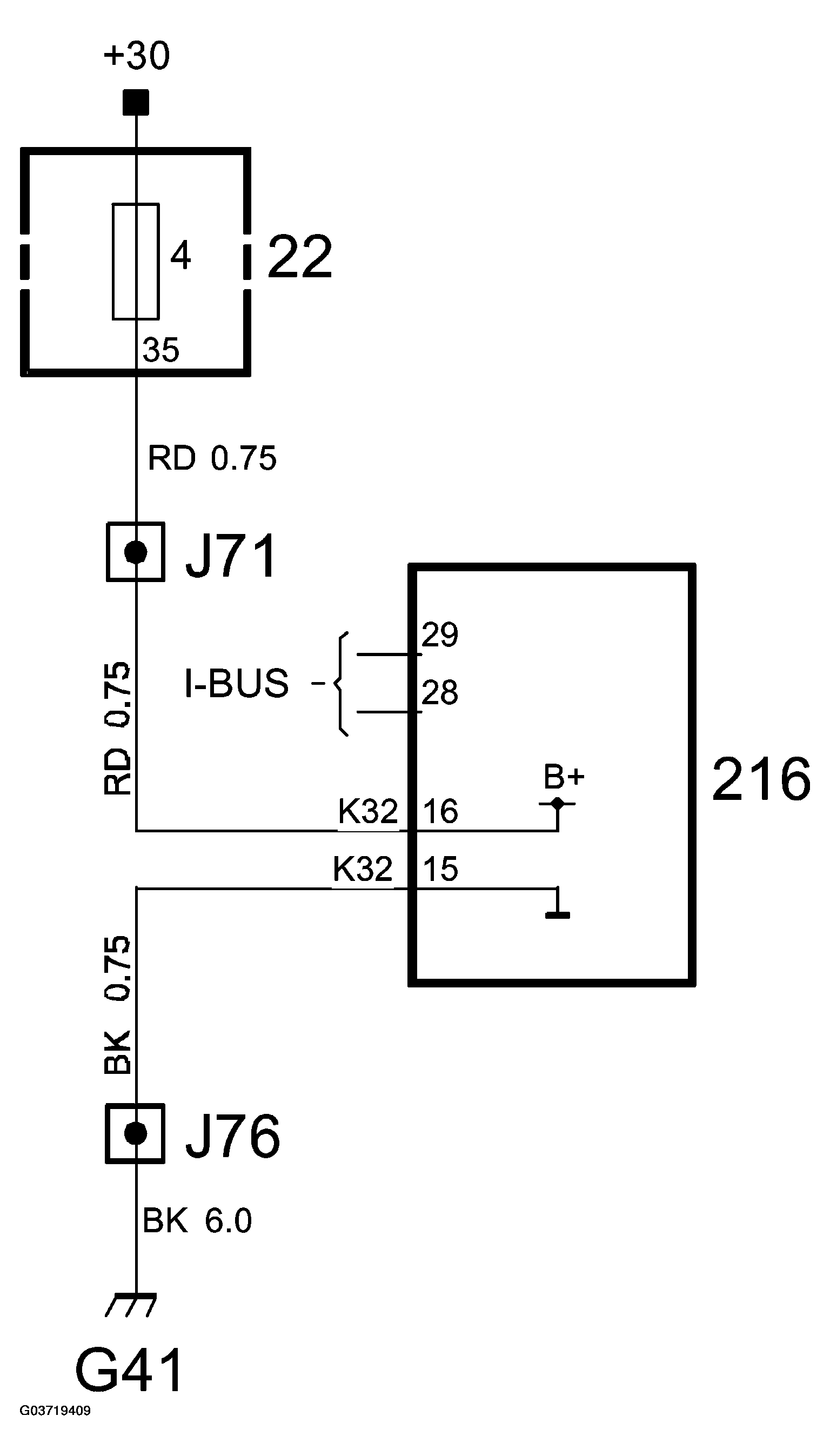

Fig 2: Identifying Automatic Climate Control Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
