Connector H4-3: Location

Location: under the TCM control module

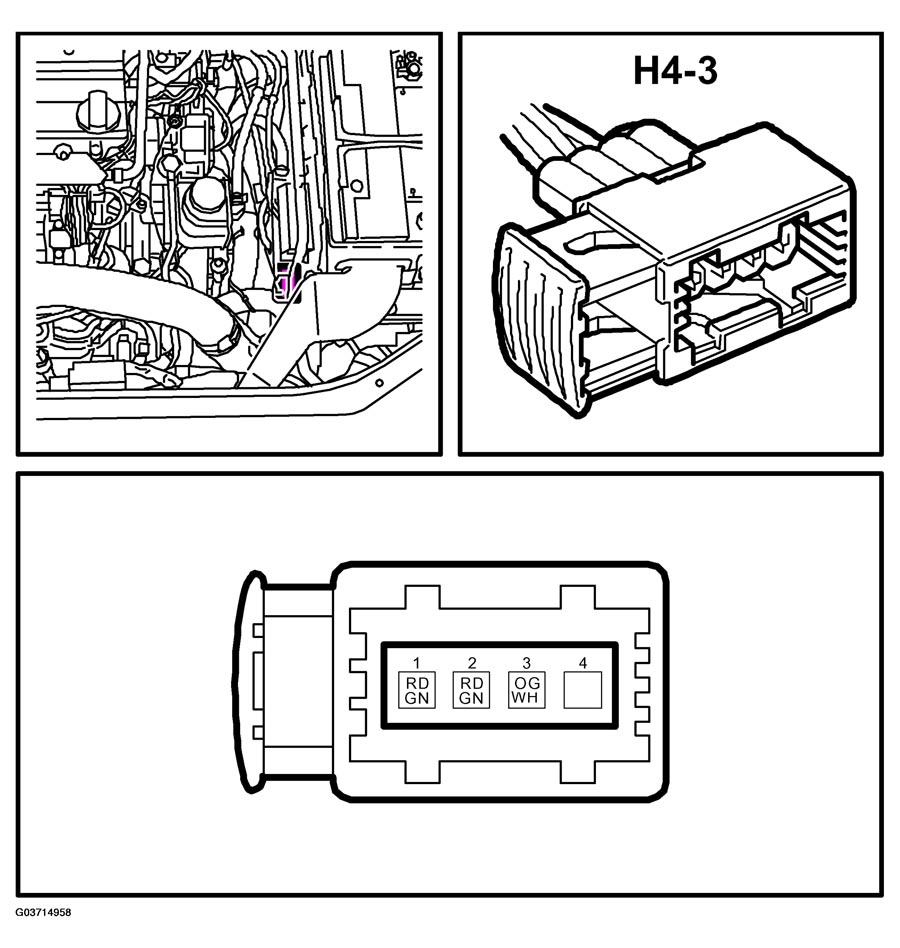

Fig 1: Identifying Connector Terminal (H4-3)
G03714958Courtesy of SAAB-SCANIA OF AMERICA, INC.
