Crimp J45, engine harness, Trionic: Location:

Approx. 270 mm from branching point connector H24-2 towards the engine control module

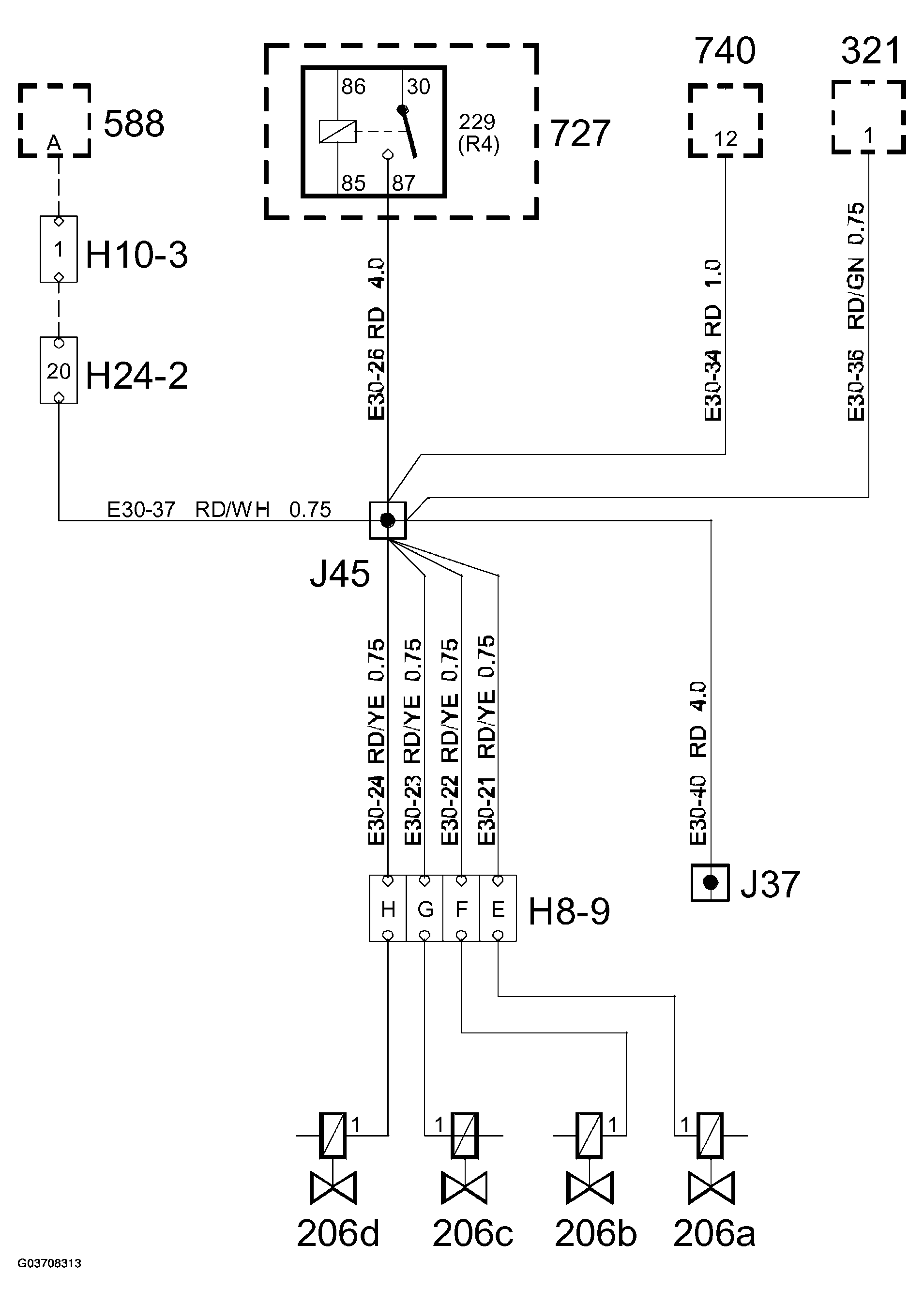

Fig 1: Circuit Diagram - Crimp J45, Engine Harness, Trionic
