Crimp J46, engine harness, Trionic: Location:

Approx. 30 mm from branching of connector H24-2 towards Underhood Electrical Centre 342

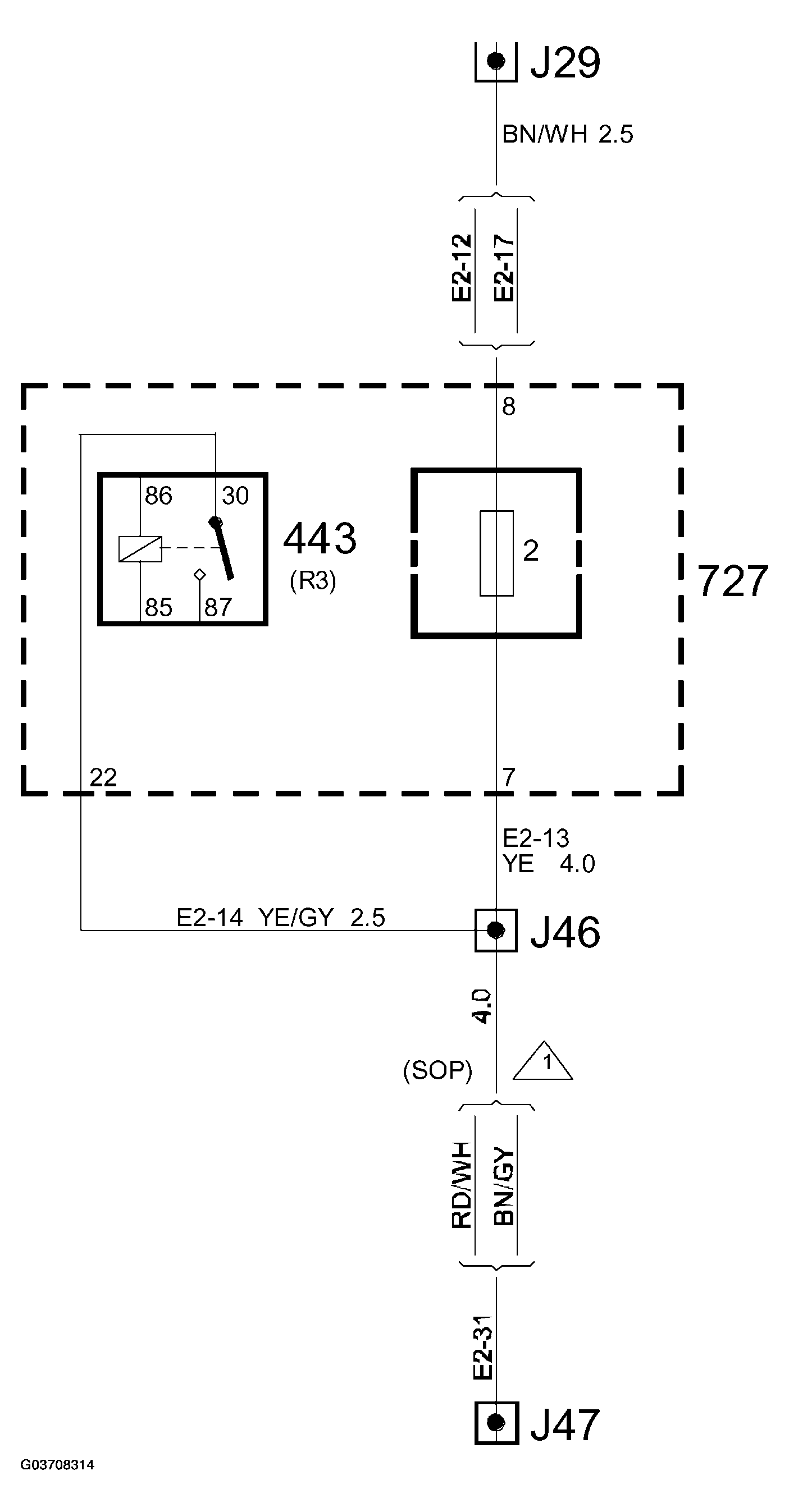

Fig 1: Circuit Diagram - Crimp J46, Engine Harness, Trionic

Courtesy of SAAB-SCANIA OF AMERICA, INC.
