To fit

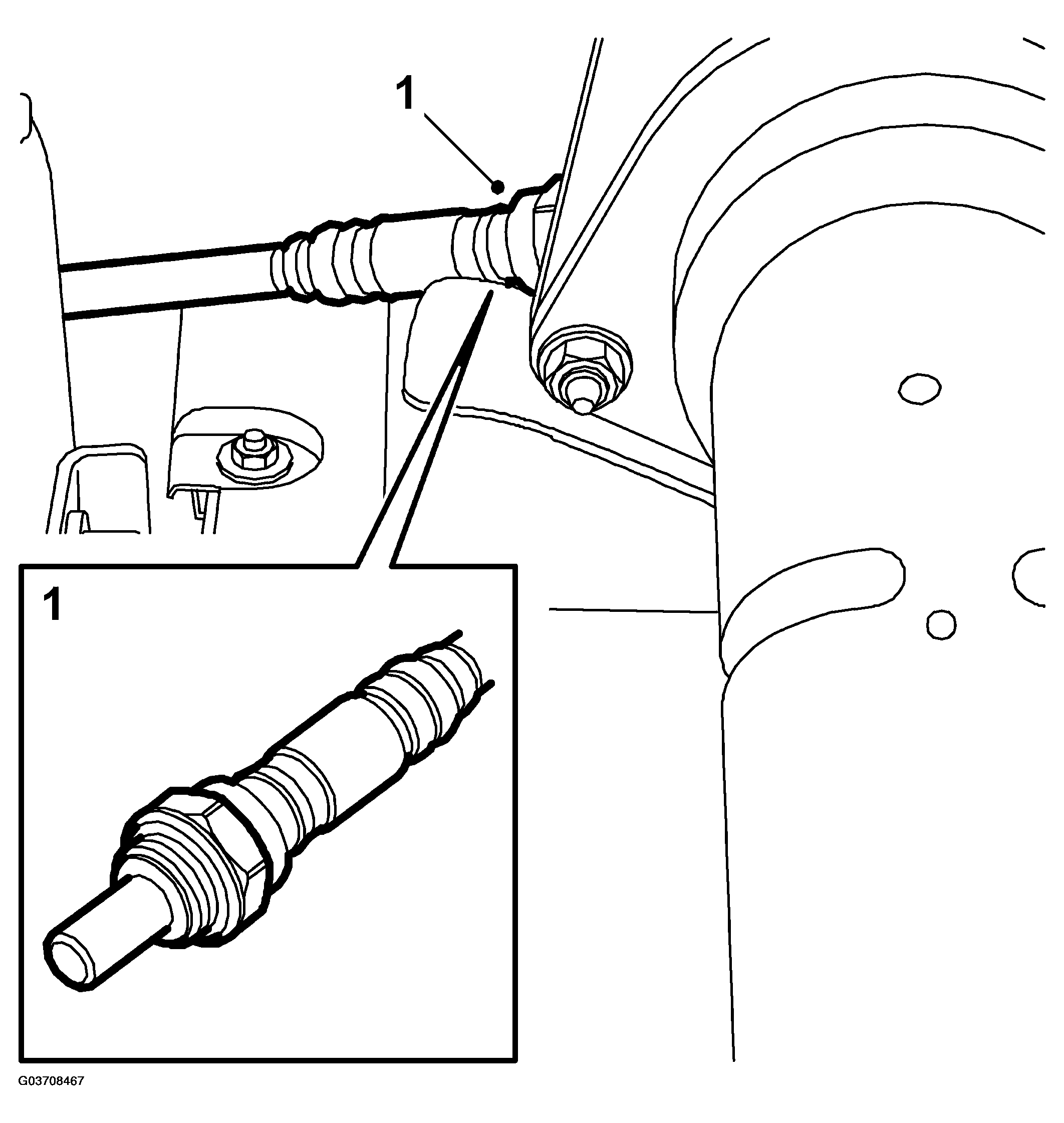

Lubricate the threads sparingly with 30 20 971 Screw-thread paste and fit the oxygen sensor.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 40 Nm (30 lbf ft) .

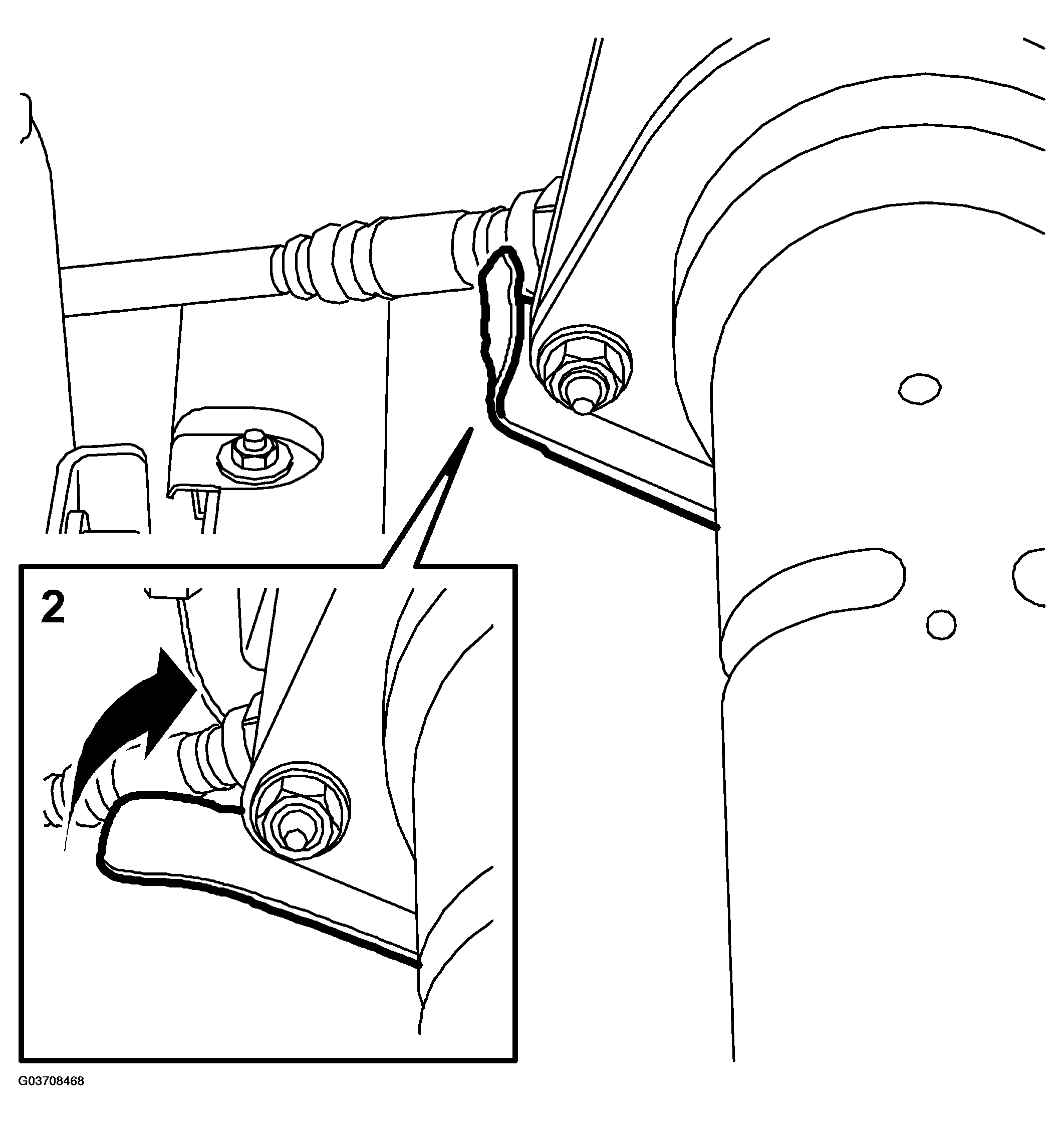

Check that the cables are NOT twisted or damaged. Bend back the corner of the heat shield.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Lift up the oxygen sensor cable, making sure it does not get pinched or is exerted to chafing.

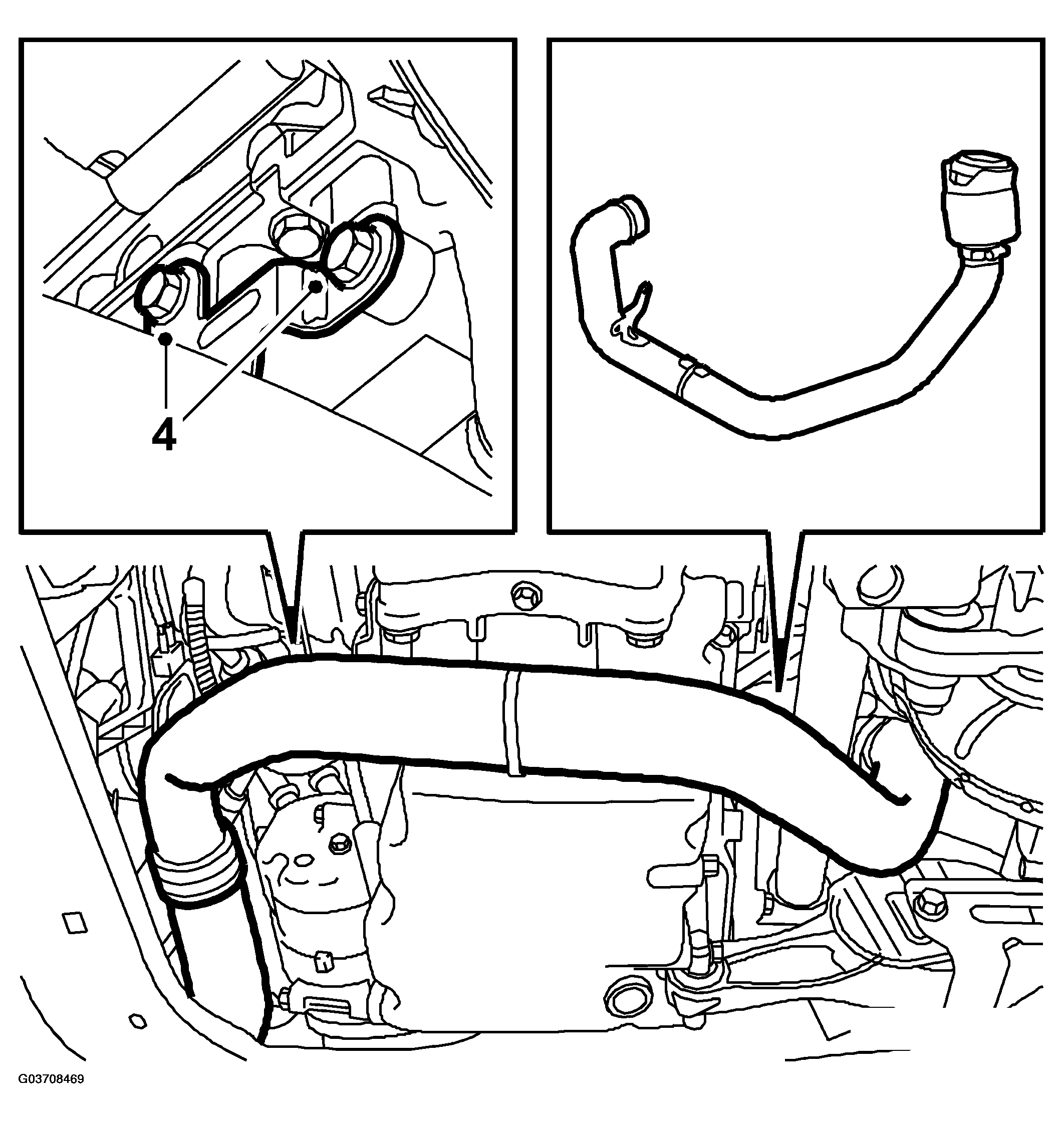

Fit the turbocharger delivery pipe. CV: Fit Chassis reinforcement, front supporting frame, CV

Fig 3: Illustration For Step 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 22 Nm (16 lbf ft) .
Lower the car.

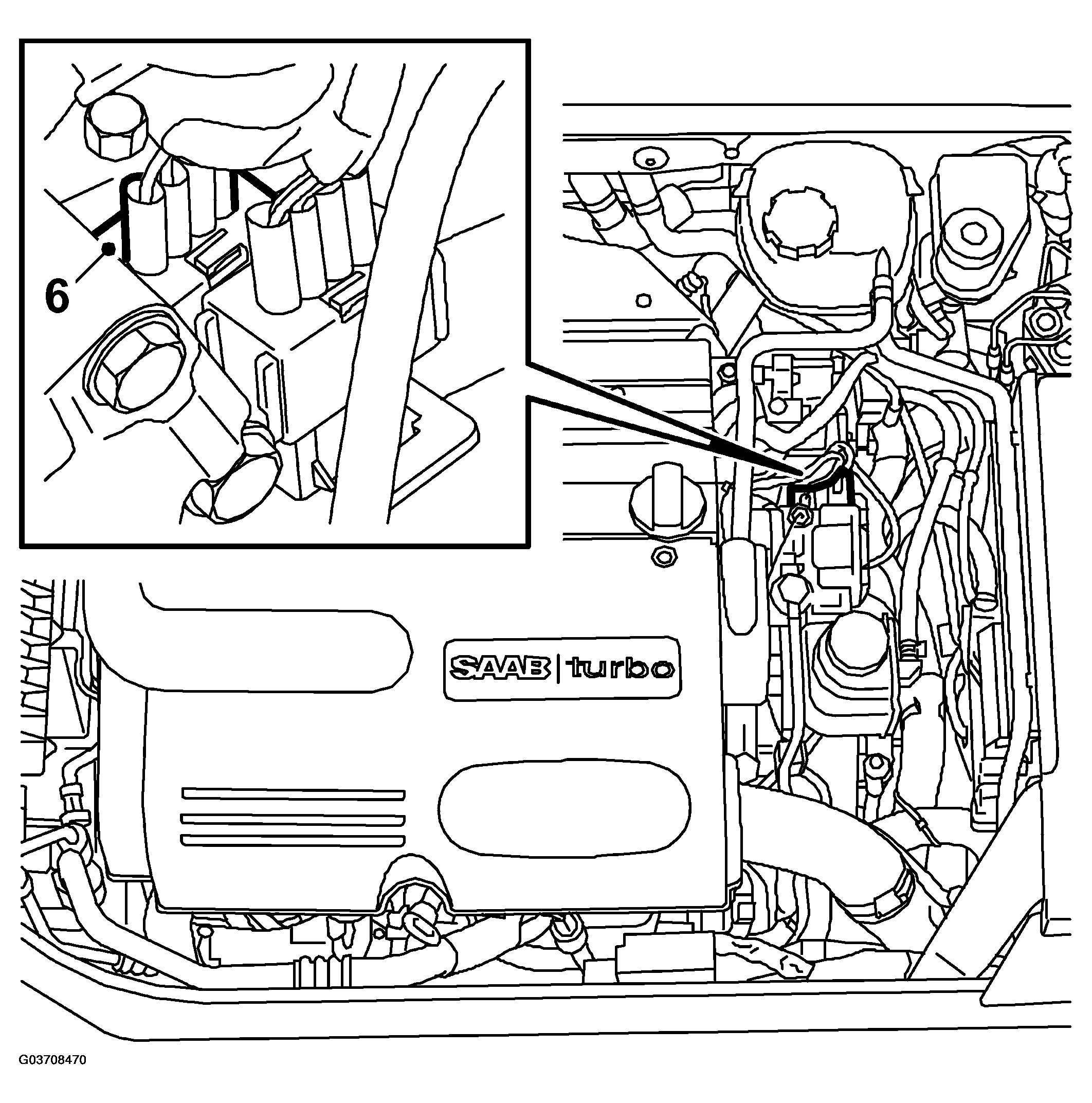

Plug in the oxygen sensor connector and secure it.

Fig 4: Illustration For Step 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
