Atmospheric pressure sensor (539): Location:

4-cyl petrol:  on the engine's top left front corner by the camshaft cover

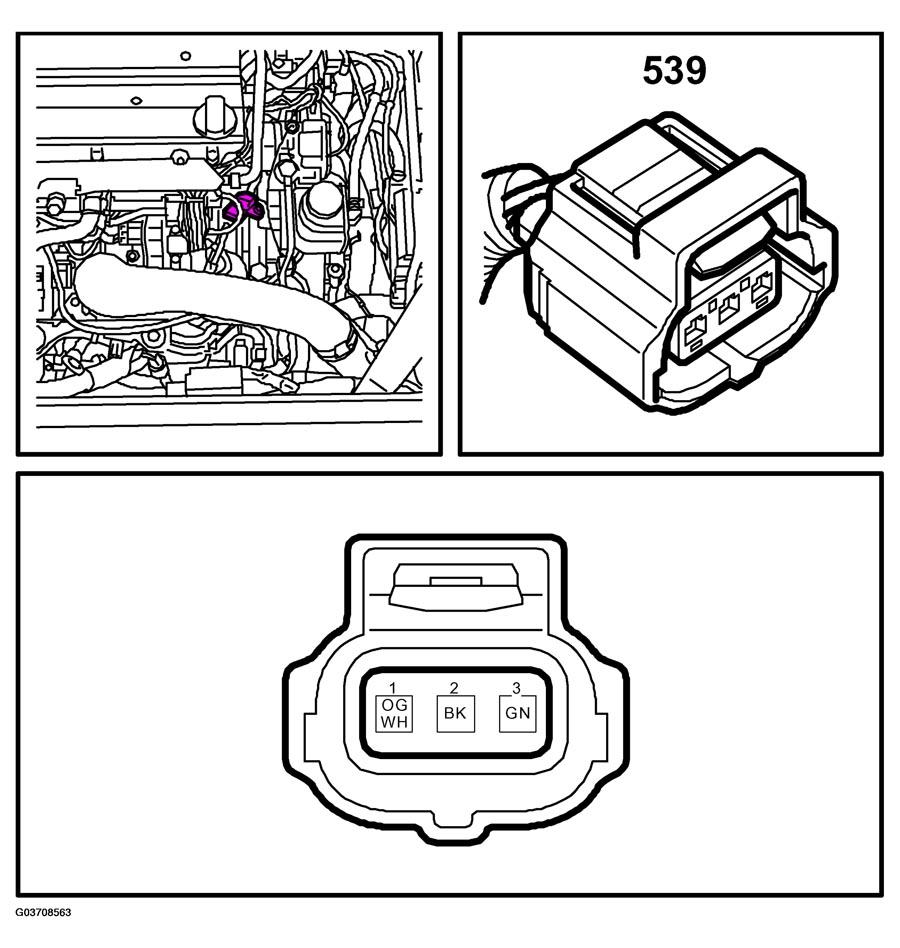

Fig 1: Identifying Atmospheric Pressure Sensor (539) 4-Cyl Petrol
G03708563Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel:  under the glow plug control module on the battery's radiation protection

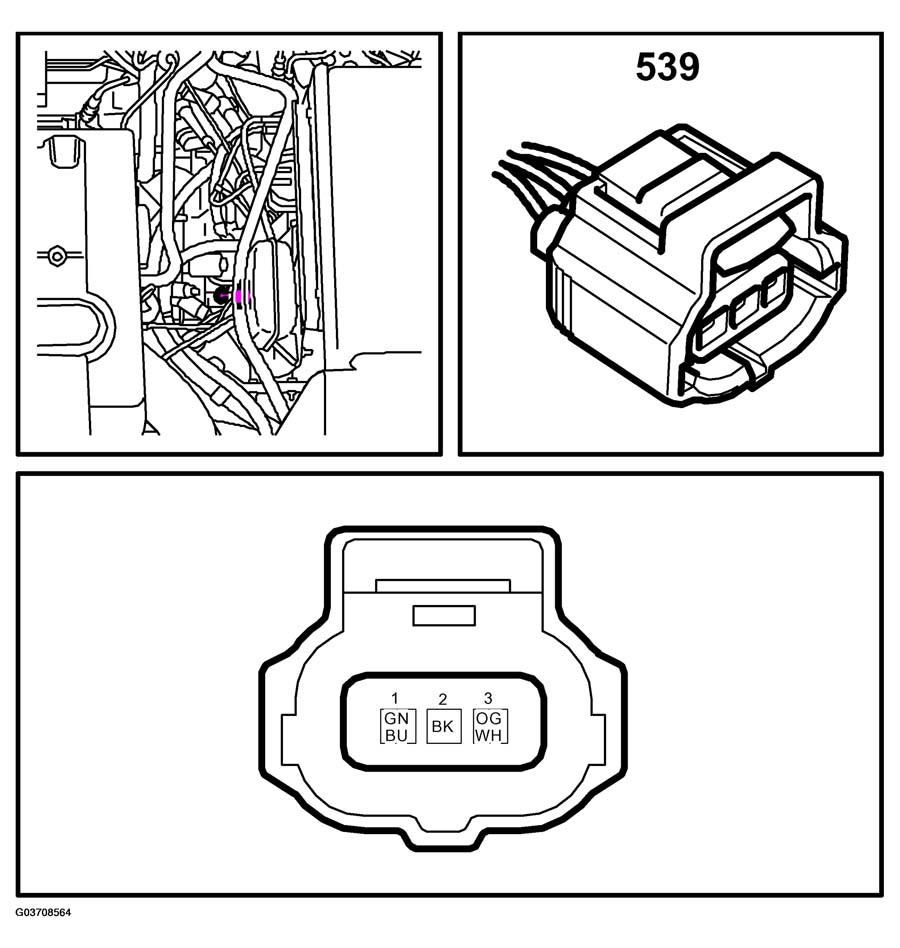

Fig 2: Identifying Atmospheric Pressure Sensor (539) 4-Cyl Diesel
G03708564Courtesy of SAAB-SCANIA OF AMERICA, INC.
