Home › Saab › 2004 › 9-3 Linear, Standard › Repair and Diagnosis › Engine Performance › TRIONIC T8 Fuel Control System › Component Location › Engine oil level switch (243) › Location › Simtec

Engine oil level switch (243): Location: Simtec

at the bottom of front edge of the oil pan

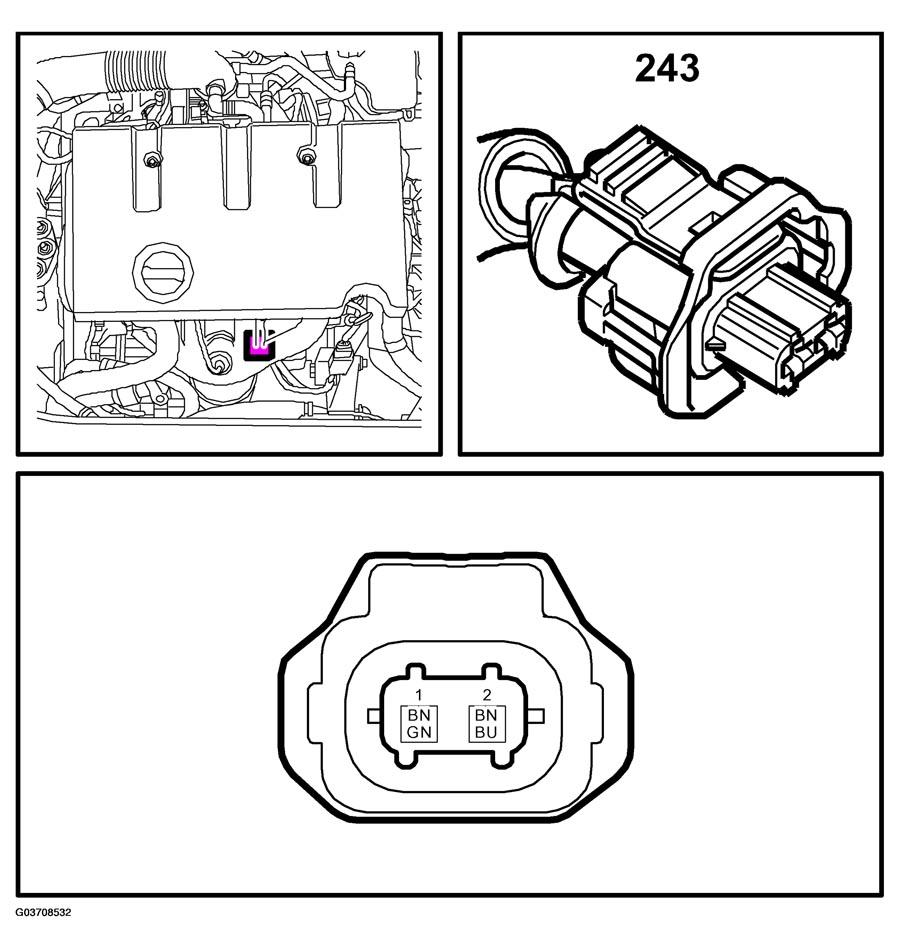

Fig 1: Identifying Engine Oil Level Switch Connector Pinout (Simtec)
G03708532Courtesy of SAAB-SCANIA OF AMERICA, INC.
