TRIONIC T8 Fuel Control System
›
Component Location
›
Fuse 6, instrument panel electrical center 22
›
Notes
Fuse 6, instrument panel electrical center 22: Notes

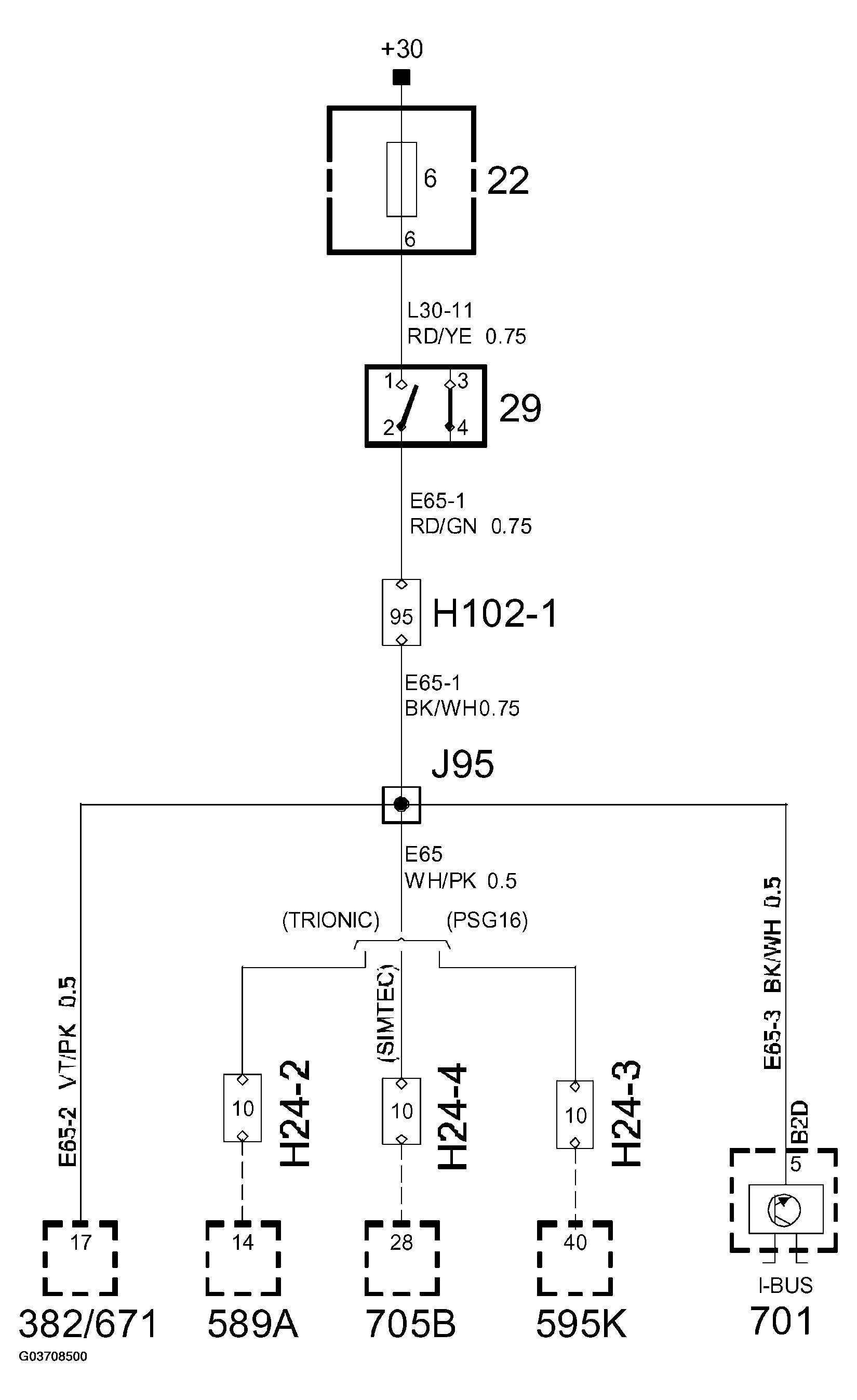

Fig 1: Identifying Fuse 6 And Instrument Panel Electrical Centre 22 Wiring Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
