Heated oxygen sensor element (271): T8

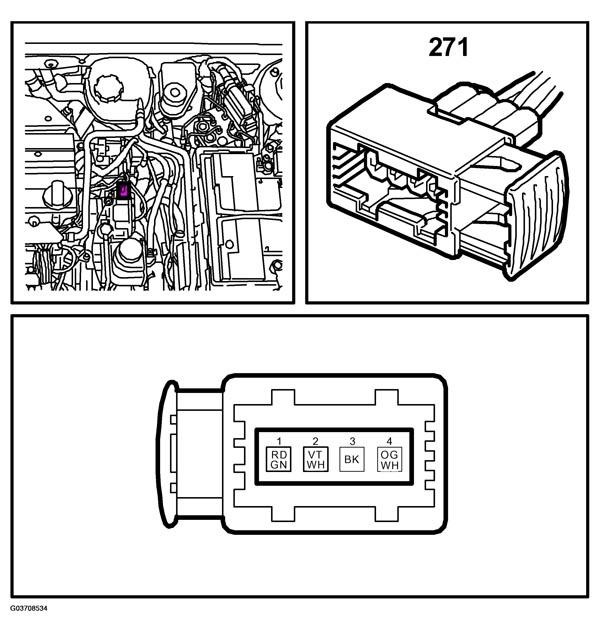

front heated oxygen sensor

Fig 1: Identifying Heated Oxygen Sensor Element Connector Pinout (T8) (1 Of 2)
G03708534Courtesy of SAAB-SCANIA OF AMERICA, INC.

rear heated oxygen sensor

Fig 2: Identifying Heated Oxygen Sensor Element Connector Pinout (T8) (2 Of 2)
G03708535Courtesy of SAAB-SCANIA OF AMERICA, INC.
