Instrument panel electrical center 22 (IPEC): Fuses

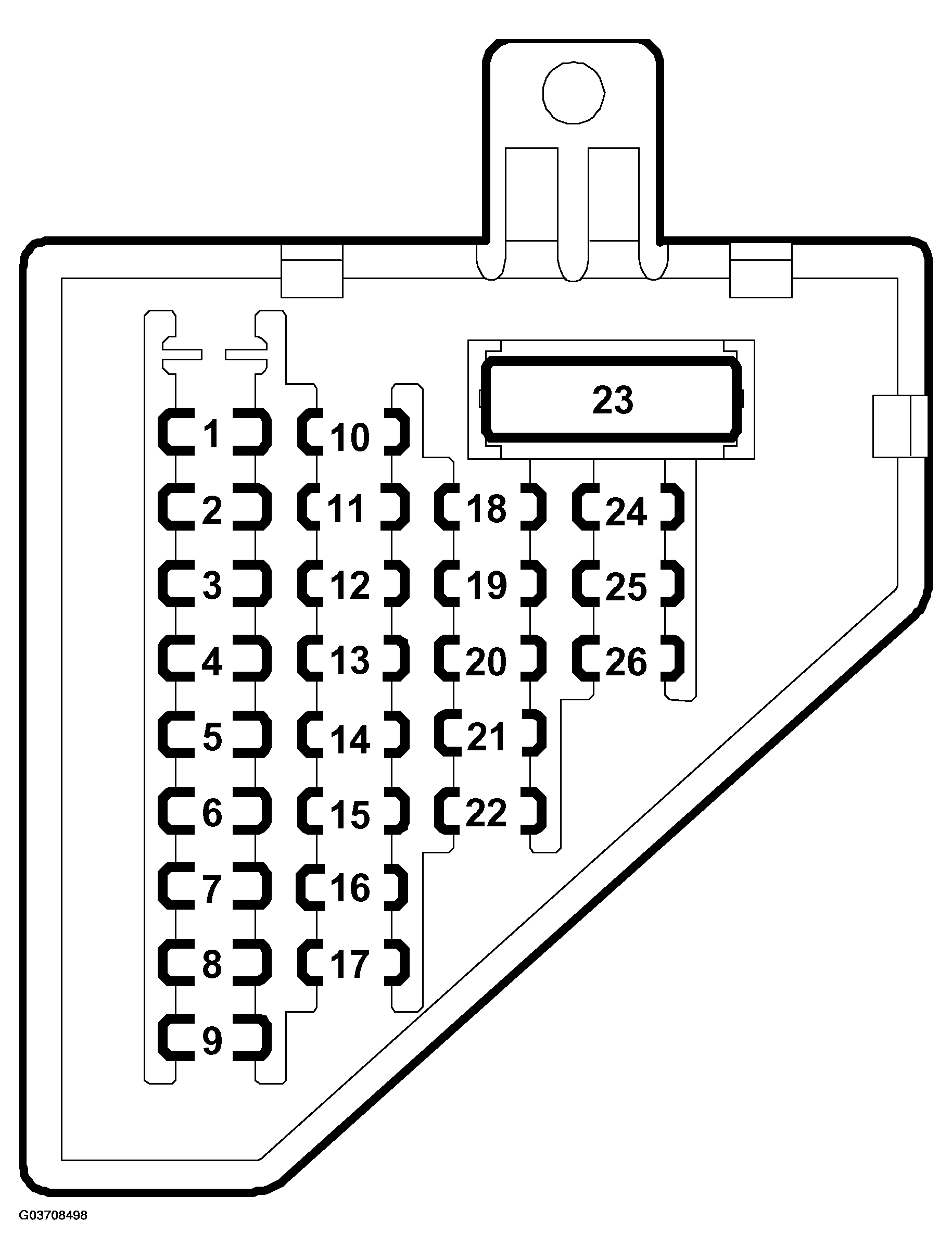

Fig 1: Identifying Fuses

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The electrical center can contain a greater number of fuses than those listed below. In such cases, these are not connected to a wiring harness.

FUSES FUNCTION

No	Amp.	Type	Function	Picture
1	15	+30	Steering column lock	FUSE BOX - 9-3 (944)
2	5	+30	Ignition Switch Module Column Integration Module	FUSE BOX - 9-3 (944)
3	10	+30	CD player/changer, front SID Connection, cellular phone	FUSE BOX - 9-3 (944)
4	10	+30	Main instrument display panel ACC MCC	FUSE BOX - 9-3 (944)
5	7.5	+30	Control module, front doors Shift Lever Module	FUSE BOX - 9-3 (944)
6	7.5	+30	Brake light switch	FUSE BOX - 9-3 (944)
7	20	+30	BCM Fuel filler flap	FUSE BOX - 9-3 (944)
8	30	+30	Passenger Door Module, front door	FUSE BOX - 9-3 (944)
9	10	+30	BCM	FUSE BOX - 9-3 (944)
10	30	+54	12V socket, cabin, including lighting Connection, trailer	FUSE BOX - 9-3 (944)
11	15	+30	Data link connector	FUSE BOX - 9-3 (944)
12	15	+30	Interior lighting Glove box lighting	FUSE BOX - 9-3 (944)
13	30		Accessories
14	20	+30	Main unit, audio Control panel, infotainment	FUSE BOX - 9-3 (944)
15	30	+30	Driver Door Module	FUSE BOX - 9-3 (944)
16			-
17	7.5	+15	Connection, electronic road tolls	FUSE BOX - 9-3 (944)
18	7.5	+54	MCC	FUSE BOX - 9-3 (944)
19			-
20	7.5	+15	Switch, headlamp beam length adjustment	FUSE BOX - 9-3 (944)
21	7.5	+15	Switch, clutch, cruise control Switch, brake, cruise control Connection, cellular phone MCC	FUSE BOX - 9-3 (944)
22	30	+15	Cigarette lighter	FUSE BOX - 9-3 (944)
23	40 maxi	+30	Ventilation fan	FUSE BOX - 9-3 (944)
24	7.5	+30	Airbag	FUSE BOX - 9-3 (944)
25			-
26	5	+15	Yaw sensor	FUSE BOX - 9-3 (944)
27			-
