Main components

WARNING: This page is about a different car, the 2005 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

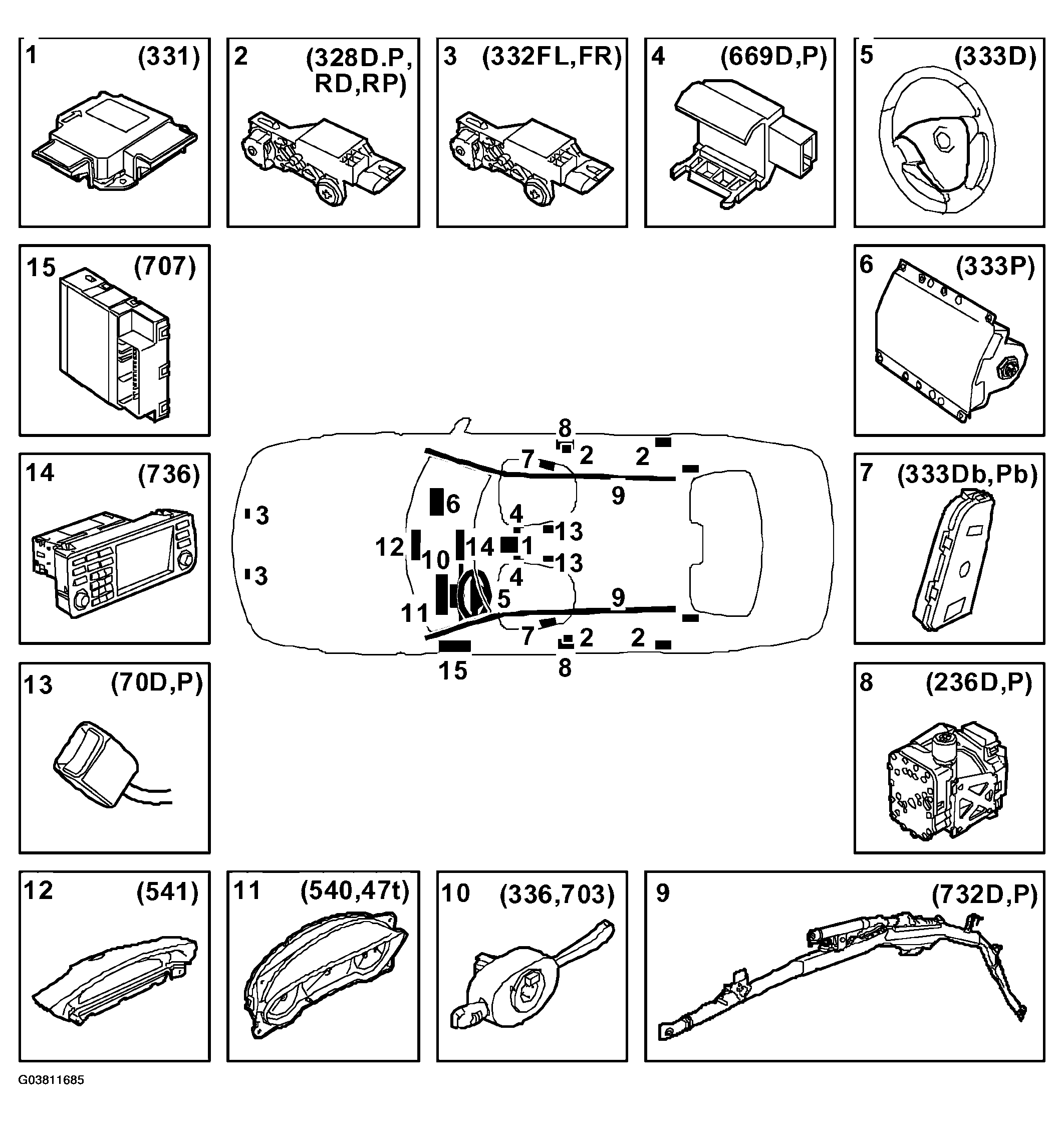

Fig 1: Identifying Main Components (4D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

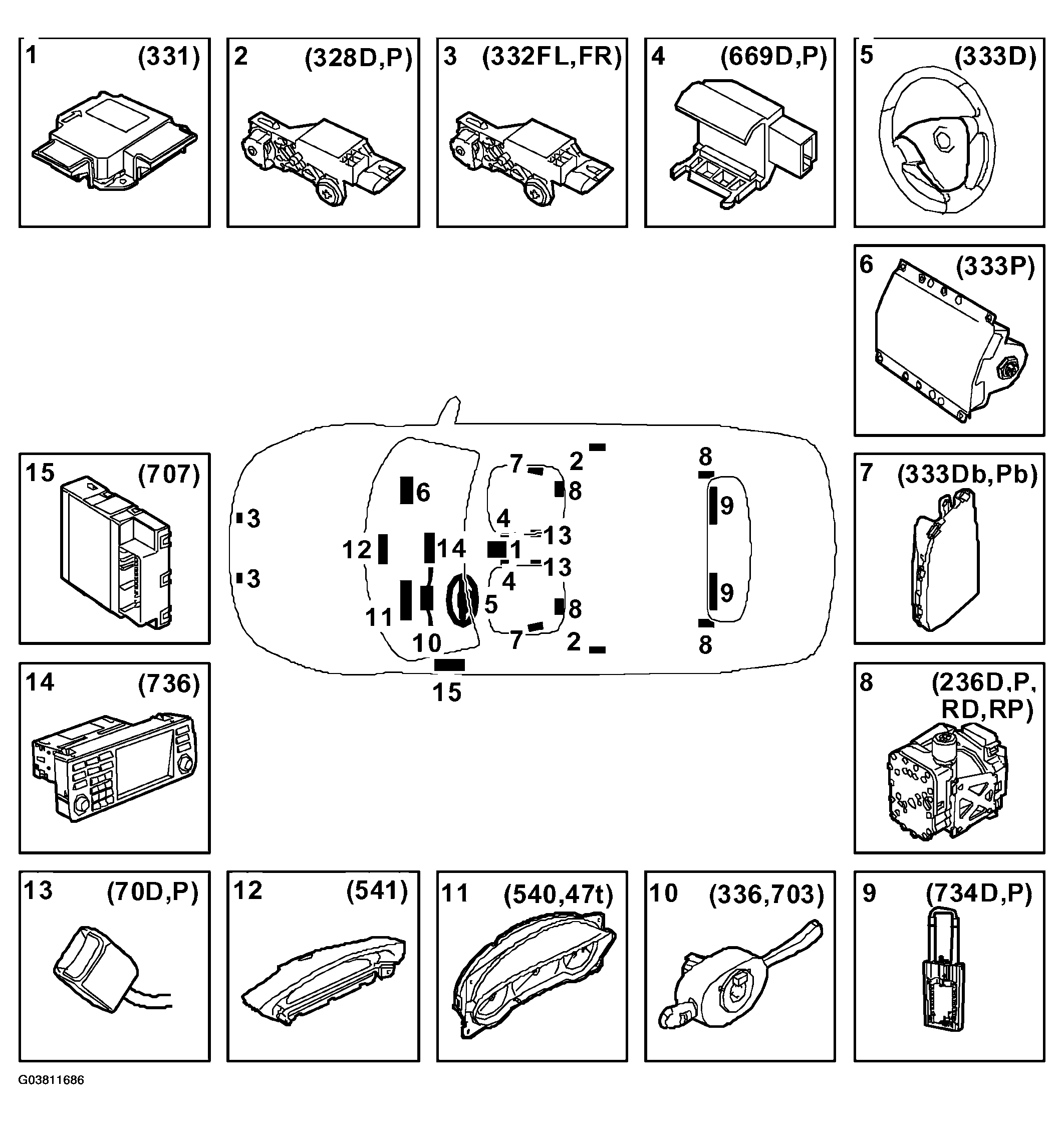

Fig 2: Identifying Main Components (CV)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

ACM on the exhaust tunnel between the front seats (331)
Impact sensor, side, front, driver/passenger side (328D/P)
4D: Impact sensor, side, rear, driver/passenger side (328D/RP)
Front impact sensor on the bumper rail under the radiator fairing, blue (332FL/FR)
Seat position sensor in the seat rail (669D, 669P)
Dual-stage driver airbag in the steering wheel (333D)
Dual-stage passenger airbag in the dashboard (333P)
Side airbag in the front seat (333Db, 333Pb)
Belt pretensioner (236D, 236P, 236RD, 236RP) (rear units in CV only)
4D: Inflatable curtain, driver/passenger side, behind headlining (732D/P)
CV: Activation unit, roll bar, driver/passenger side (734D/P)
Steering wheel contact roller (336) (Column integration unit 703)
MIU (540)
SID (541)
Seat-belt buckle (70D, 70P)
ICM (736)
BCM (707)
