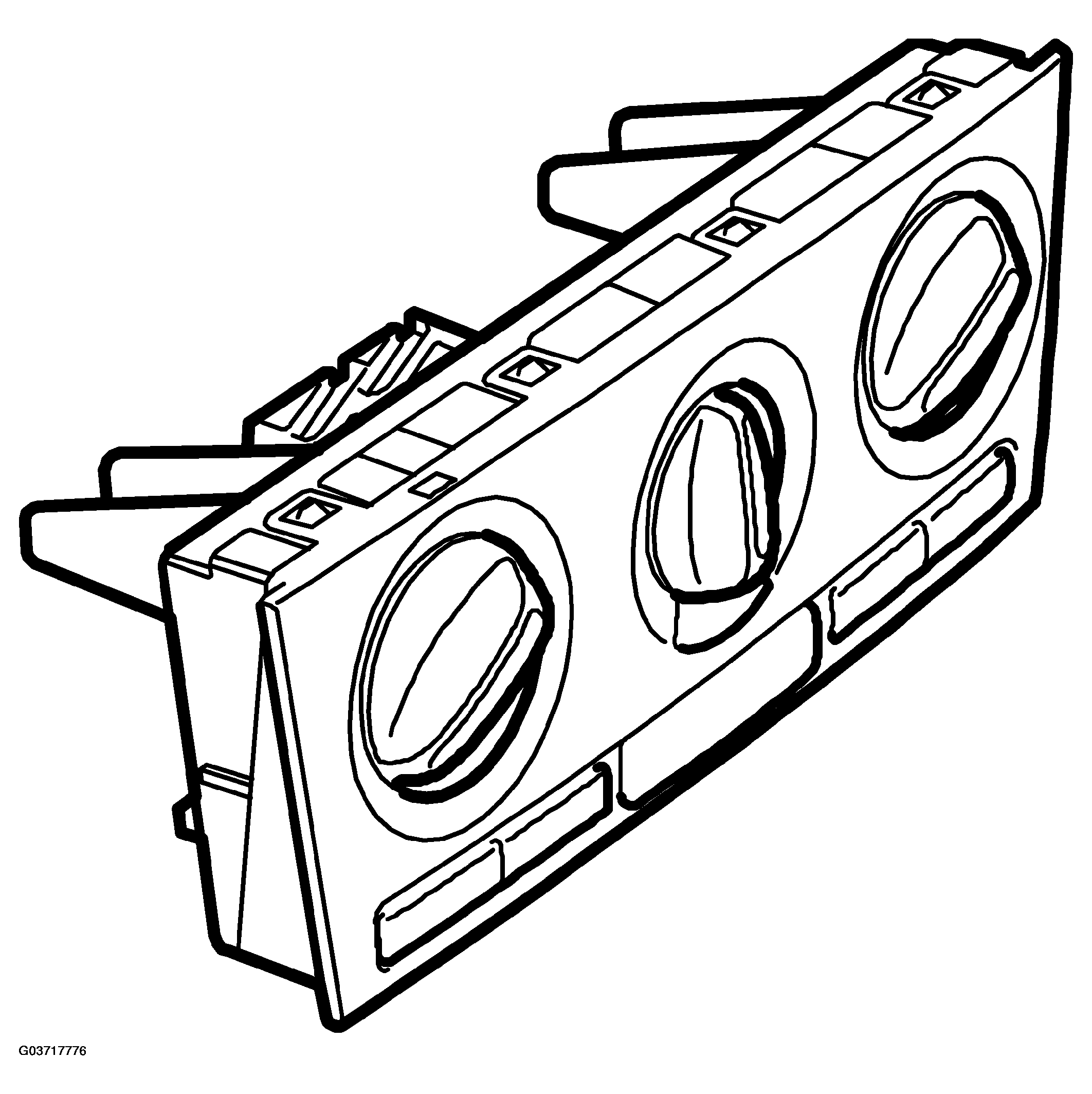

Control panel, manual climate control (504)
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - CONTROL PANEL, MANUAL CLIMATE CONTROL (504)
| Number of connector pins |
pcs |
32 |
| Power supply +15 |
pin no. |
30 |
| Power supply +30 |
pin no. |
17 |
| Ground |
pin no. |
10 |
