Relay, A/C (156)

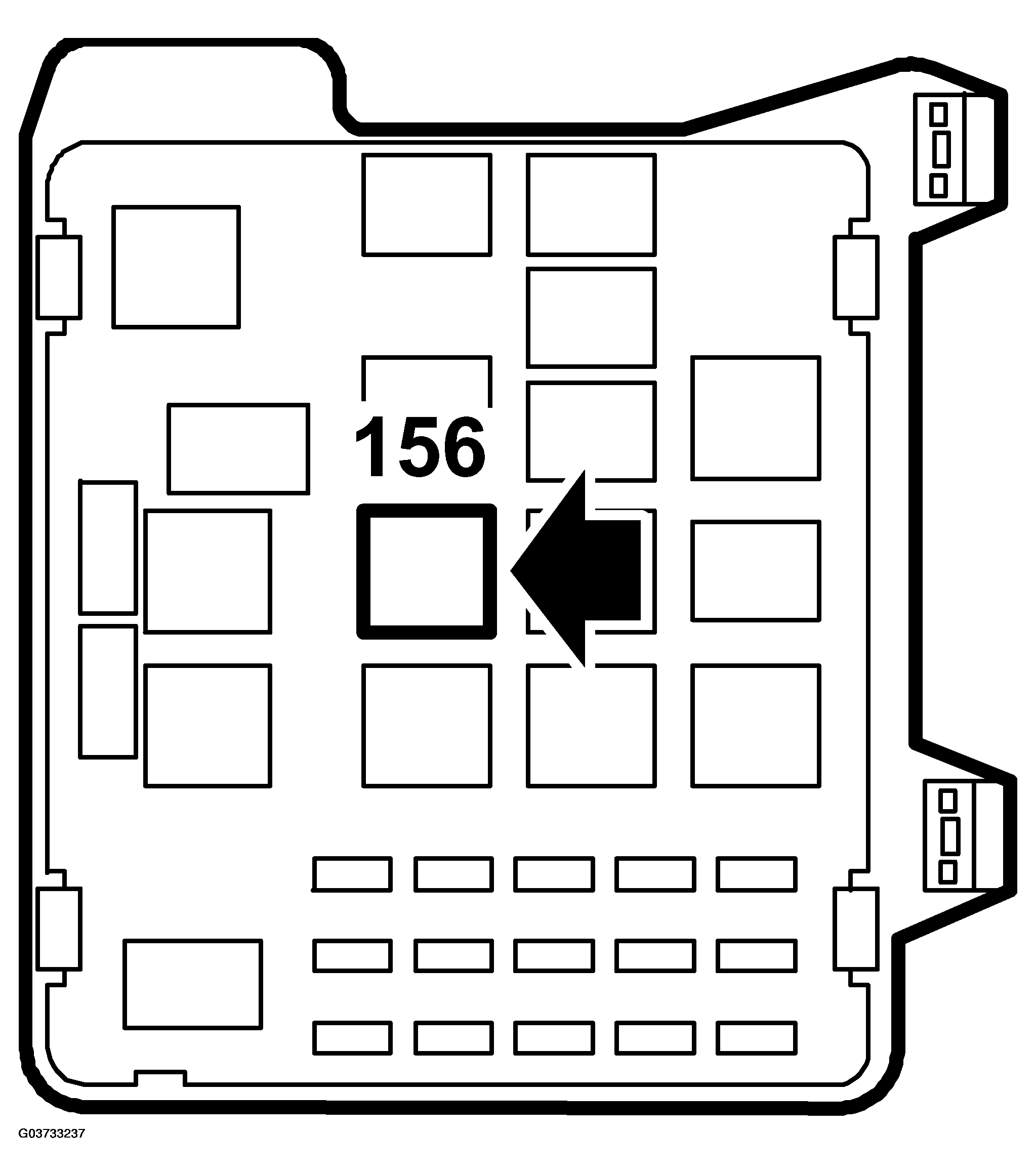

Fig 1: Identifying Relay - A/C (156)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

A/C RELAY DESCRIPTION

Location		In main relay board in engine bay
Resistance, coil at 20°C (68°F)	Ohm	85+/-5
Nominal control voltage	V	12
Rated current	A	30
