Grounding point G14: Notes

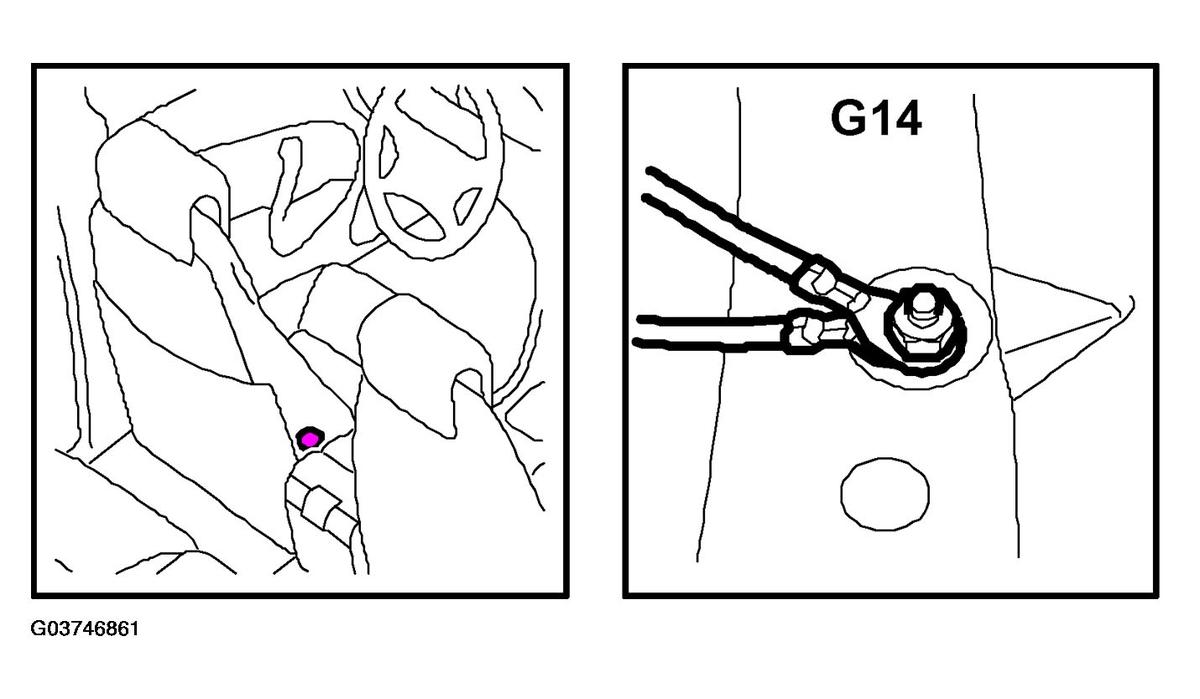

Fig 1: Identifying Grounding Point G14
G03746861Courtesy of SAAB-SCANIA OF AMERICA, INC.

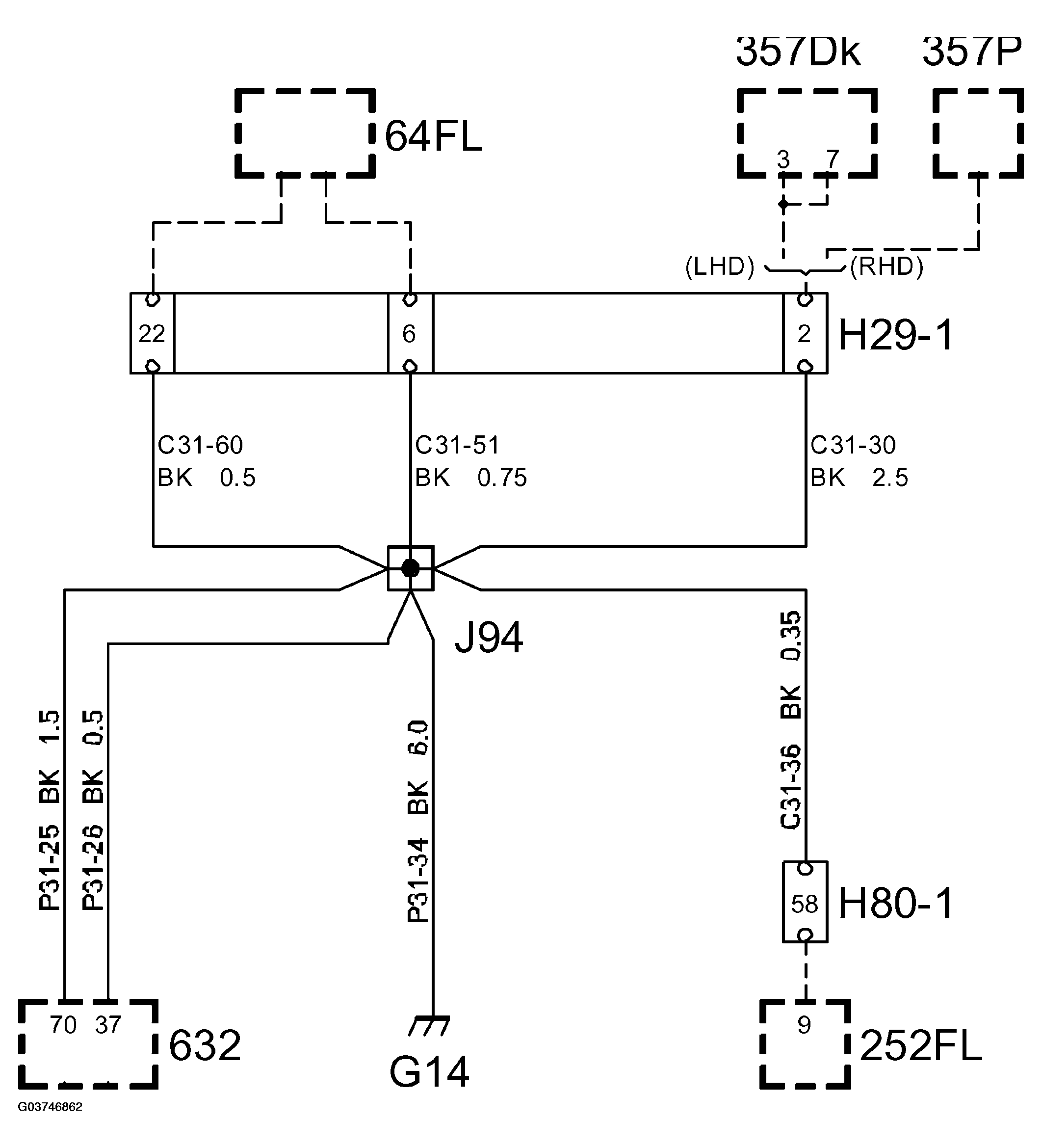

Fig 2: Grounding Point G14 Connection Diagram
G03746862Courtesy of SAAB-SCANIA OF AMERICA, INC.
