Main components, PSM system

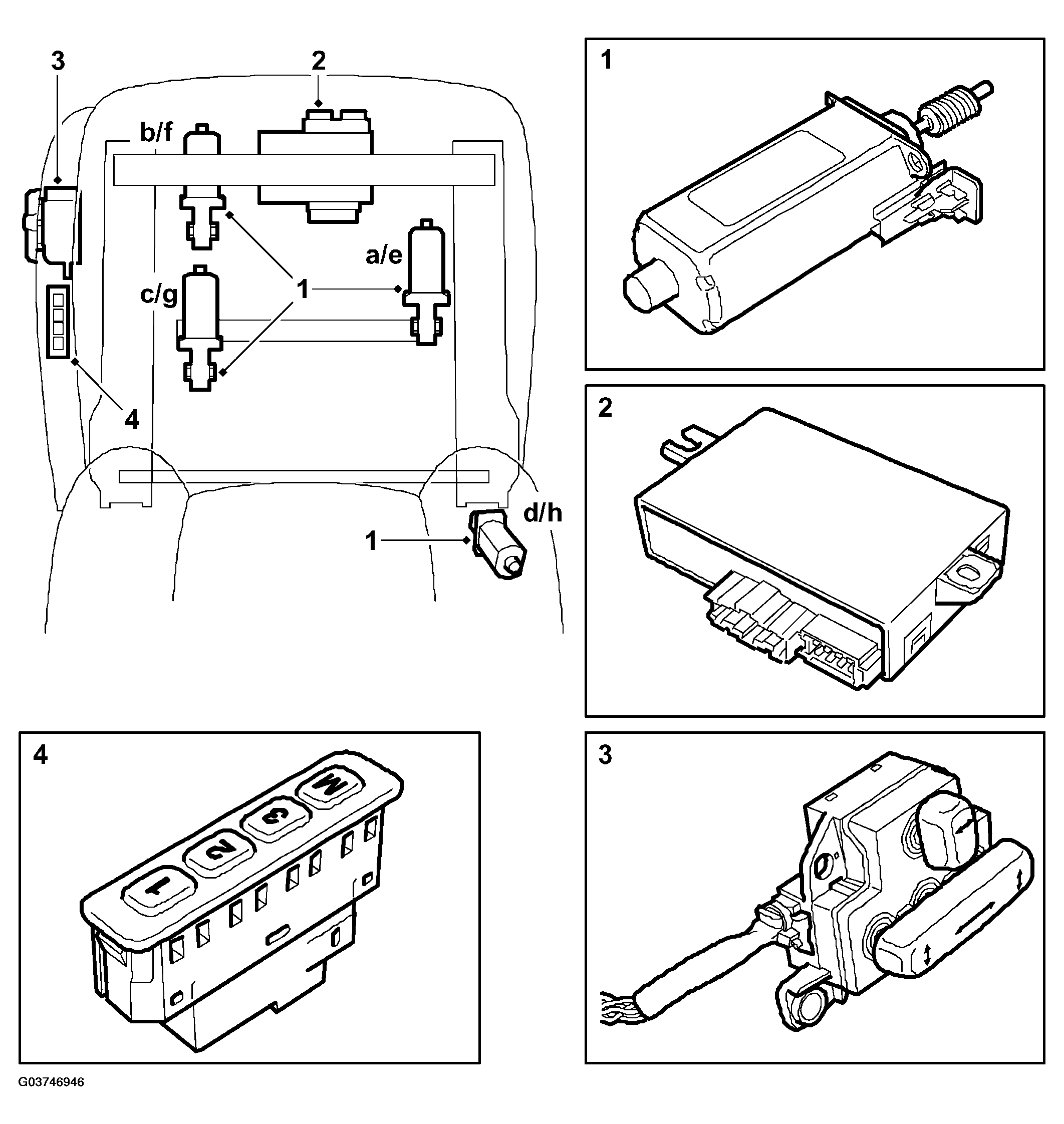

Fig 1: Identifying Main Components Of PSM System

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Electric motors with Hall sensors for driver's seat adjustment (357De-Dh)
2. PSM control module (357Dk)
3. Switch unit for seat adjustment (357D)
4. Memory buttons (357Dj)
