Grounding point G30: Notes

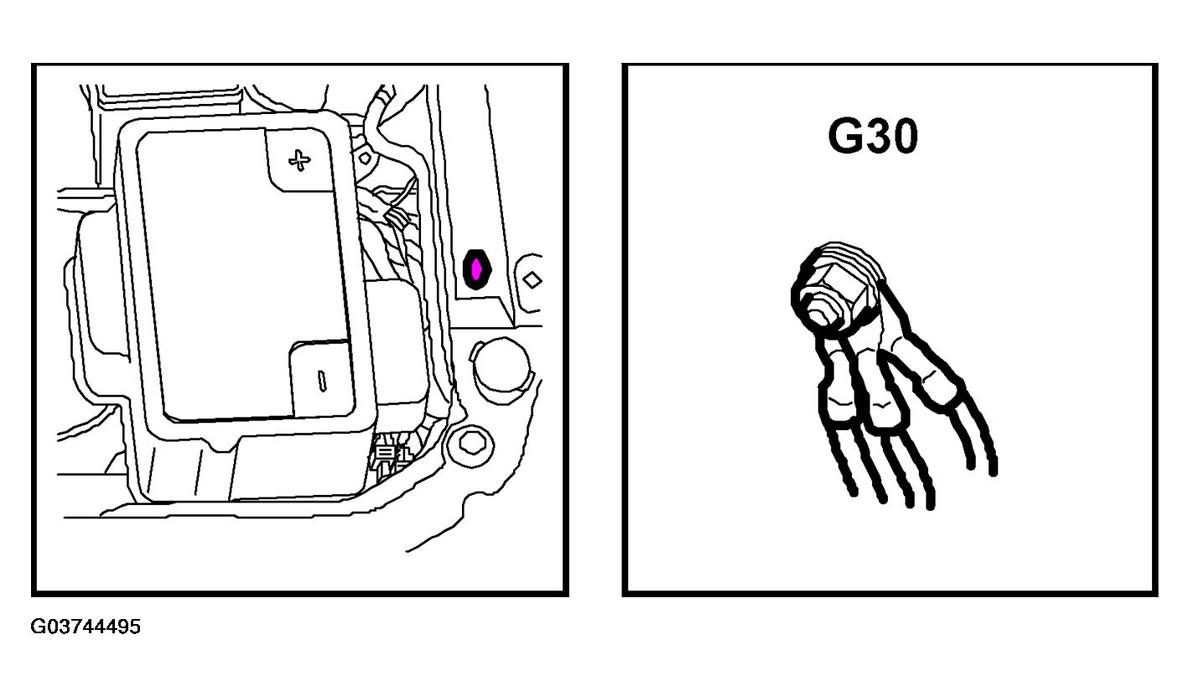

Fig 1: Identifying Grounding Point G30
G03744495Courtesy of SAAB-SCANIA OF AMERICA, INC.

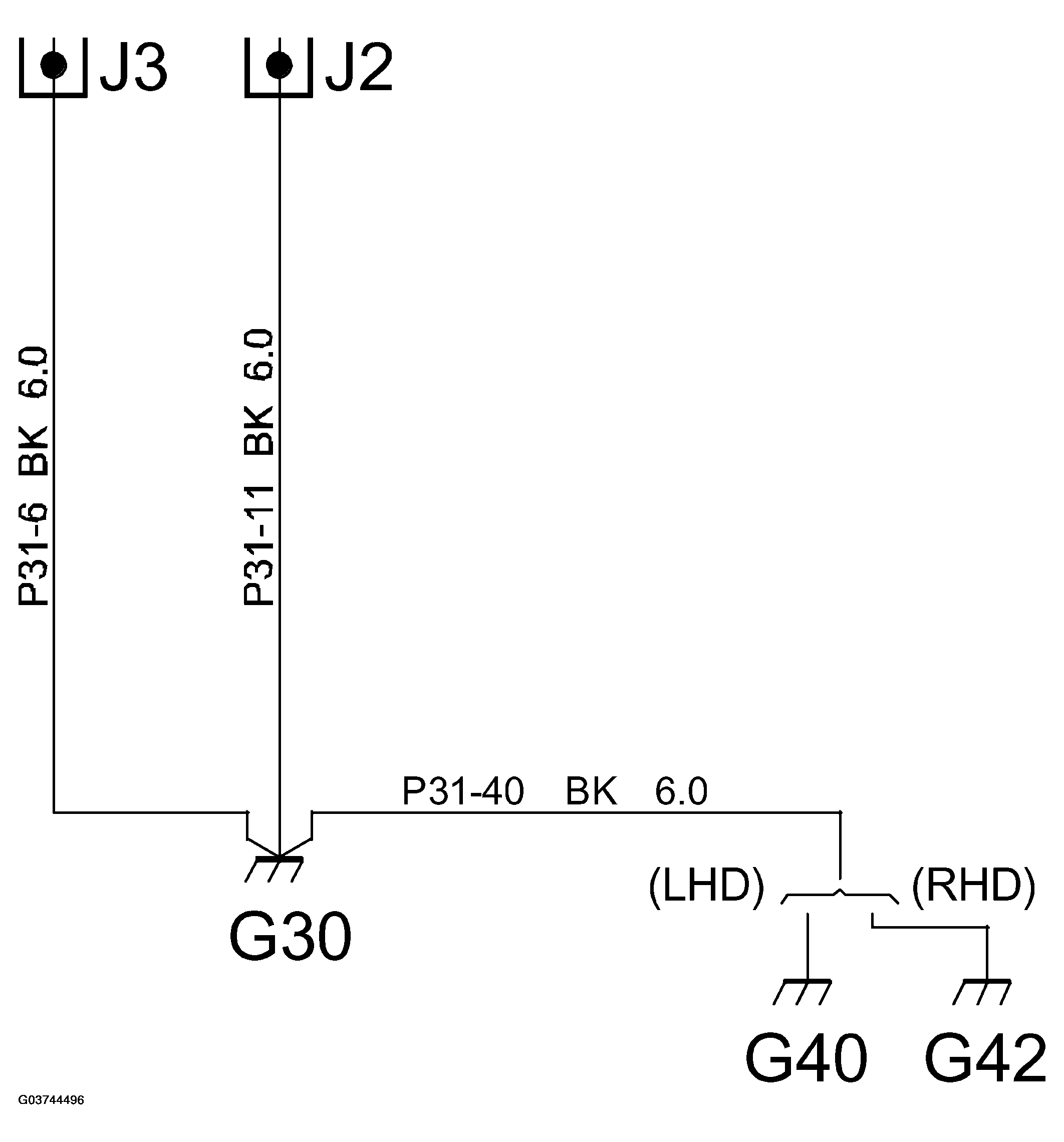

Fig 2: Circuit Diagram - Grounding Point G30
G03744496Courtesy of SAAB-SCANIA OF AMERICA, INC.
