Grounding point G2: Notes

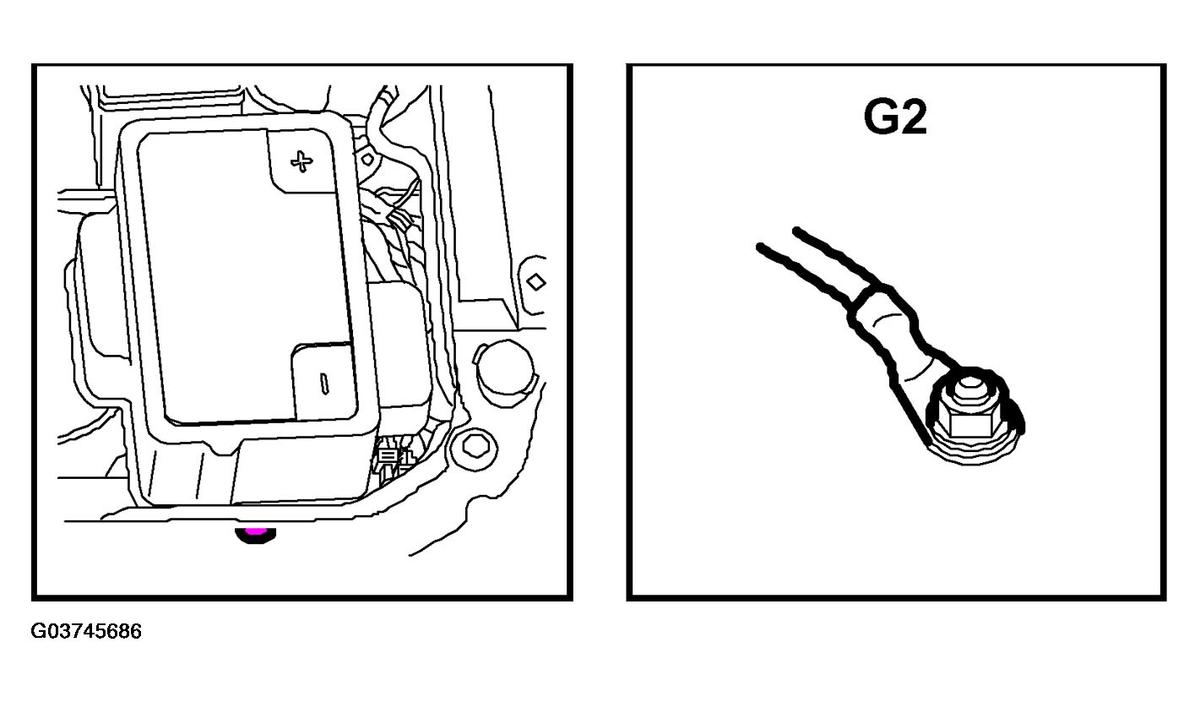

Fig 1: Identifying Grounding Point G2
G03745686Courtesy of SAAB-SCANIA OF AMERICA, INC.

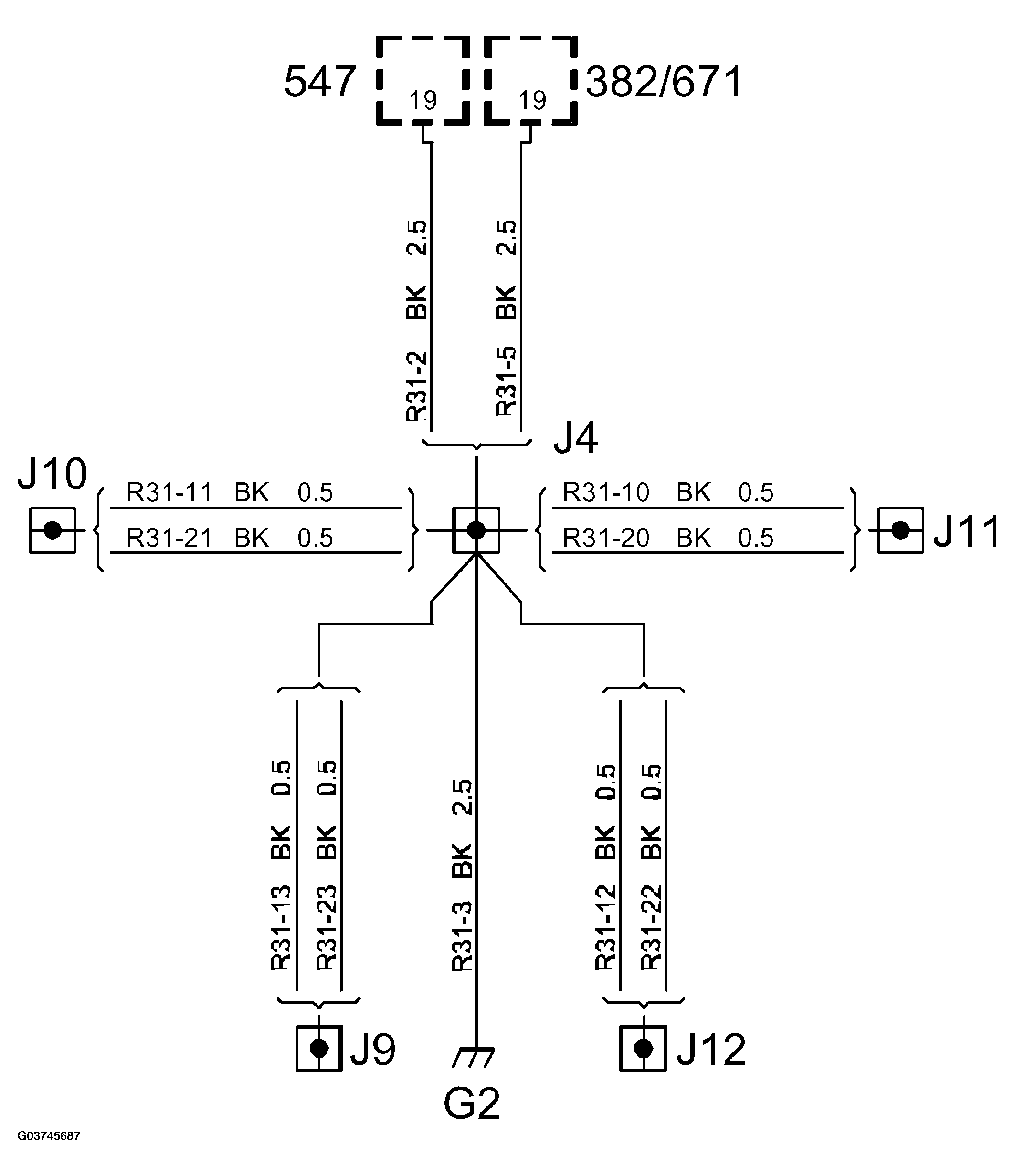

Fig 2: Identifying Grounding Point G2 Circuit Diagram
G03745687Courtesy of SAAB-SCANIA OF AMERICA, INC.
