Technical Description
›
Control module outputs
Control module outputs

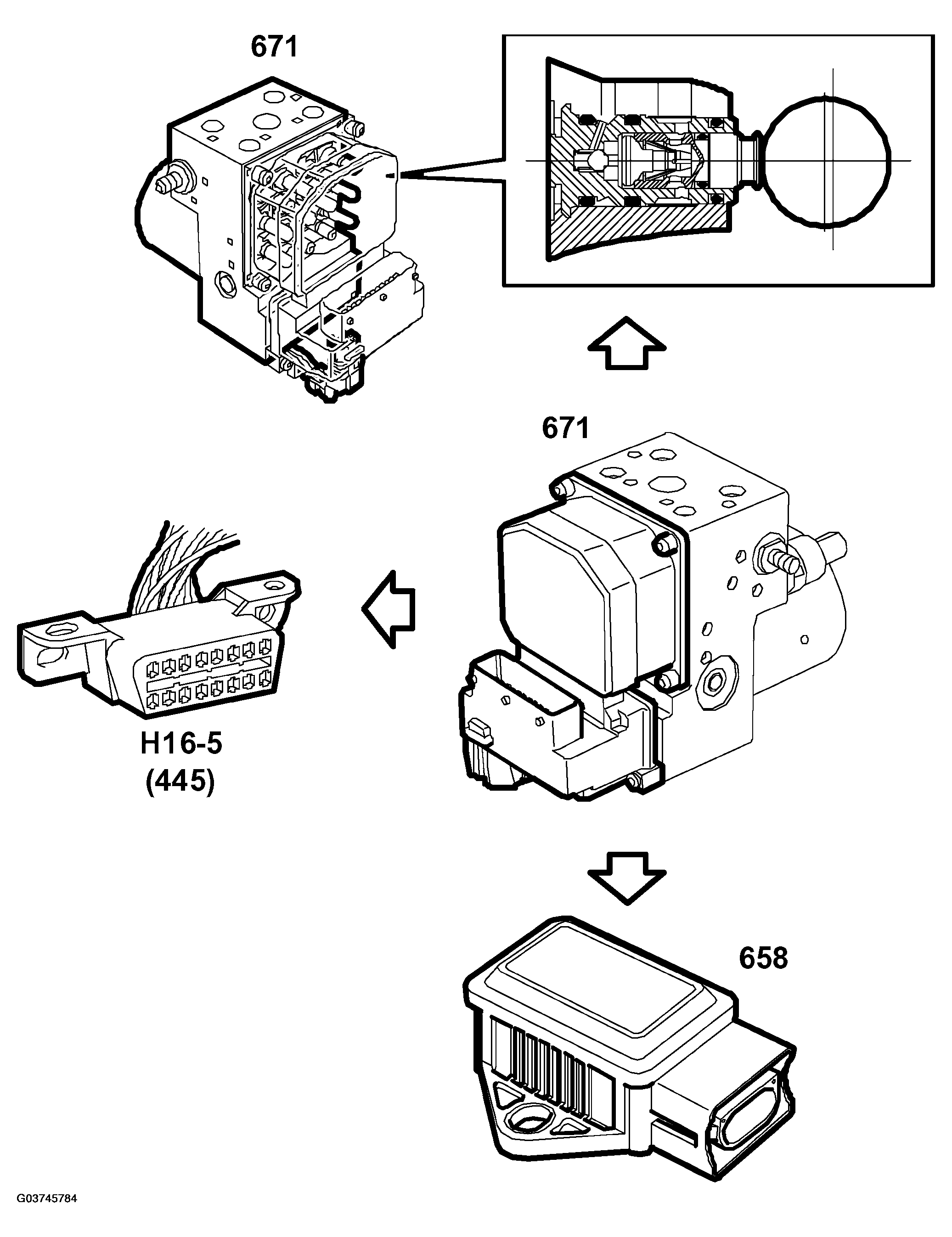

Fig 1: Communication Diagram Control Module Outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Diagnostic communication (445)
Reference signal to yaw rate sensor (658)
Wheel speed, front right
Wheel speed, rear left
