ABS function: Notes

Diagram 1: Braking force as a function of slip.

Vertical axis = Braking force

Horizontal axis = Slip

  1. Braking force
  2. Stable braking zone
  3. Unstable braking zone
  4. Slip

The ABS system provides optimum braking without any loss of directional stability.

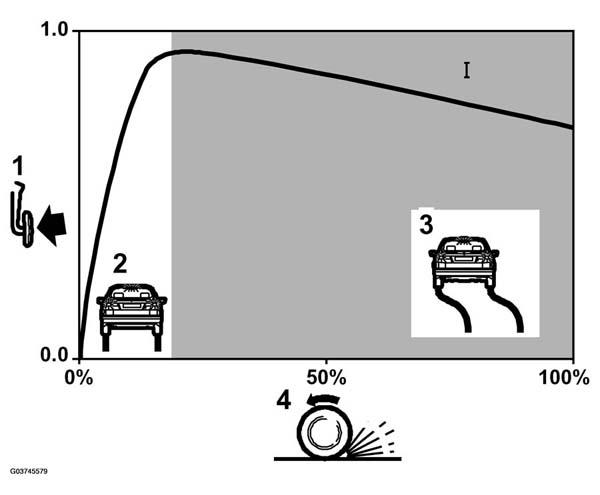

Fig 1: Braking Force/tire Slip Graph
G03745579Courtesy of SAAB-SCANIA OF AMERICA, INC.

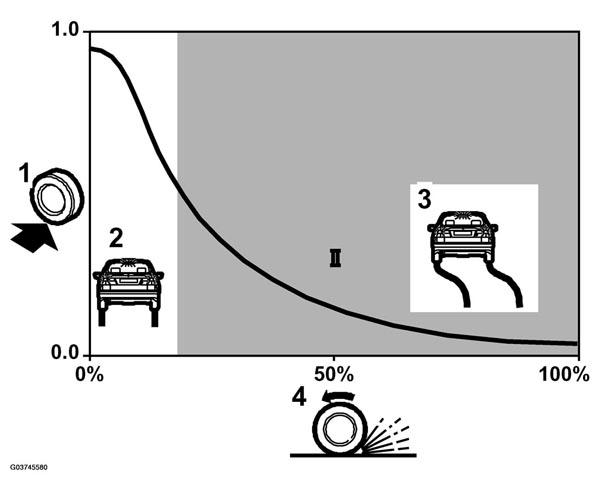

Fig 2: Braking Force/tire Slip Graph
G03745580Courtesy of SAAB-SCANIA OF AMERICA, INC.
