Home › Saab › 2004 › 9-5 Linear, Automatic › Repair and Diagnosis › Electrical › Horns › Lighting And Signaling Systems › Component Location › Grounding point G33 › Notes

Grounding point G33: Notes

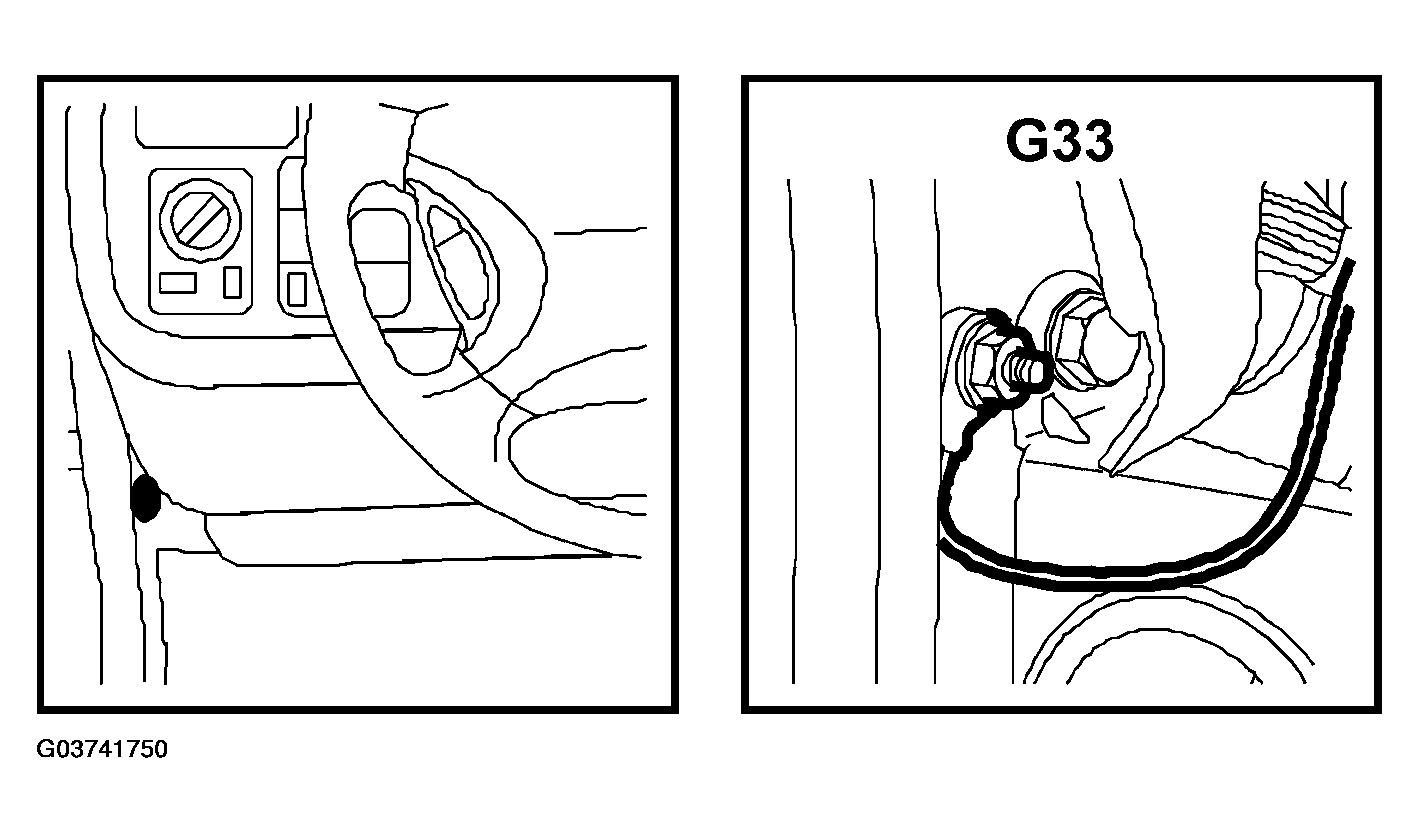

Fig 1: Identifying Grounding Point G33
G03741750Courtesy of SAAB-SCANIA OF AMERICA, INC.

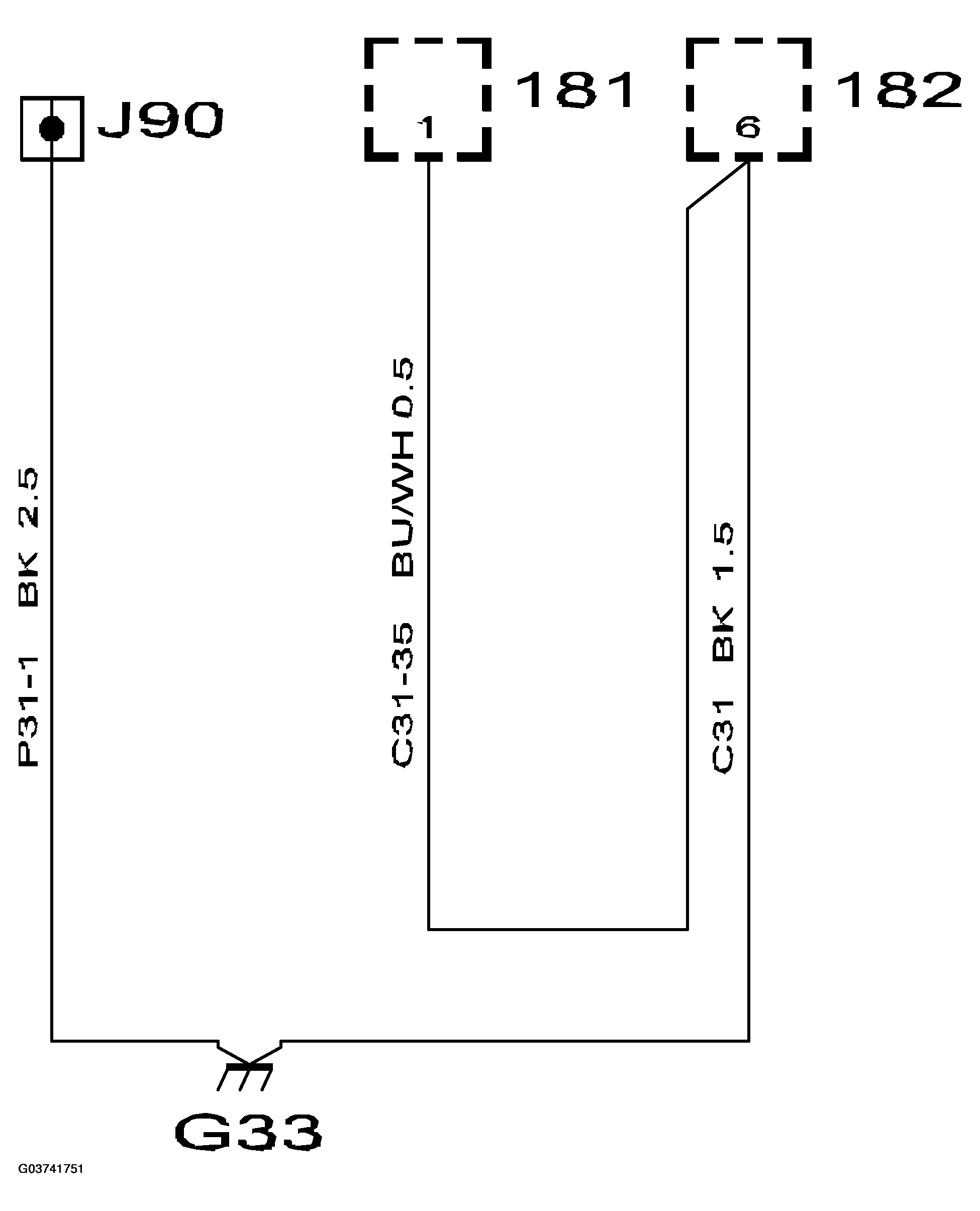

Fig 2: Wiring Diagram - Grounding Point G33
G03741751Courtesy of SAAB-SCANIA OF AMERICA, INC.
