Grounding point G42: Notes

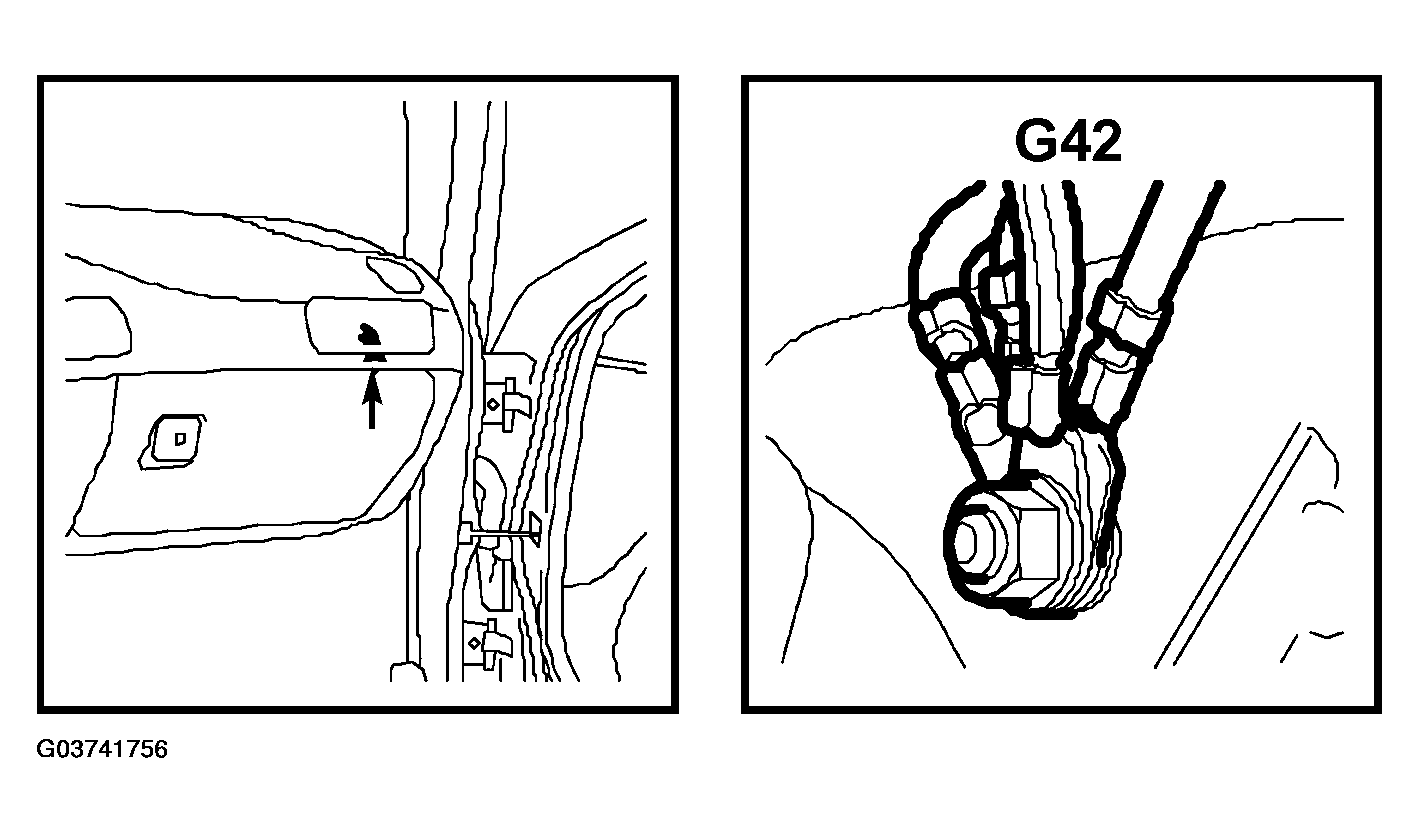

Fig 1: Identifying Grounding Point G42
G03741756Courtesy of SAAB-SCANIA OF AMERICA, INC.

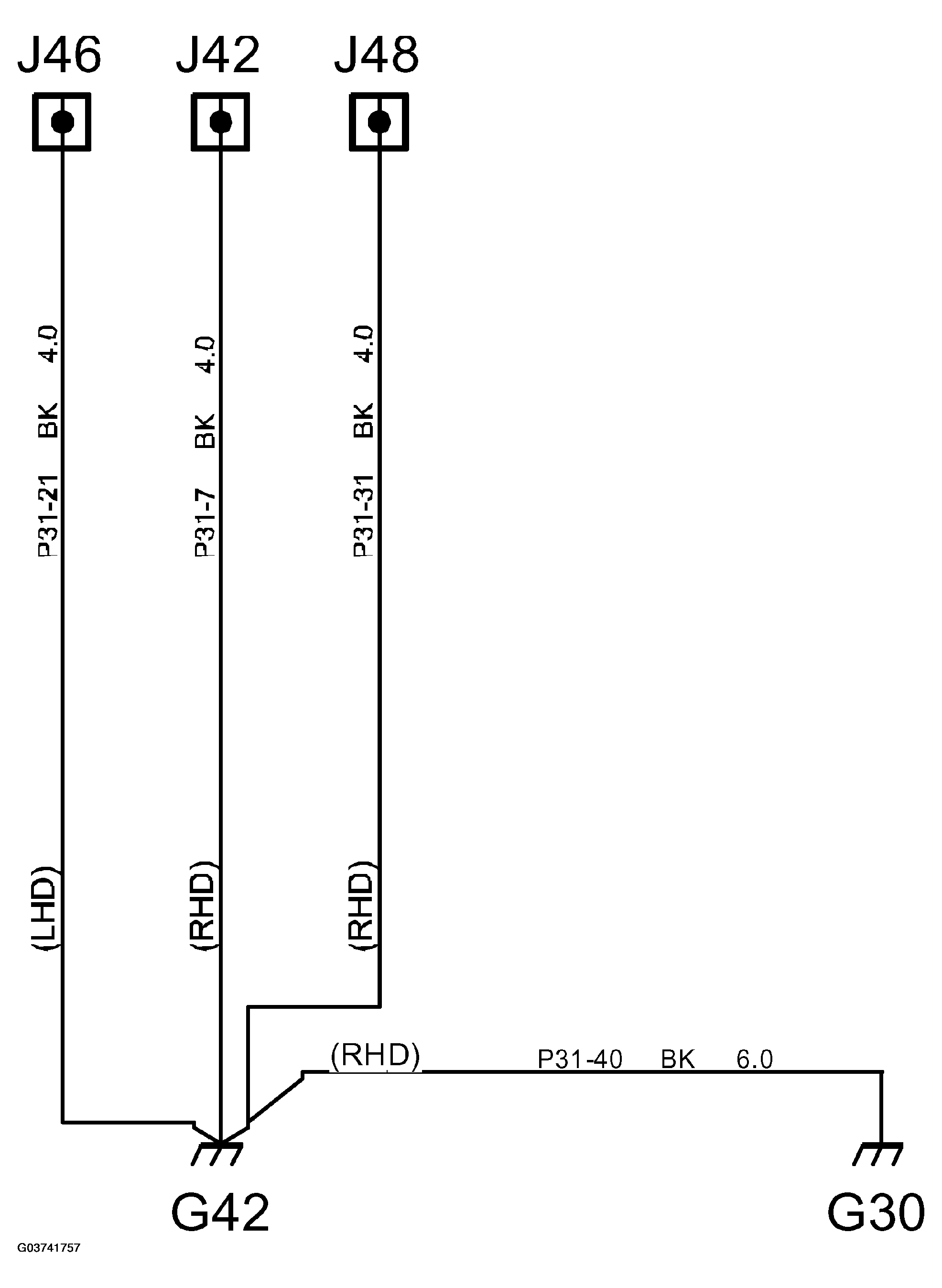

Fig 2: Wiring Diagram - Grounding Point G42
G03741757Courtesy of SAAB-SCANIA OF AMERICA, INC.
