Home › Saab › 2004 › 9-5 Linear, Automatic › Repair and Diagnosis › Electrical › Horns › Lighting And Signaling Systems › Component Location › Grounding point, G41P › Notes

Grounding point, G41P: Notes

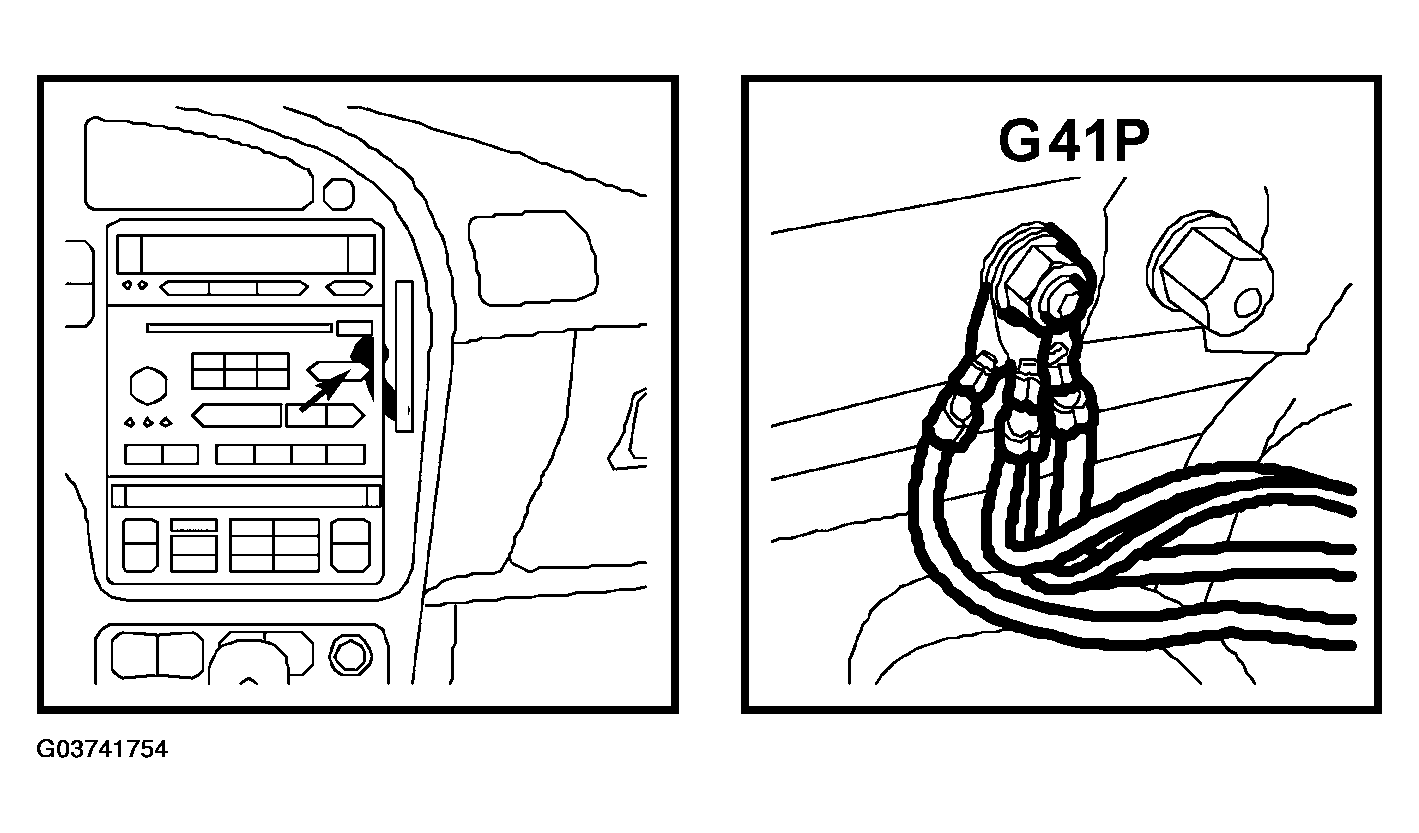

Fig 1: Identifying Grounding Point, G41P
G03741754Courtesy of SAAB-SCANIA OF AMERICA, INC.

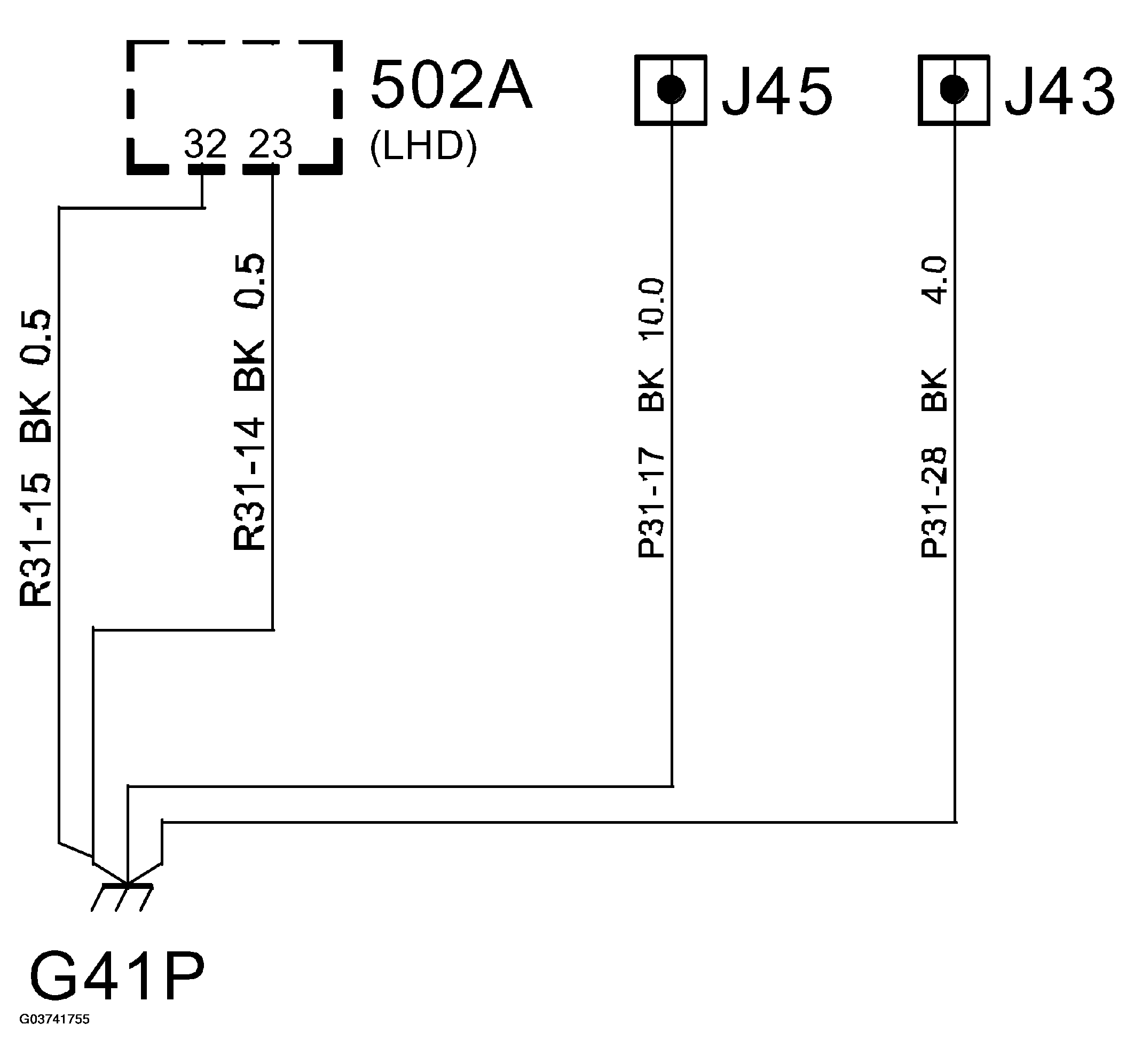

Fig 2: Wiring Diagram - Grounding Point, G41P
G03741755Courtesy of SAAB-SCANIA OF AMERICA, INC.
