Grounding point G2: Notes

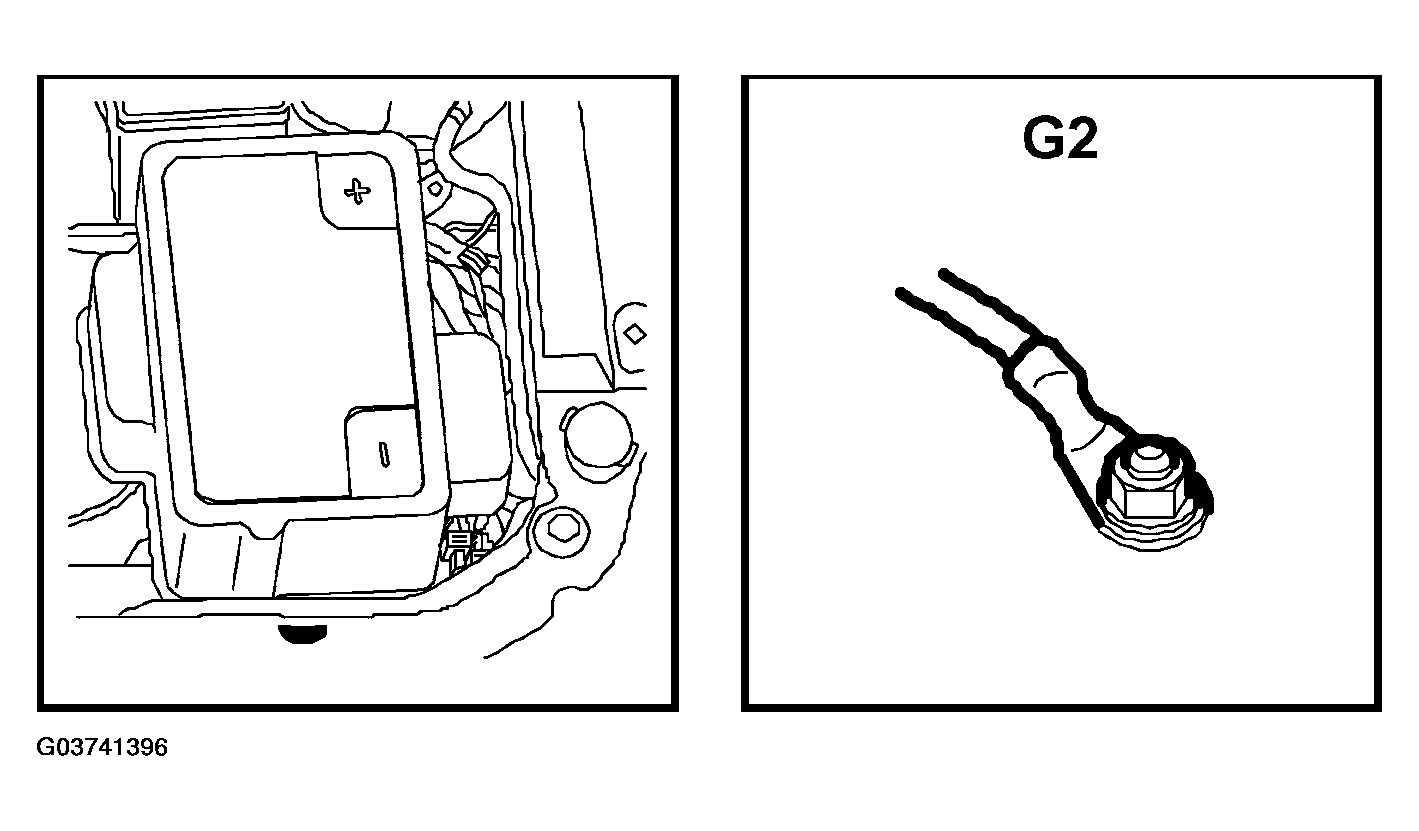

Fig 1: Identifying Grounding Point G2
G03741396Courtesy of SAAB-SCANIA OF AMERICA, INC.

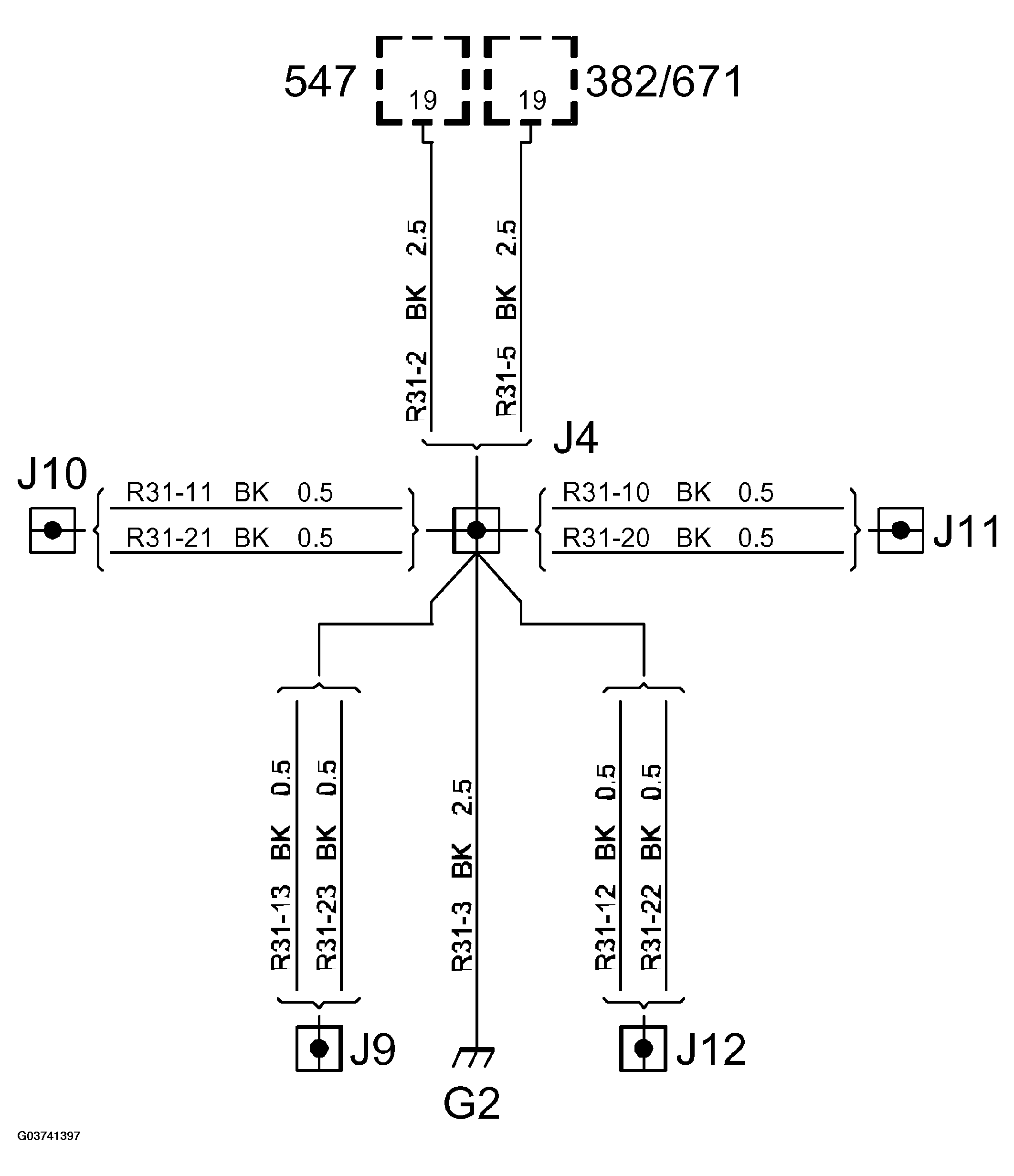

Fig 2: Grounding Point G2 Circuit Diagram
G03741397Courtesy of SAAB-SCANIA OF AMERICA, INC.
