Grounding point G24: Notes

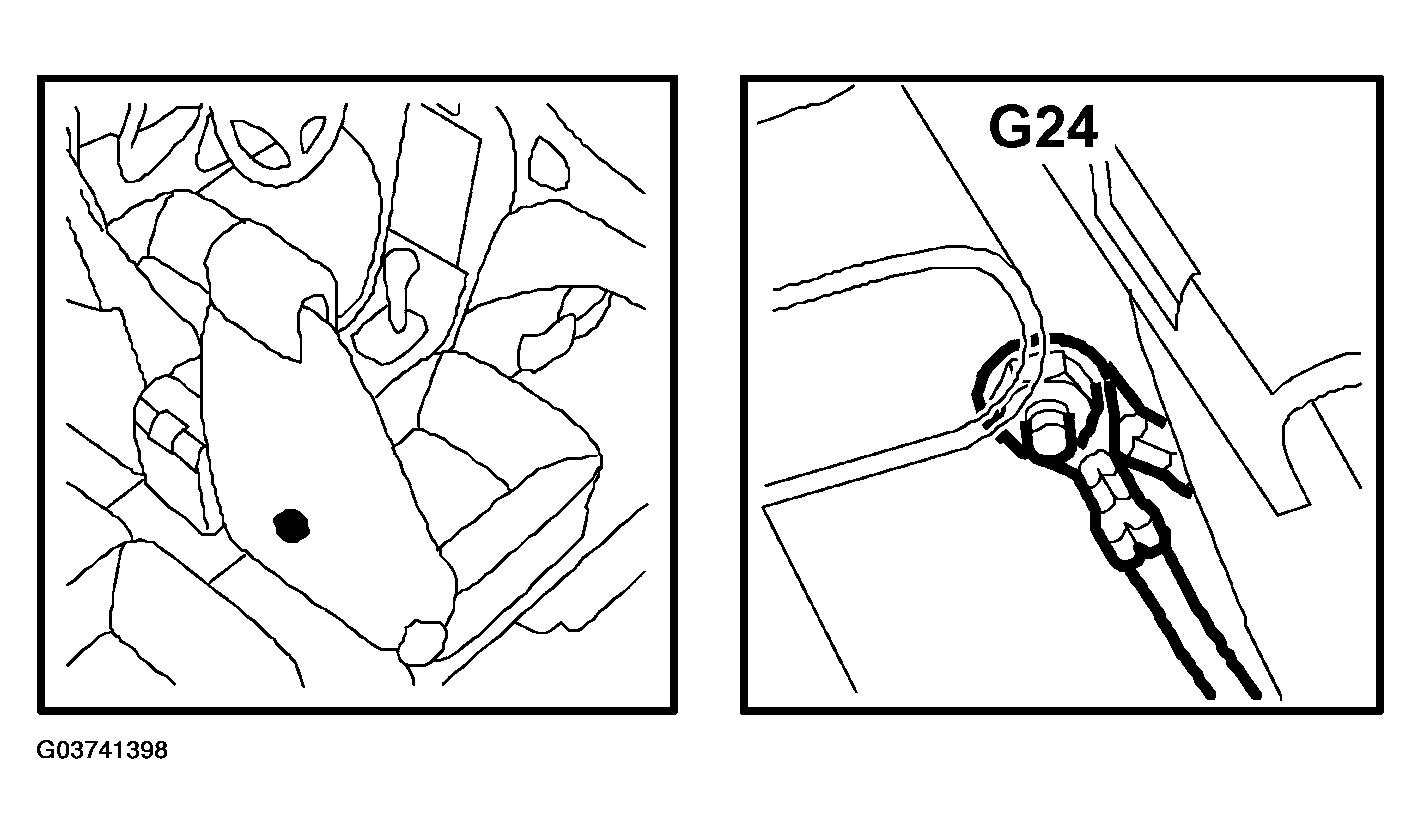

Fig 1: Identifying Grounding Point G24
G03741398Courtesy of SAAB-SCANIA OF AMERICA, INC.

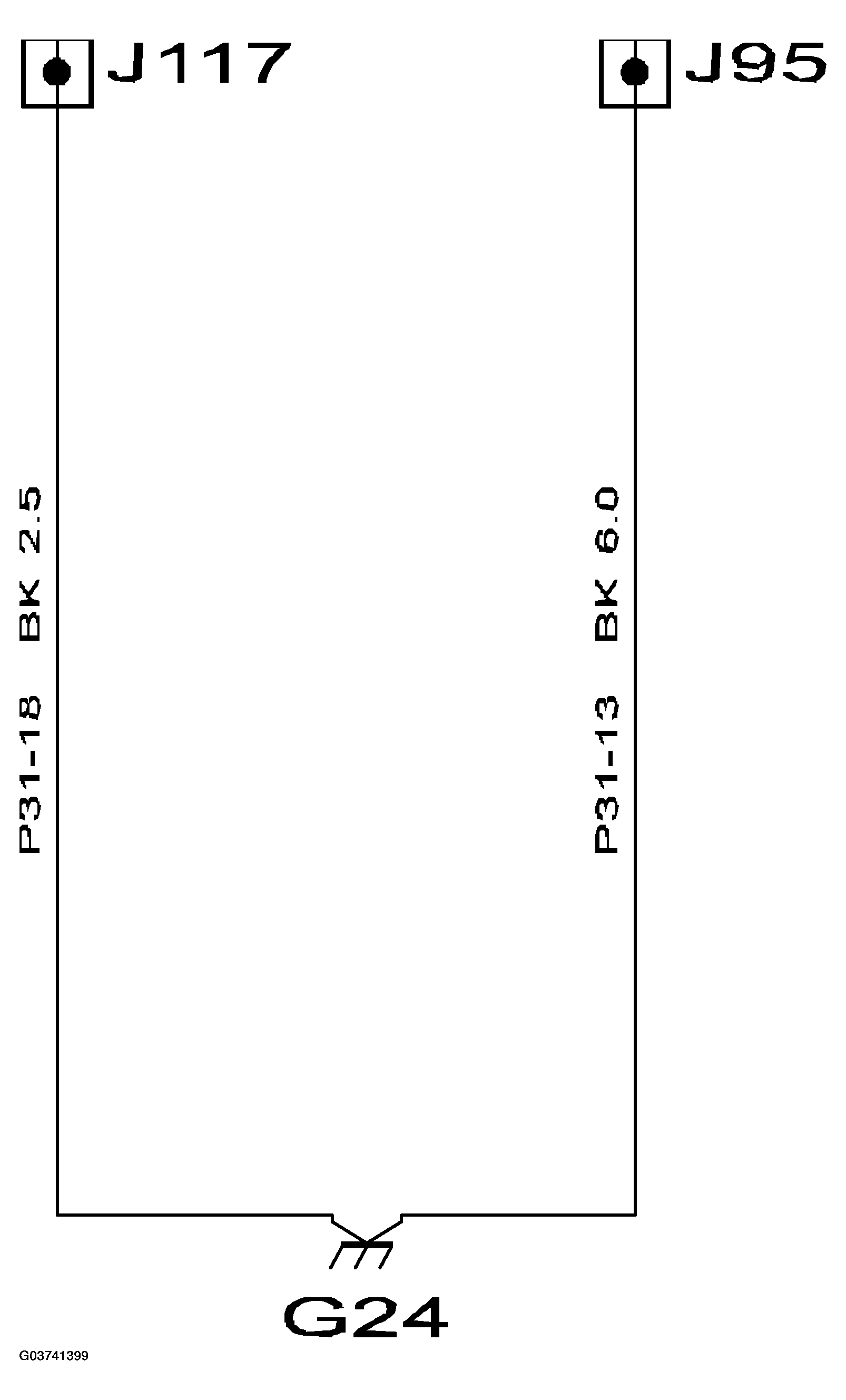

Fig 2: Grounding point G24 Circuit Diagram
G03741399Courtesy of SAAB-SCANIA OF AMERICA, INC.
