Fuel level sensor

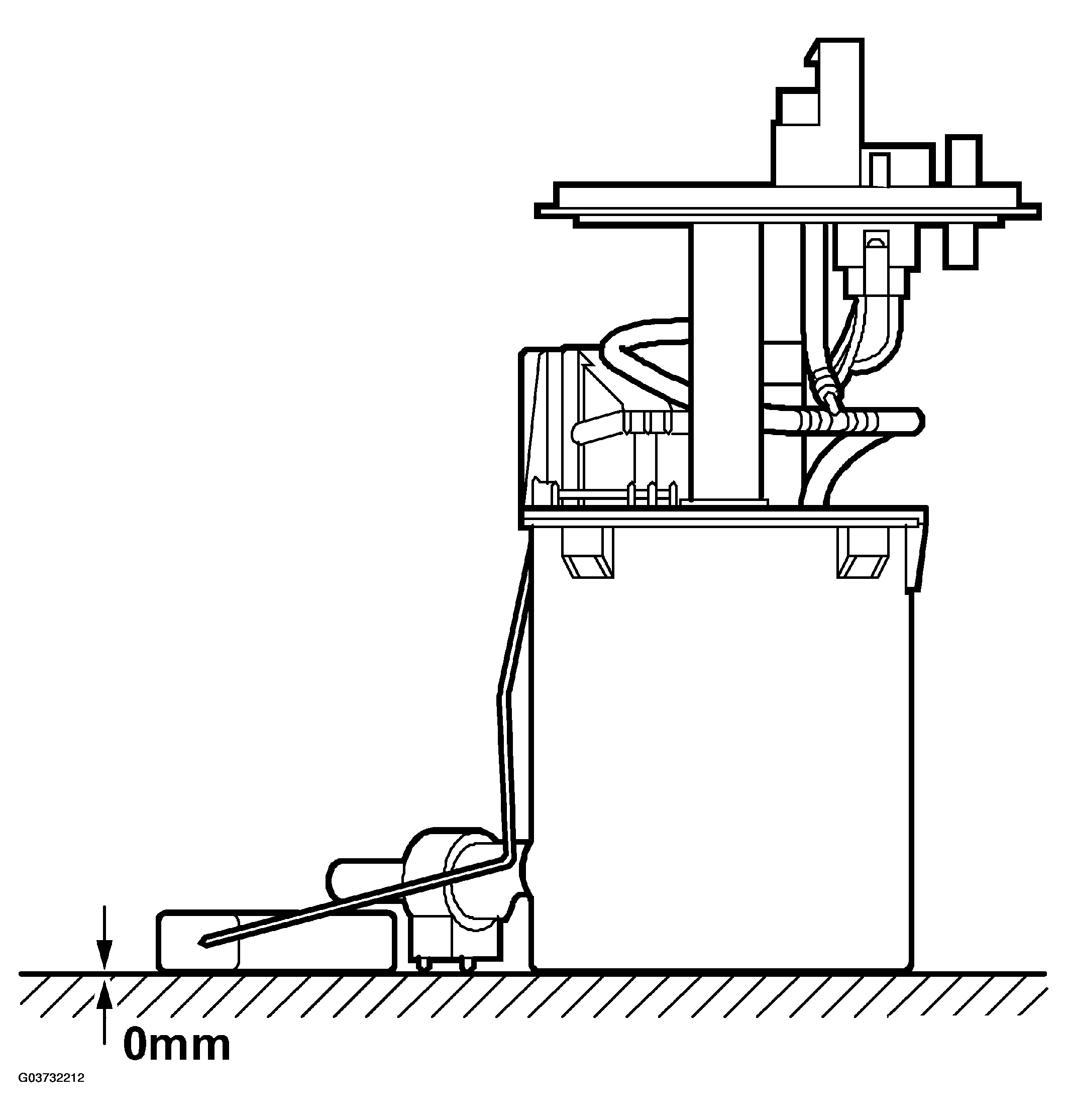

Fig 1: Identifying Fuel Level Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

FUEL LEVEL SENSOR DESCRIPTION

Resistance, empty tank	Ohms: 50+/-1.5
Resistance, full tank	Ohms: 425+/-6.5
