To fit

  1. Spray the connector with Kontakt 61 (part no. 30 04 520).

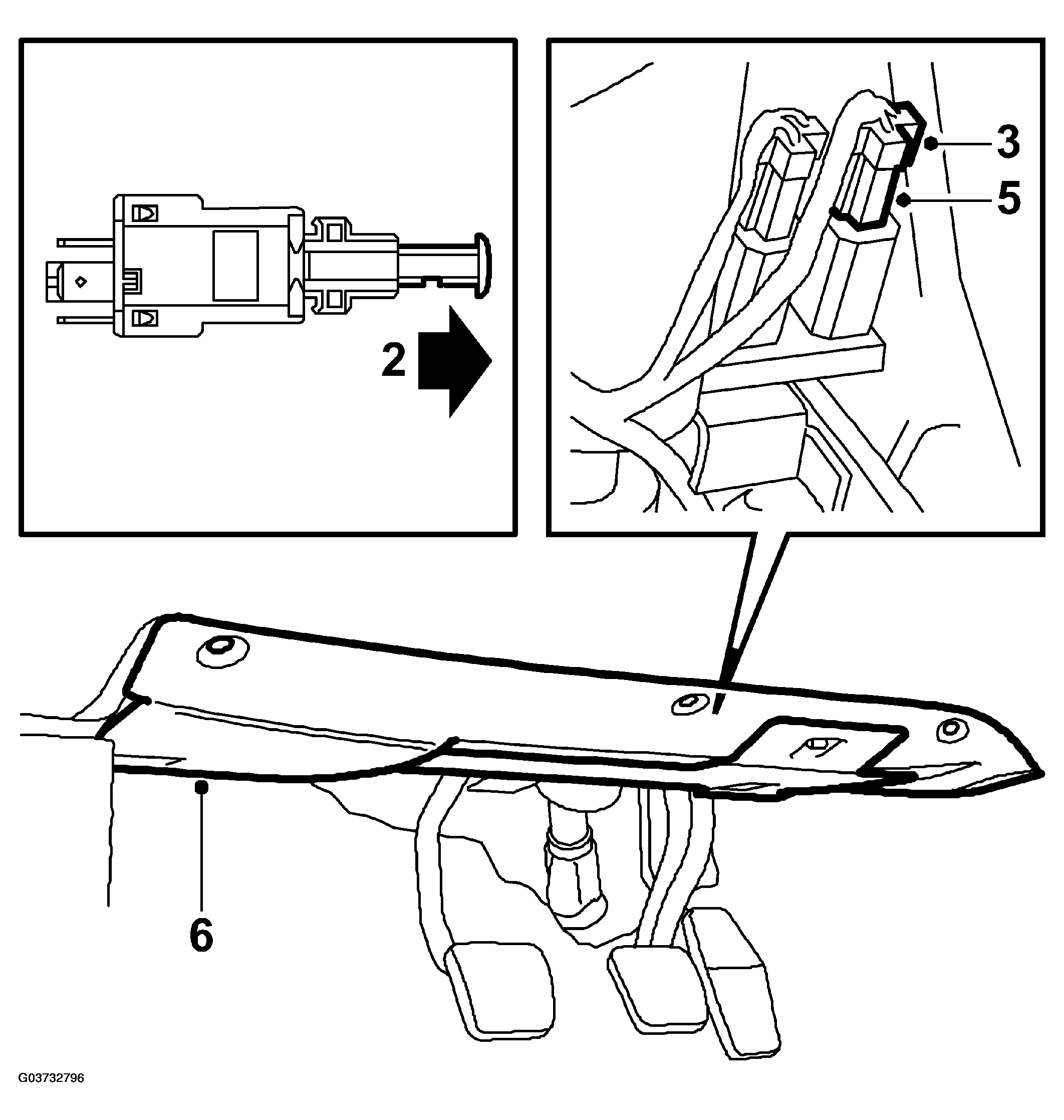

    Fig 1: Illustration For Steps 2-3 & 5-6
    G03732796Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Carefully pull out the switch pushrod until it stops.
  3. Depress the brake pedal and fit the switch.
  4. Carefully release the pedal.
  5. Plug in the connector.
  6. Fit the pedal bracket cover with 3 screws and a clip.
