Home › Saab › 2004 › 9-5 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T7 Fuel Control System › Adjustment - Replacement › EVAP pressure sensor › To remove

To remove

  1. Remove the fuel tank, see ADJUSTMENT/REPLACEMENT , Fuel tank .
  2. Blow clean around the pressure sensor.

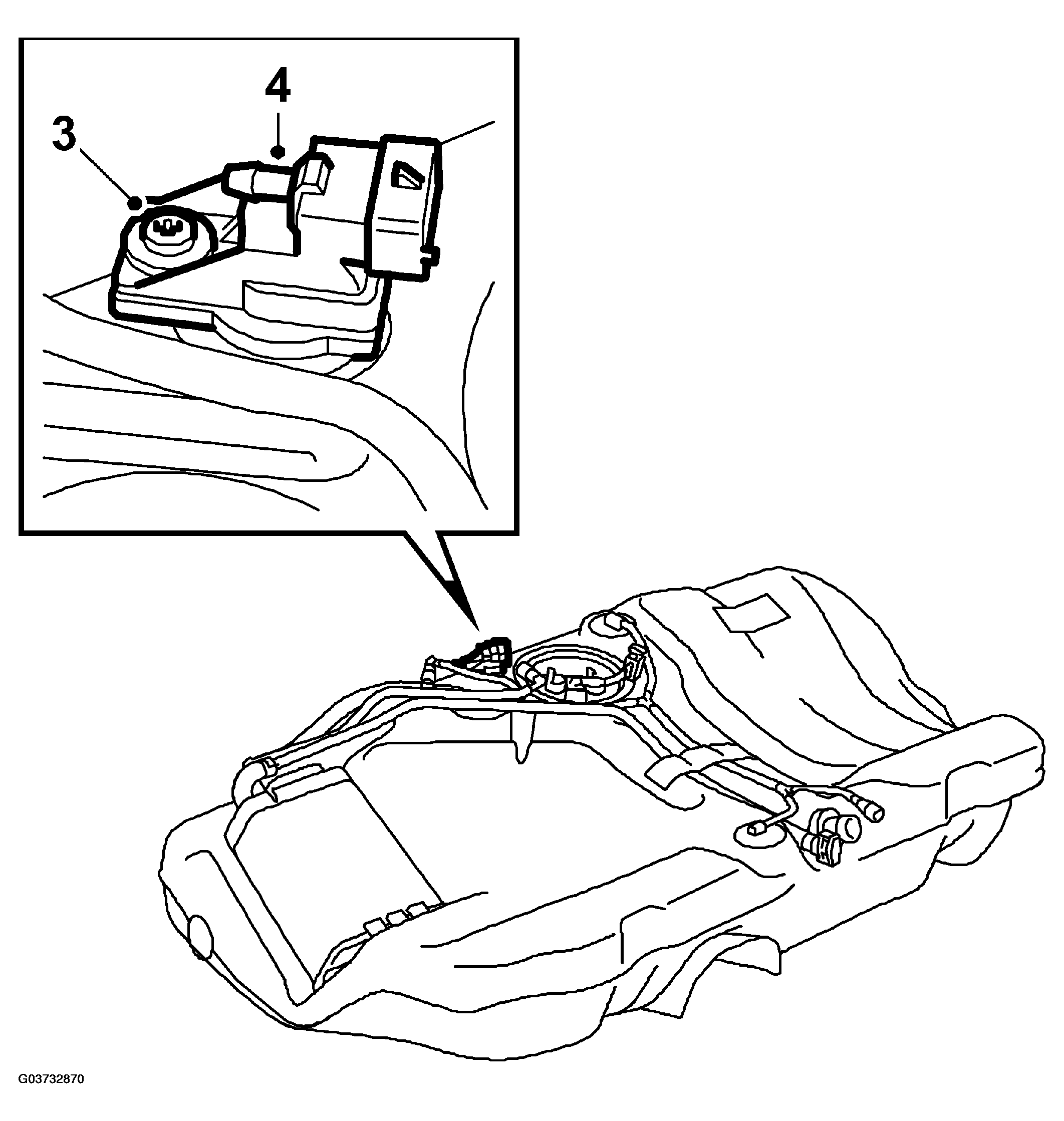

    Fig 1: Illustration For Steps 3 To 4
    G03732870Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Undo the screw on the pressure sensor.
  4. Carefully remove the pressure sensor.
