Home › Saab › 2004 › 9-5 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T7 Fuel Control System › Adjustment - Replacement › Manifold absolute pressure sensor › To fit

To fit

  1. Apply vaseline (part no. 30 20 271) or equivalent to the sensor threads. Fit the sensor.

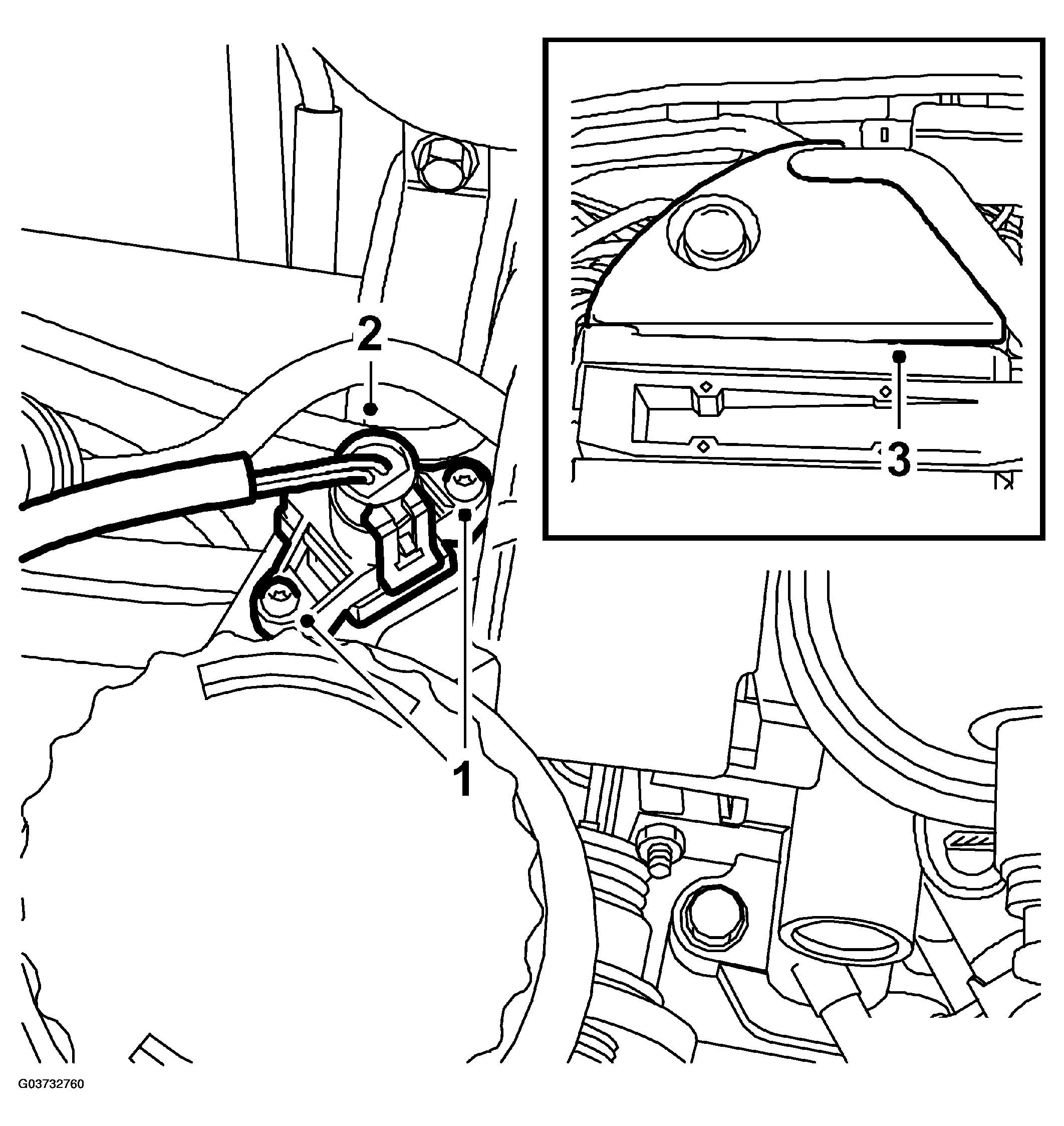

    Fig 1: Illustration For Steps 1 To 3
    G03732760Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
  3. Fit the upper engine cover.
