Home › Saab › 2004 › 9-5 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T7 Fuel Control System › Adjustment - Replacement › Temperature sensor, engine coolant › To remove

To remove

  1. Carefully loosen the coolant expansion tank cap (to release any pressure) and then screw it back on.

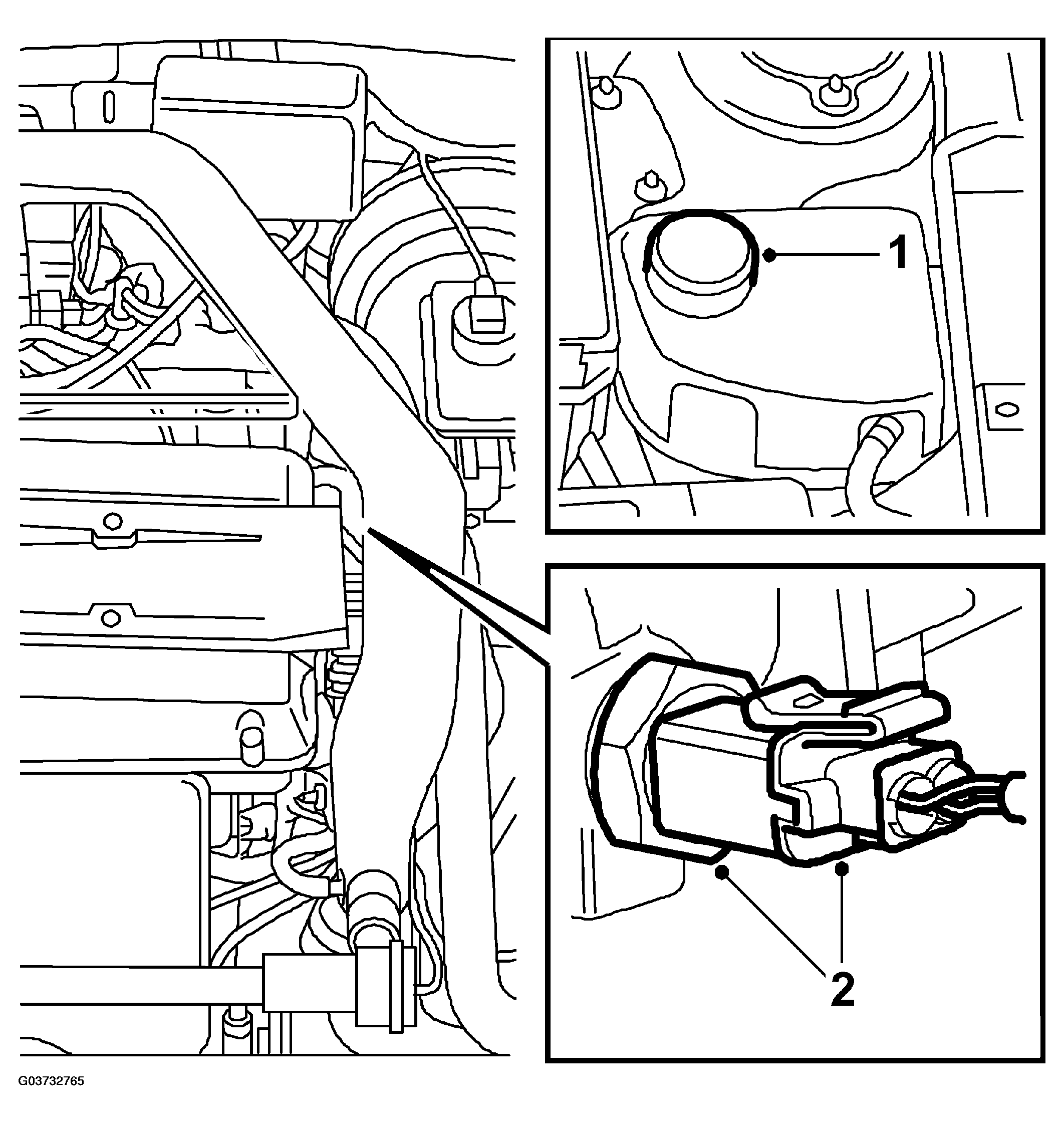

    Fig 1: Illustration For Steps 1 To 2
    G03732765Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector and remove the sensor using a 19 mm dog-leg spanner.
