TRIONIC T7 Fuel Control System
›
Component Location
›
Connector H80-1
Connector H80-1

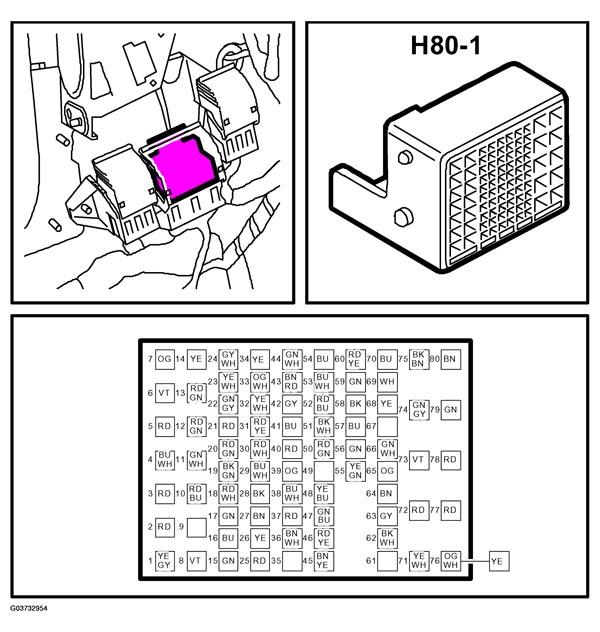

Fig 1: Identifying Connector H80-1 Connector Pinout
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
