TRIONIC T7 Fuel Control System
›
Component Location
›
Crimp J18, petrol engine harness
Crimp J18, petrol engine harness

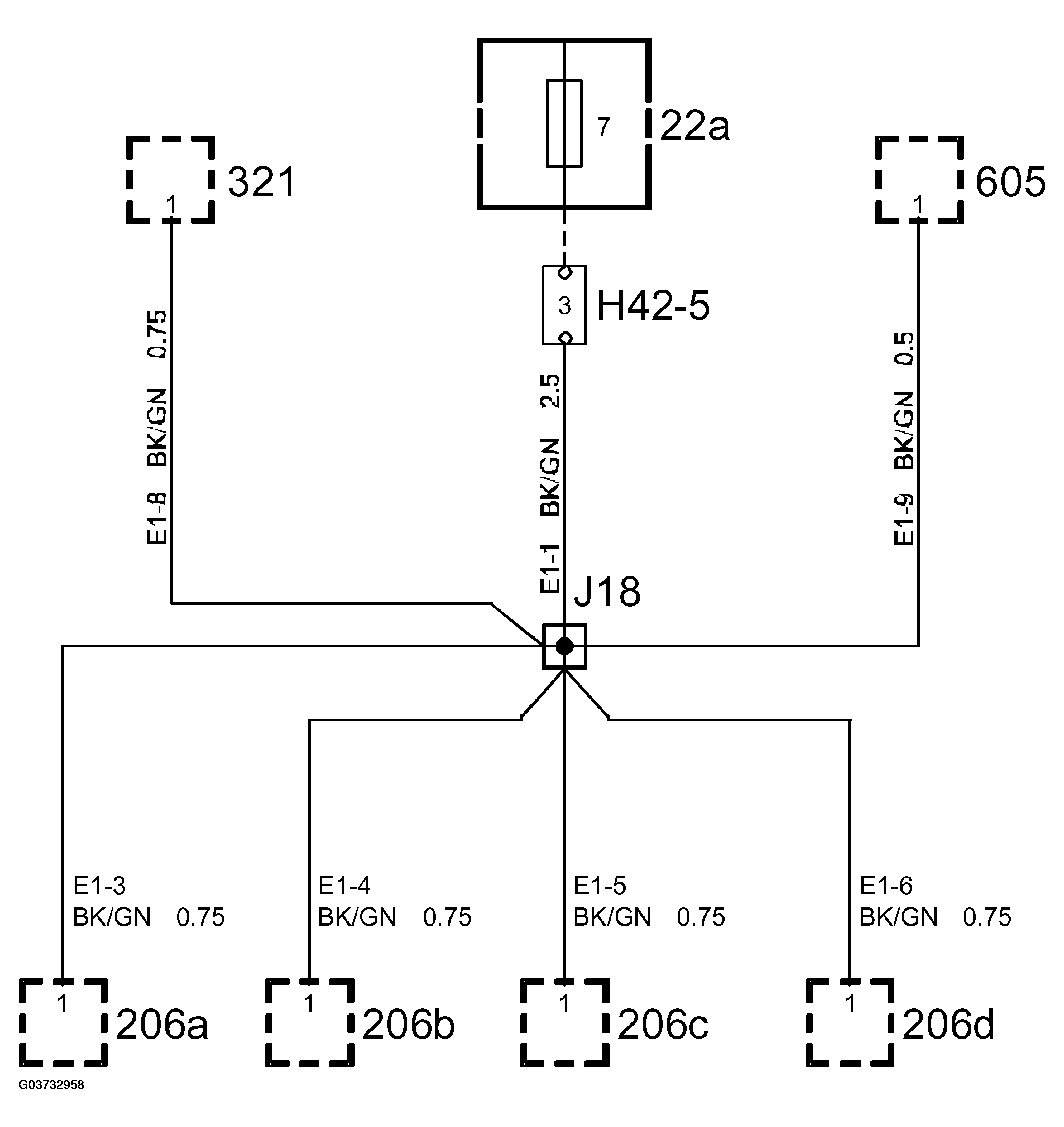

Fig 1: Petrol Engine Harness Circuit Diagram - Crimp J18
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
