Home › Saab › 2004 › 9-5 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T7 Fuel Control System › Component Location › Heated oxygen sensor 2 (592Ra)

Heated oxygen sensor 2 (592Ra)

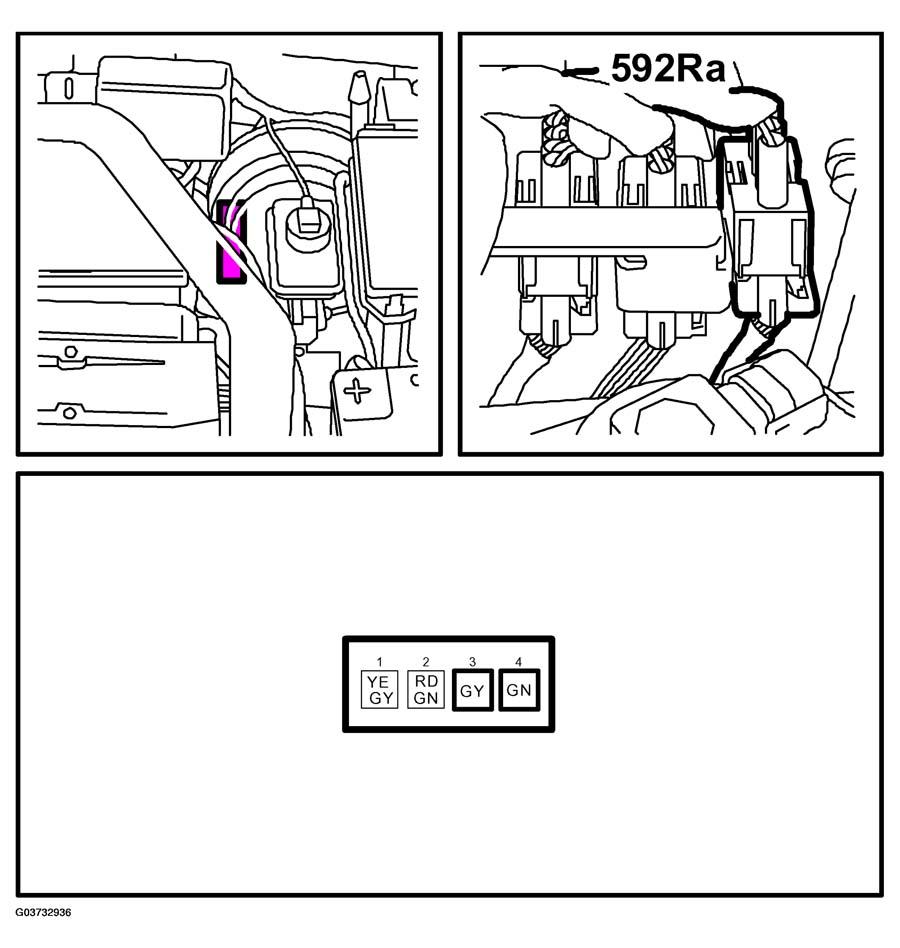

Fig 1: Identifying Heated Oxygen Sensor 2 Connector Pinout
G03732936Courtesy of SAAB-SCANIA OF AMERICA, INC.
