Injector, cylinder 2 (206b)

4 cylinder petrol

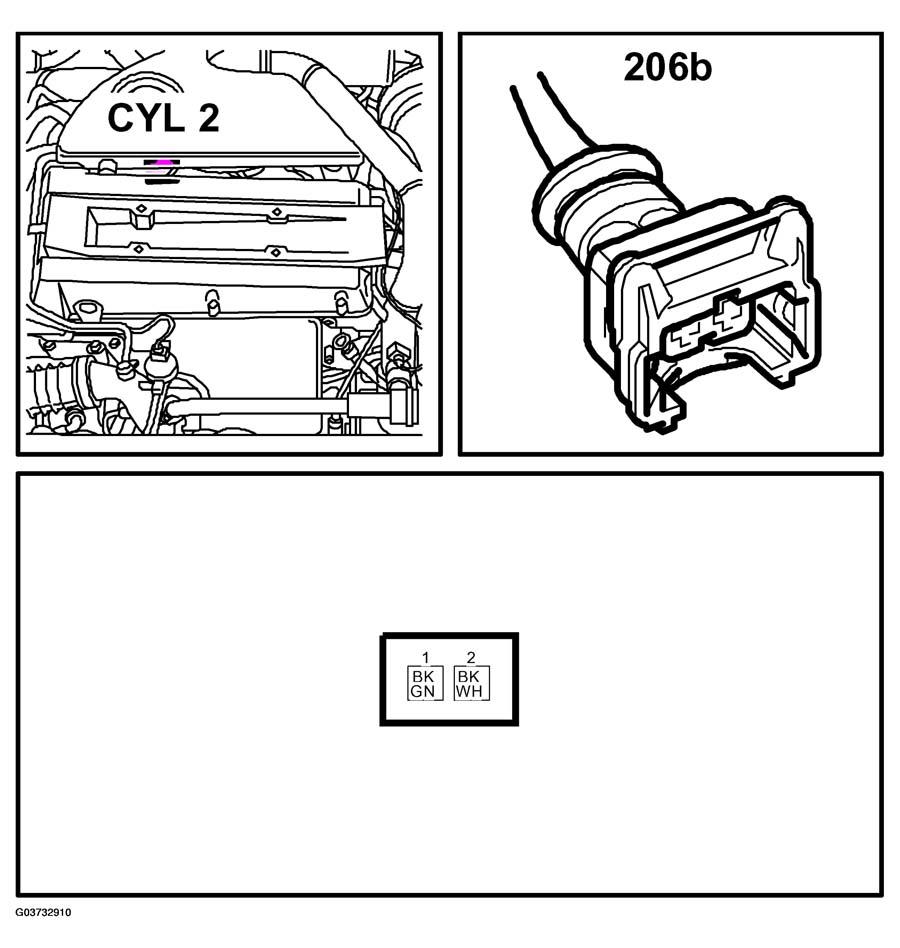

Fig 1: Identifying Cylinder 2 Injector (4 cylinder petrol) Connector Pinout

Courtesy of SAAB-SCANIA OF AMERICA, INC.

V6 diesel

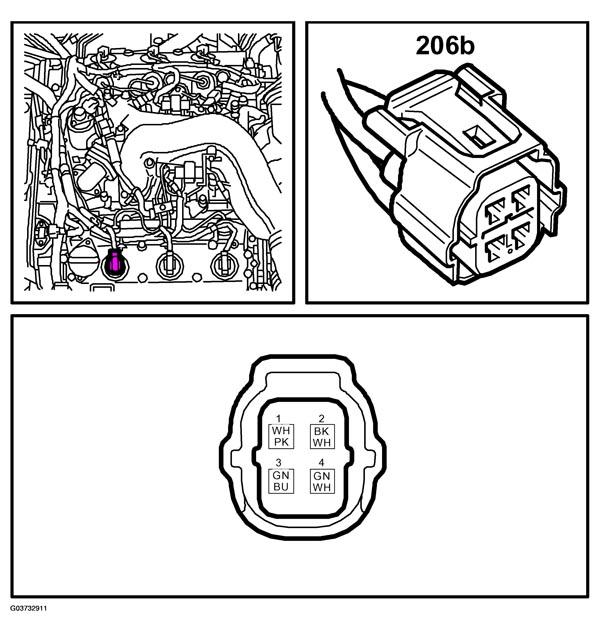

Fig 2: Identifying Cylinder 2 Injector (V6 diesel) Connector Pinout

Courtesy of SAAB-SCANIA OF AMERICA, INC.
