Mass air flow sensor (205)

4 cylinder petrol

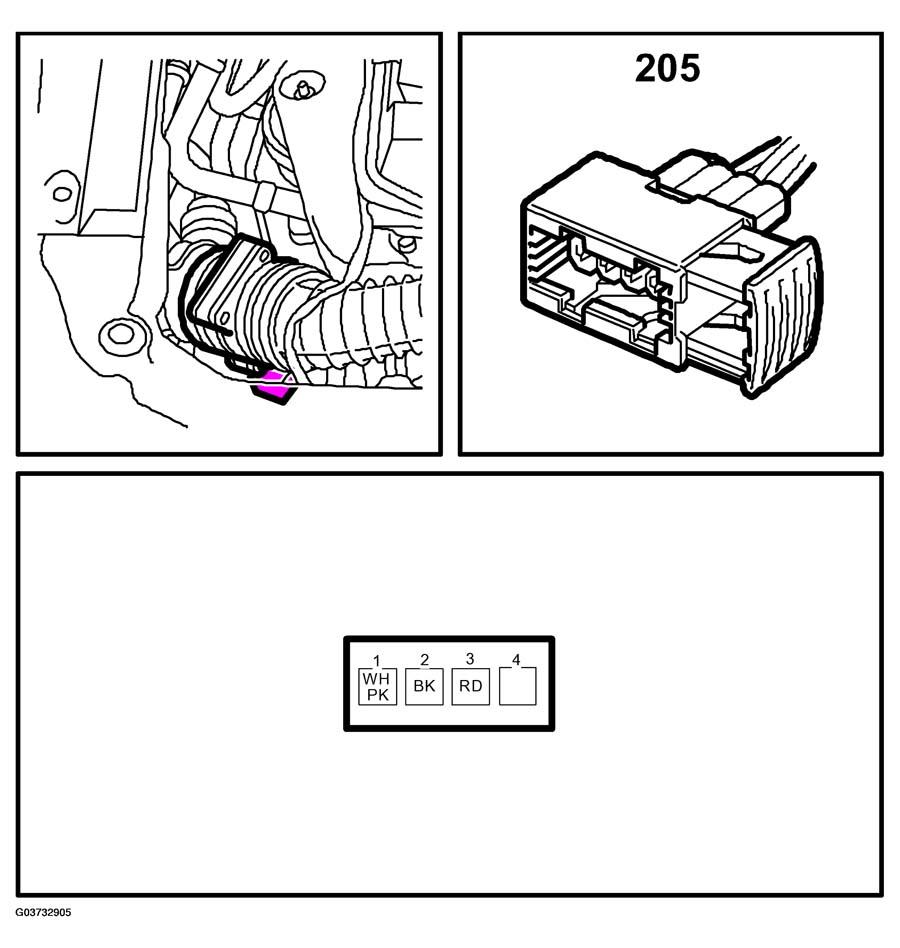

Fig 1: Identifying Mass Air Flow Sensor (4 Cylinder Petrol) Connector Pinout

Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

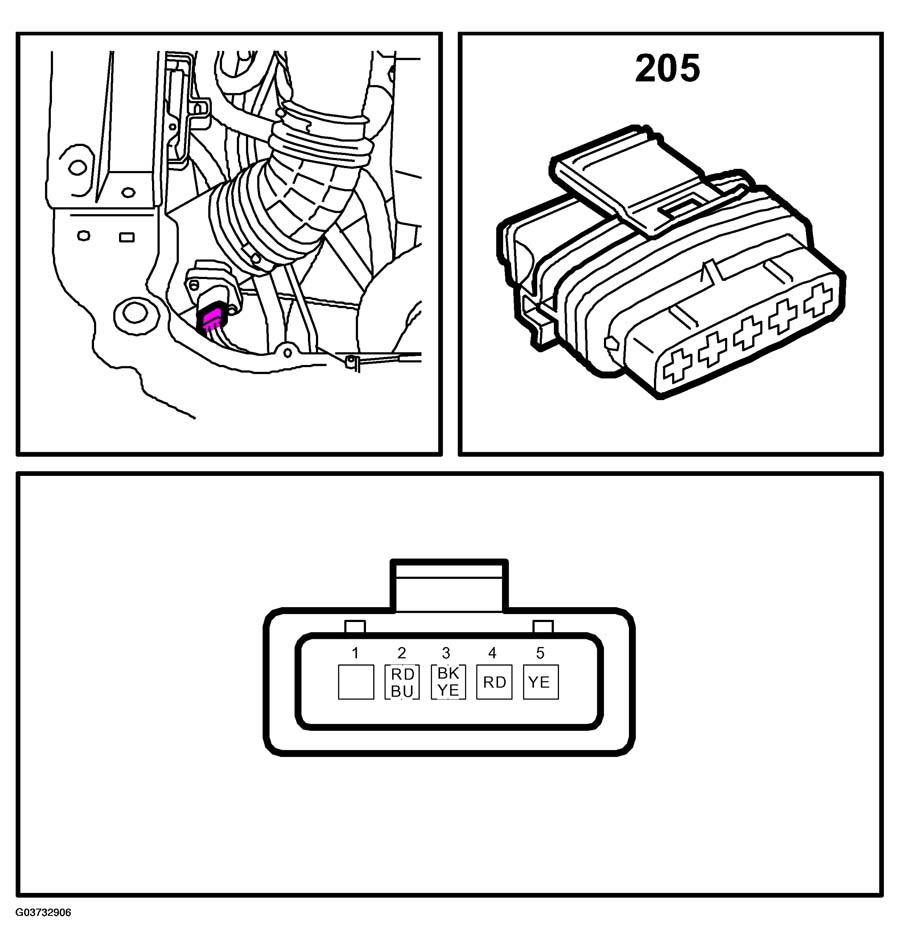

Fig 2: Identifying Mass Air Flow Sensor (4-Cyl Diesel) Connector Pinout

Courtesy of SAAB-SCANIA OF AMERICA, INC.

V6 diesel

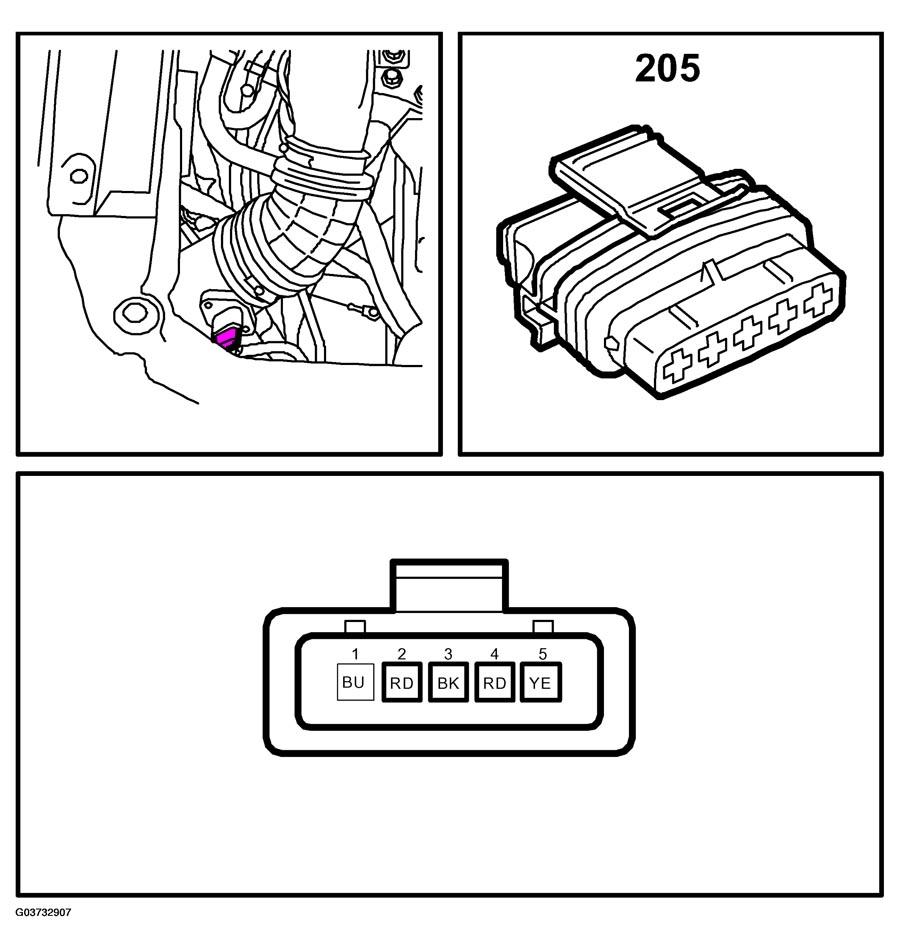

Fig 3: Identifying Mass Air Flow Sensor (V6 Diesel) Connector Pinout

Courtesy of SAAB-SCANIA OF AMERICA, INC.
