TRIONIC T7 Fuel Control System
›
Component Location
›
Pressure sensor, EVAP (585)
Pressure sensor, EVAP (585)

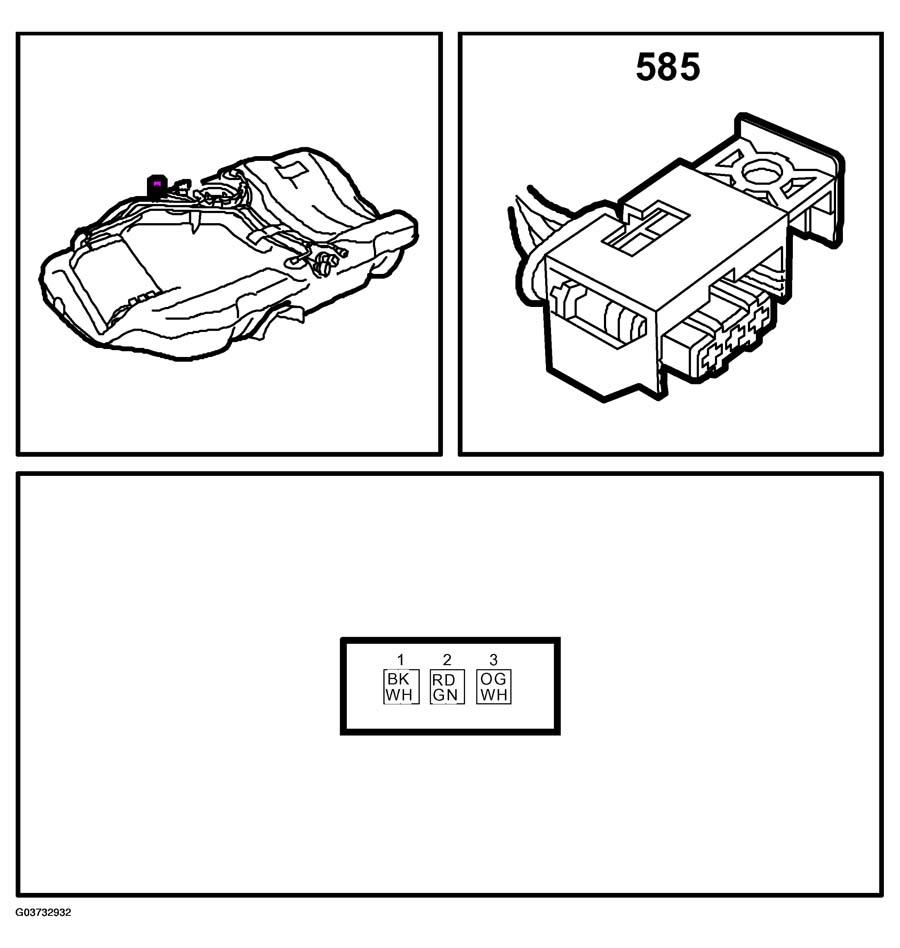

Fig 1: Identifying EVAP Pressure Sensor Connector Pinout
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
