Relay, fuel pump (102)

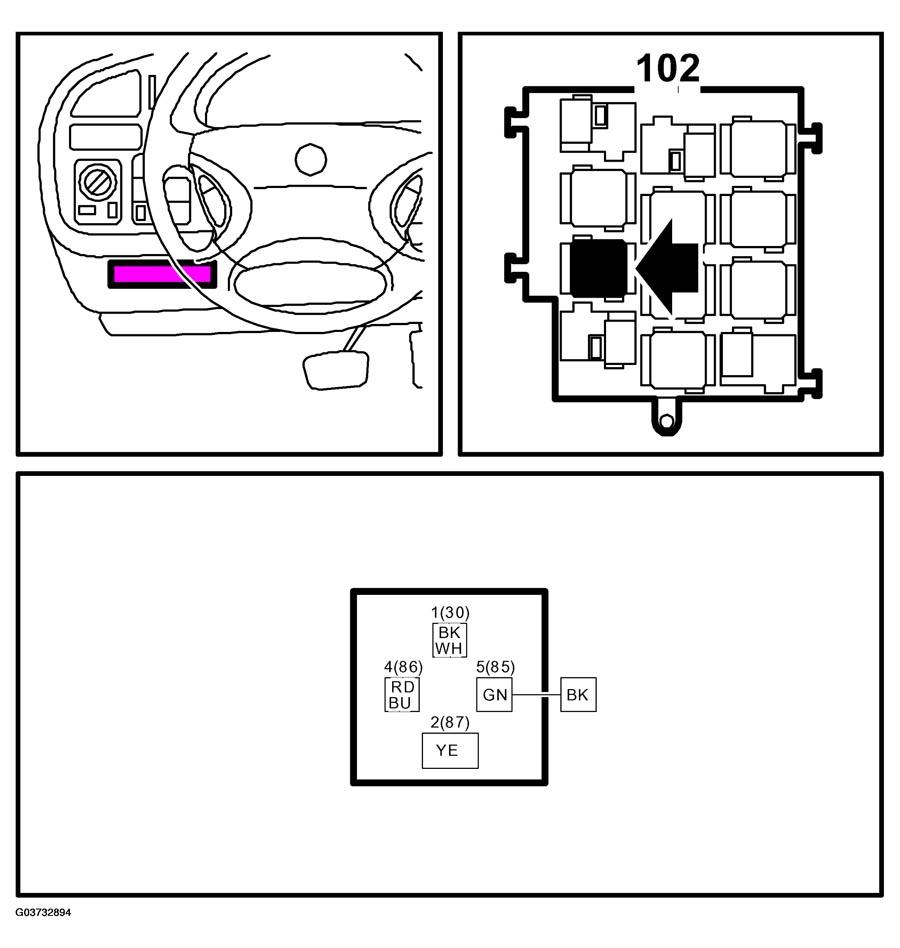

Fig 1: Identifying Fuel Pump Relay
G03732894Courtesy of SAAB-SCANIA OF AMERICA, INC.
