TRIONIC T7 Fuel Control System
›
Component Location
›
Temperature sensor, coolant (202)
Temperature sensor, coolant (202)
4 cylinder petrol
Fig 1: Identifying Coolant Temperature Sensor (4 Cylinder Petrol) Connector Pinout
Courtesy of SAAB-SCANIA OF AMERICA, INC.
4-cyl diesel

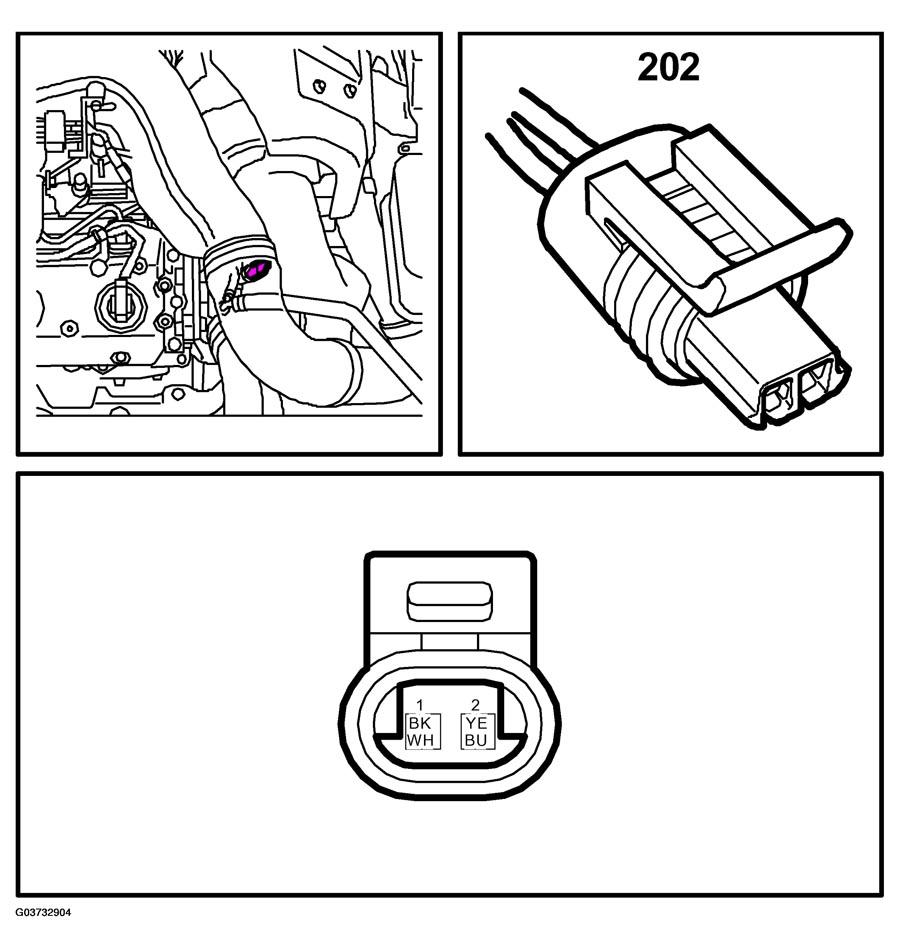

Fig 2: Identifying Coolant Temperature Sensor (4-Cyl Diesel) Connector Pinout
Courtesy of SAAB-SCANIA OF AMERICA, INC.
V6 diesel

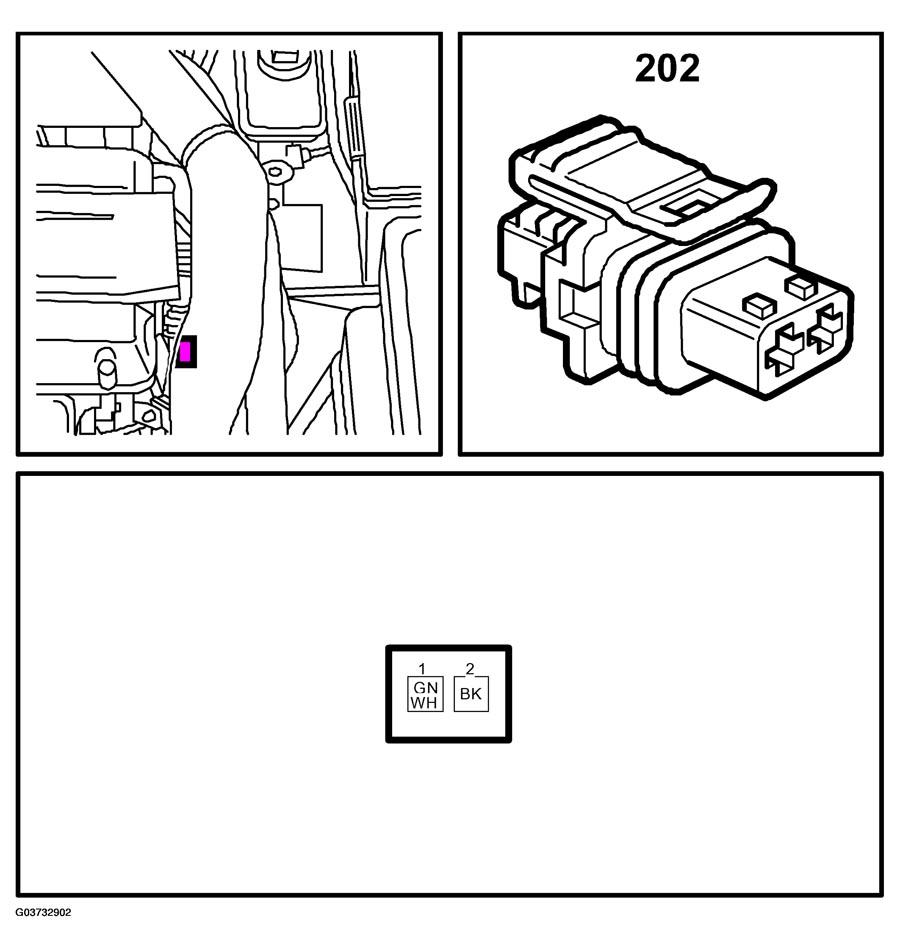

Fig 3: Identifying Coolant Temperature Sensor (V6 Diesel) Connector Pinout
Courtesy of SAAB-SCANIA OF AMERICA, INC.
